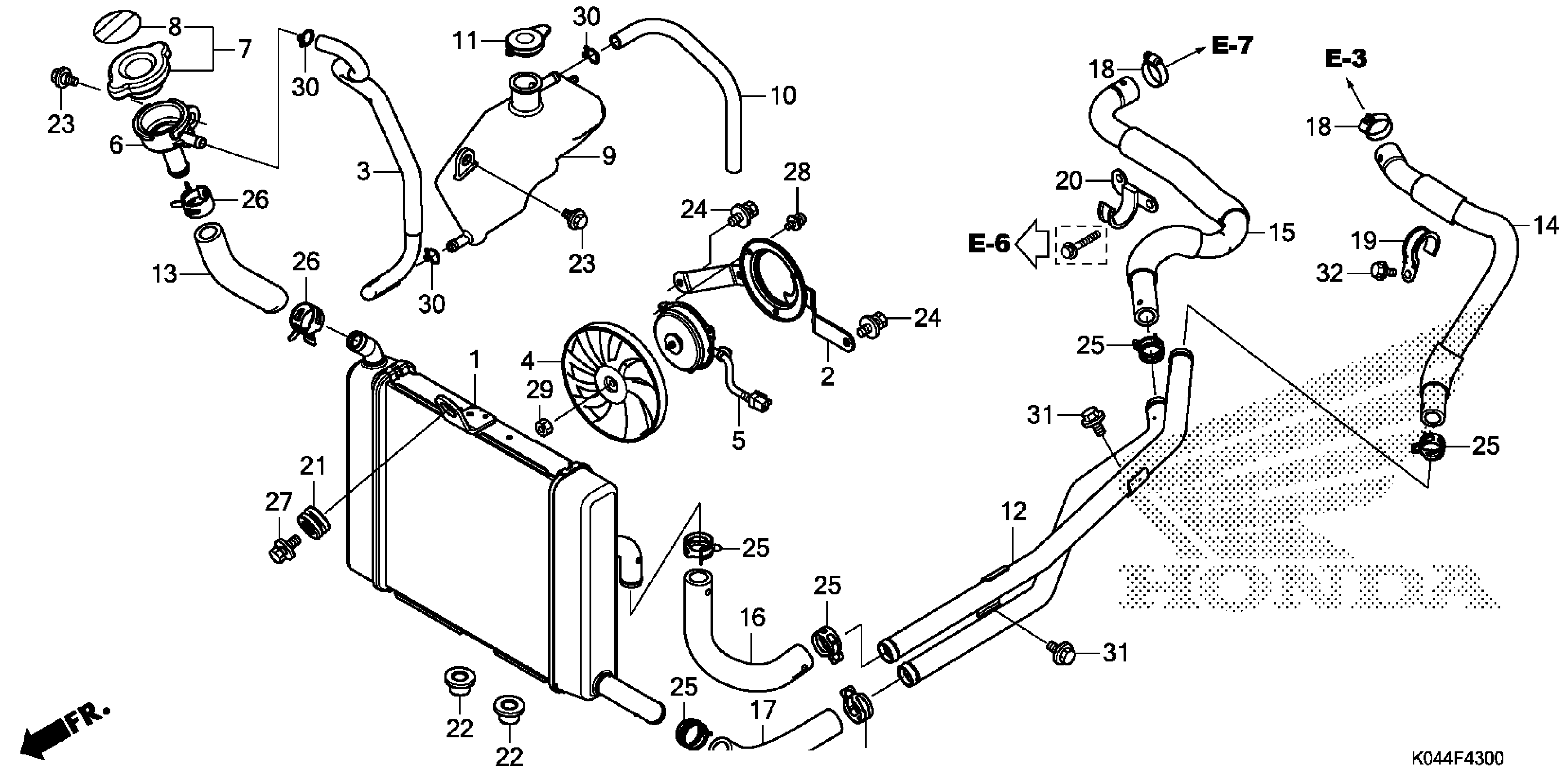

Honda NSS300AC (16) MOTOR SCOOTER, THA, VIN# MLHNF040-G5200001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO) (TOYO)

19010-K04-305

$120.09

2

SHROUD

19015-K04-931

$10.71

3

TUBE, FILLER

19017-K04-930

$11.99

4

FAN, COOLING

19020-KVZ-631

$26.32

5

MOTOR ASSY., FAN (TOYO)

19030-K04-931

$94.22

6

NECK, FILLER

19035-K04-931

$27.23

7

CAP, RADIATOR

19037-GEE-710

$27.19

8

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

9

TANK, RESERVE (COO)

19101-K04-305

$174.62

10

TUBE, RESERVE TANK

19102-K04-930

$6.58

11

CAP, RESERVE TANK

19109-KBP-900

$1.45

12

PIPE, WATER

19120-K04-930

$15.43

13

HOSE, FILLER

19126-K04-930

$5.39

14

HOSE A, WATER

19501-K04-930

$22.93

15

HOSE B, WATER

19502-K04-930

$33.81

16

HOSE C, WATER

19503-K04-930

$9.74

17

HOSE D, WATER

19504-K04-930

$8.01

18

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

18

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

Unavailable

19

CLAMP A, WATER HOSE

19531-KTW-900

$2.12

20

CLAMP B, WATER HOSE

19532-KTW-900

$6.70

21

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

22

BOOTS, BODY COVER

64415-KGH-900

$0.90

23

BOLT, FLANGE (6MM)

90116-KVB-900

$0.90

24

BOLT-WASHER (6X12)

90120-GHB-601

$1.75

25

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$0.75

26

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.14

27

BOLT-WASHER (6X12)

93404-06012-00

$1.48

28

SCREW-WASHER (4X6)

93891-04006-07

$1.04

29

NUT, FLANGE (3MM)

90315-MFL-003

$2.12

30

CLIP, TUBE (B12)

95002-02120

Unavailable

31

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.14

32

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81
