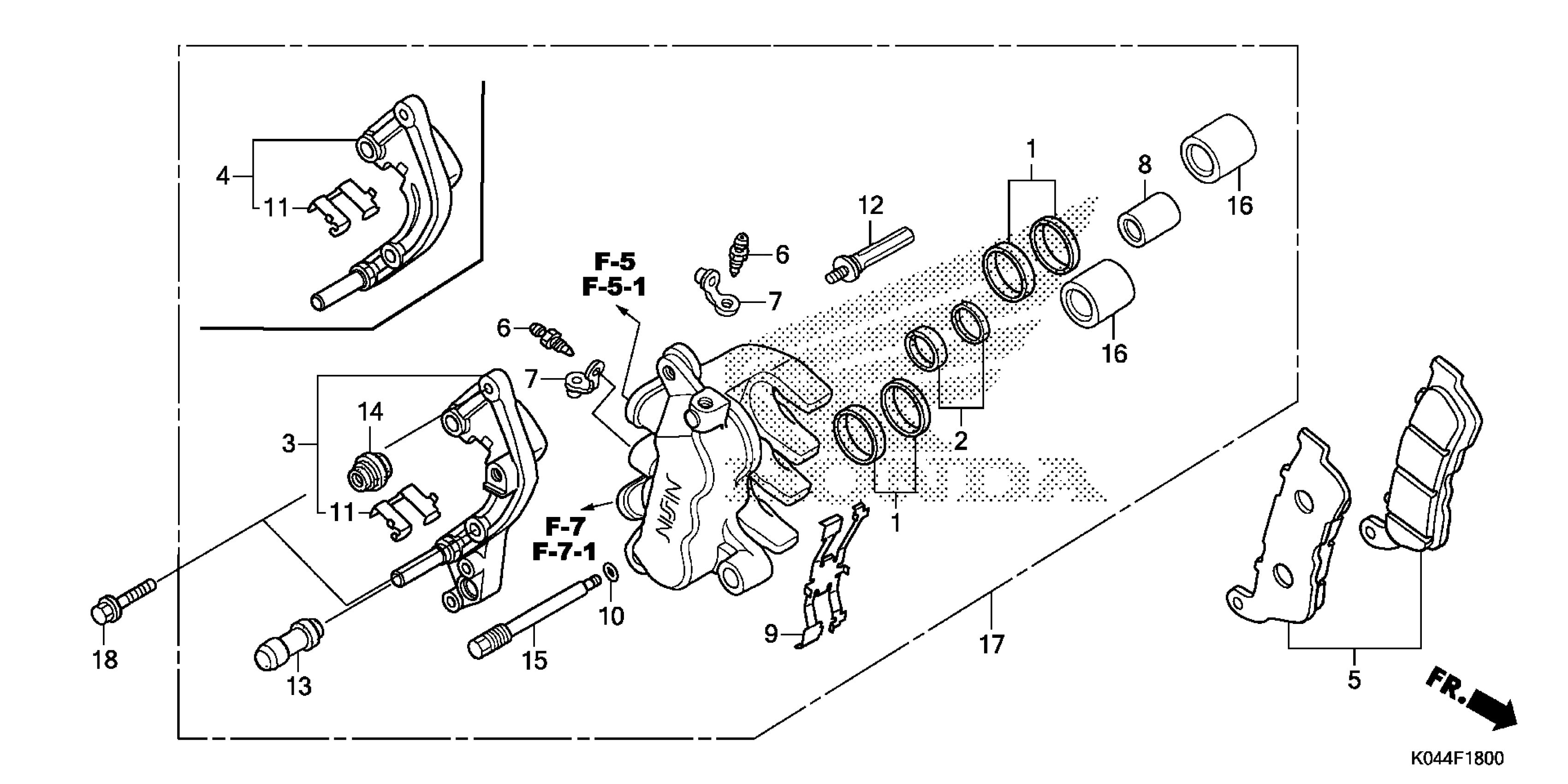

Honda NSS300AC (16) MOTOR SCOOTER, THA, VIN# MLHNF040-G5200001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

BRACKET SUB-ASSY., R. FR.

06453-MCW-H01

$82.62

PAD SET, FR This part replaces 06455-K04-701.

06455-K04-702

$42.65

PAD SET, FR

06455-K04-702

$42.65

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PIN, HANGER

45215-MBT-D51

$6.38

PISTON B (27X35)

45218-MAJ-G41

$36.21

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-KVZ-631

$861.26

BOLT, FLANGE (8X32)

90107-MT3-003

Unavailable
