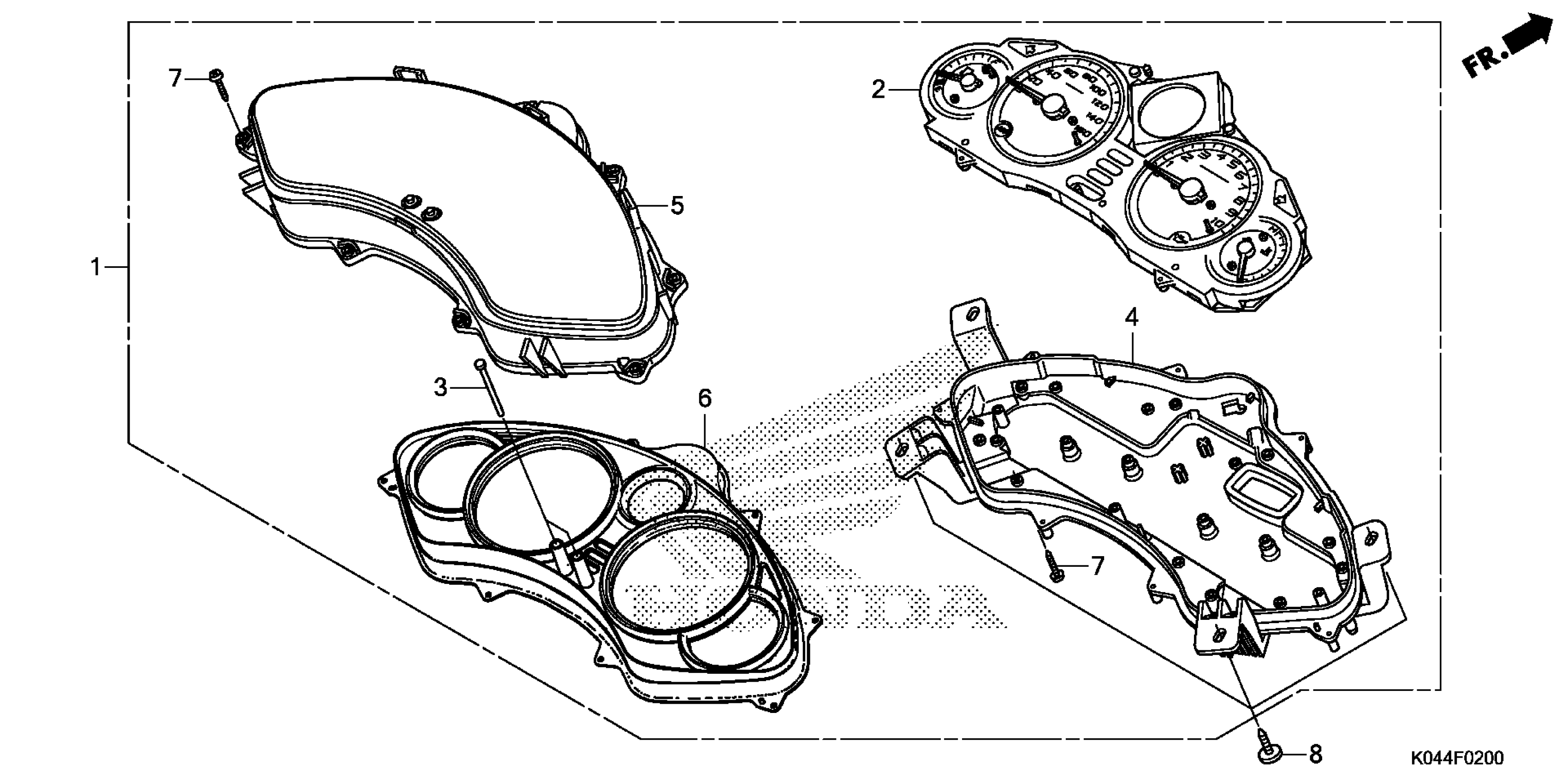

Honda NSS300AC (16) MOTOR SCOOTER, THA, VIN# MLHNF040-G5200001 COMBINATION METER Diagram

#

Description

Price

1

METER ASSY., COMBINATION (MPH/KPH)(COO)

37100-K04-305

$469.26

2

METER, COMBINATION (COO)

37110-K04-305

$405.23

3

ROD, SWITCH EXTENSION

37202-KSV-J20

$7.97

4

CASE (LOWER)

37211-KSV-J20

$66.43

5

LENS ASSY. (COO)

37212-K04-305

$29.42

6

PLATE ASSY., REFLECTING

37213-K04-931

$48.96

7

SCREW, TAPPING (3X16)

93903-22420

$0.90

8

SCREW, TAPPING (5X16)

93903-35320

$0.75
