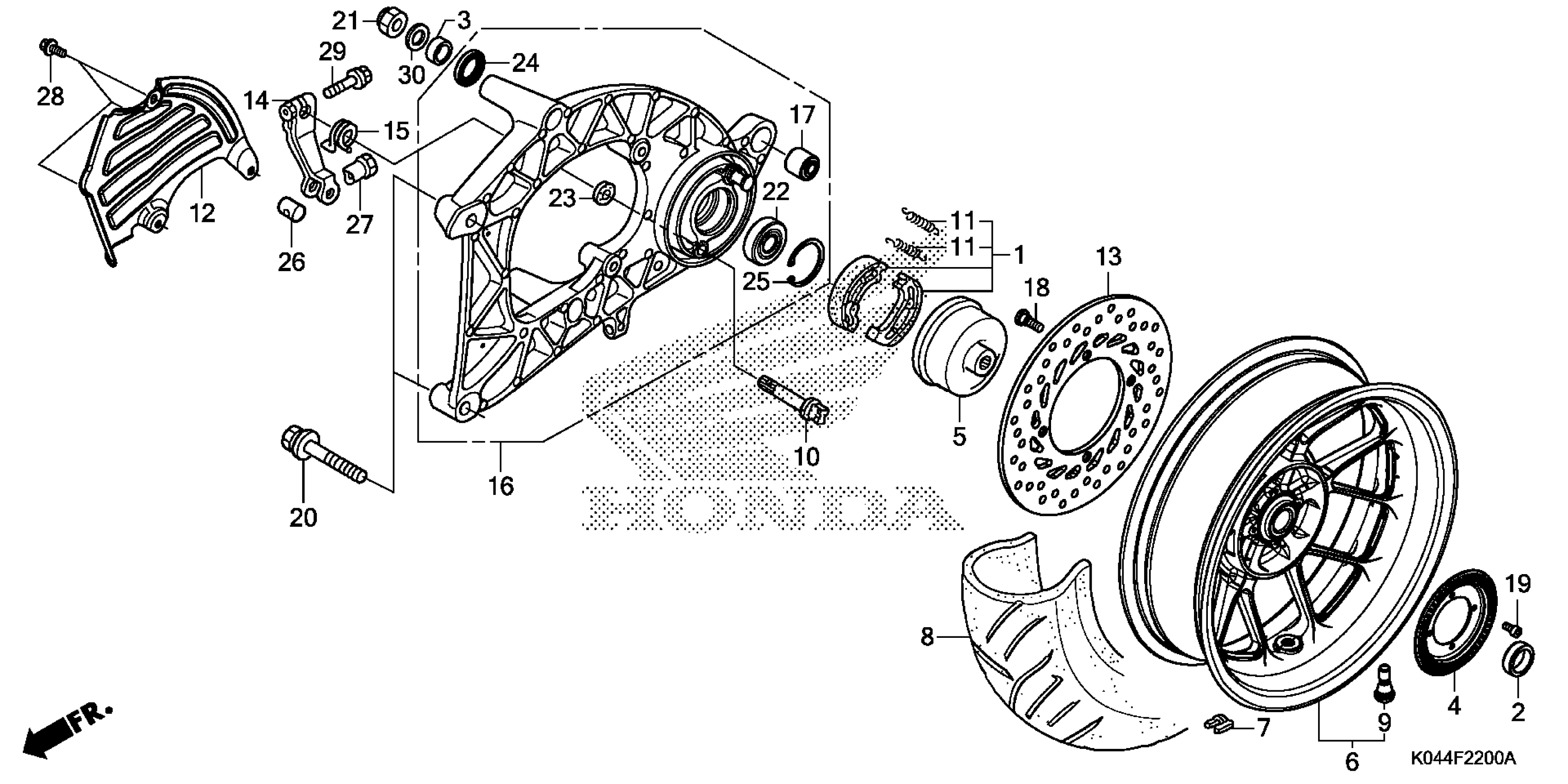

Honda NSS300AC (14) MOTOR SCOOTER, THA, VIN# MLHNF040-E5000001 TO MLHNF040-E5099999 REAR WHEEL@SWINGARM (AC) Diagram

SHOE SET, BRAKE

06430-KVZ-630

$55.95

COLLAR, RR. WHEEL SIDE

42311-KSV-J00

$20.43

COLLAR B, RR. AXLE

42312-K04-930

$4.61

HUB, PARKING BRAKE

42610-K04-902

$34.51

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 42650-K04-325ZA.

42650-K04-335ZA

$293.13

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC)

42650-K04-335ZA

$293.13

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

TIRE,RR(DUN) This part replaces 42711-K04-931.

42711-K04-932

$93.61

TIRE,RR(DUN)

42711-K04-932

$93.61

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$1.49

VALVE, RIM

42753-K38-901

$1.49

CAM, PARKING BRAKE

43141-K04-900

$38.61

SPRING, BRAKE SHOE

43151-GC4-000

$4.76

PROTECTOR, RR. BRAKE HOSE

43156-K04-930

$33.62

DISK, RR. BRAKE (NHK PRECISION)

43251-K04-931

$132.82

ARM, PARKING BRAKE

43410-K04-900

$5.23

SPRING, PARKING ARM

43472-KSV-J00

$4.72

SWINGARM ASSY.

52100-K04-900

$234.69

BUSH, DAMPER

52108-KTW-B00

$20.69

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.90

BOLT-WASHER (10X60)

90132-KSV-J00

$3.41

NUT, U (16MM)

90305-KWN-701

$5.65

BEARING, RADIAL BALL (6303) BEARING, RADIAL BALL (6303UU)

91051-KS4-003

$38.31

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

DUST SEAL (37X25X6)

91258-HB3-003

$7.25

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

JOINT A, BRAKE ARM

95015-31001

$1.53

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

WASHER (16MM)

90505-K04-930

$4.75
