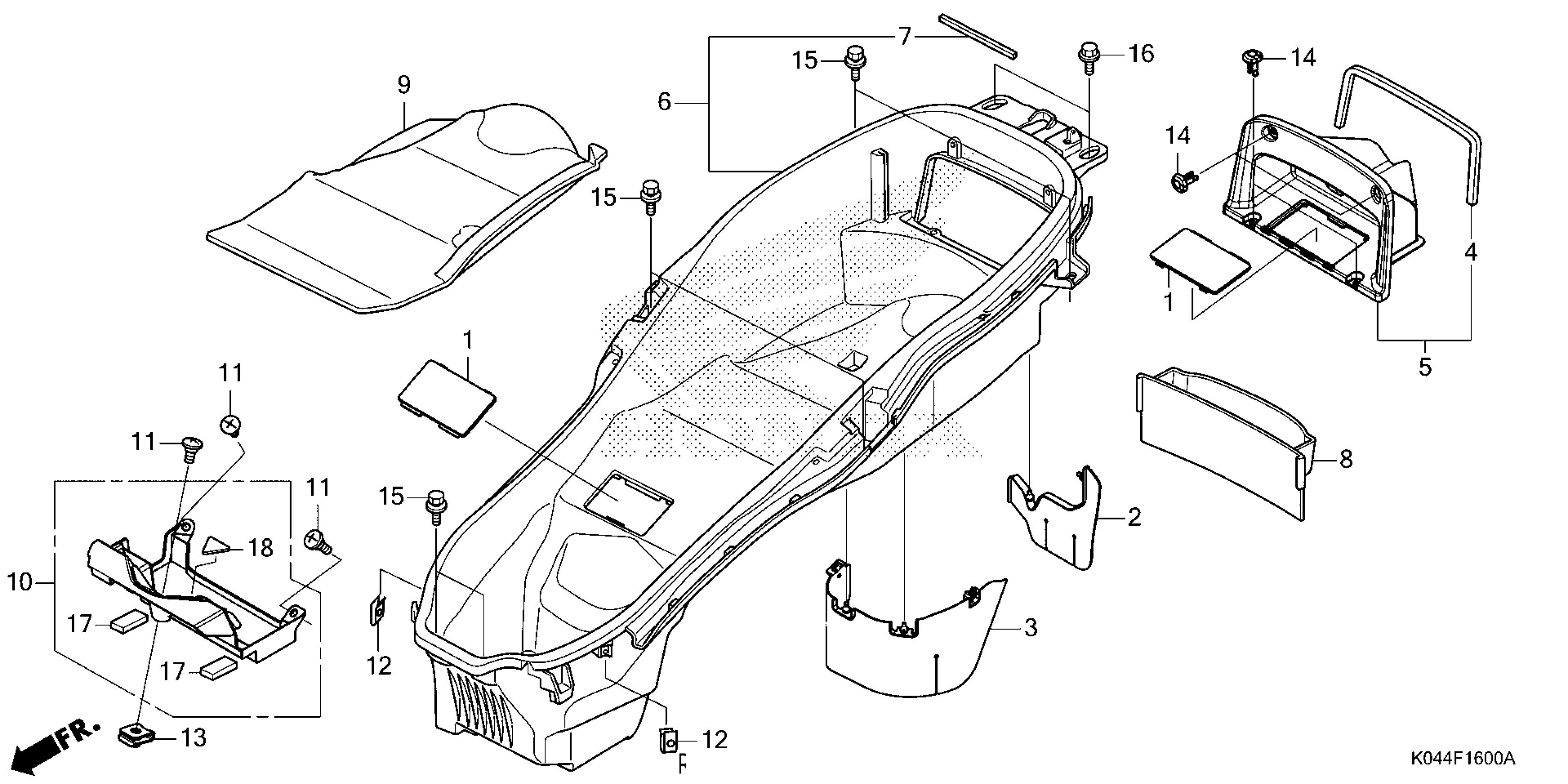

Honda NSS300AC (14) MOTOR SCOOTER, THA, VIN# MLHNF040-E5000001 TO MLHNF040-E5099999 LUGGAGE BOX Diagram

LID, RESERVE TANK MAINTENANCE

64322-K04-930

$1.75

SPLASH GUARD B

80103-K04-930

$5.07

SPLASH GUARD

80104-K04-930

$9.01

SEAL, TOOL BOX

80121-K04-930

$4.22

BOX ASSY., TOOL

80130-K04-930

$10.54

BOX, LUGGAGE

81260-K04-930

$162.19

SEAL, LUGGAGE BOX

81262-K04-930

$0.74

BOX, OWNER'S MANUAL

81264-K04-930

$22.70

MAT, LUGGAGE BOX (RR)

81272-K04-930

$29.09

LID, BATTERY

81300-K04-930

$7.54

SCREW, BATTERY LID

90112-K04-930

$0.78

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

NUT, CLIP (6MM)

90305-GEE-710

$1.48

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.54

BOLT-WASHER (6X12)

93404-06012-07

$1.48

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.48

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

CUSHION,BATT.A

50391-KVB-900

$0.52

CUSHION, HELMET (NOT AVAILABLE)

81311-K04-930

Unavailable
