Description

Price

1

PIN (10X44)

28102-ME9-000

$9.23

2

GEAR, STARTER DRIVEN (52T)

28110-K04-930

$134.58

3

GUIDE, STARTING DRIVEN GEAR

28115-KTW-900

$3.41

4

GEAR, STARTER REDUCTION (62T/13T)

28131-K04-930

$33.86

5

STARTER MOTOR ASSY. (MITSUBA)

31200-KTW-B01

$190.58

6

BRUSH SET A, CARBON (Honda Code 8476772)

31201-MEW-921

$7.25

7

BRUSH SET B, CARBON (Honda Code 8476780)

31202-MEW-921

$11.74

8

HOLDER, BRUSH (Honda Code 8614117)

31203-MEW-921

$6.96

9

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$11.33

10

BOLT, SETTING

31205-HP5-601

$2.73

11

BOLT, TERMINAL

31206-MEW-921

$2.67

12

RING

31207-HP5-601

$1.96

13

INSULATOR (Honda Code 8476822)

31208-MEW-921

$6.97

14

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$10.35

15

WASHER

31210-MEW-921

$1.65

16

NUT-WASHER (6MM)

90071-MB0-000

$1.88

17

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

17

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

18

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

19

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

20

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

21

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

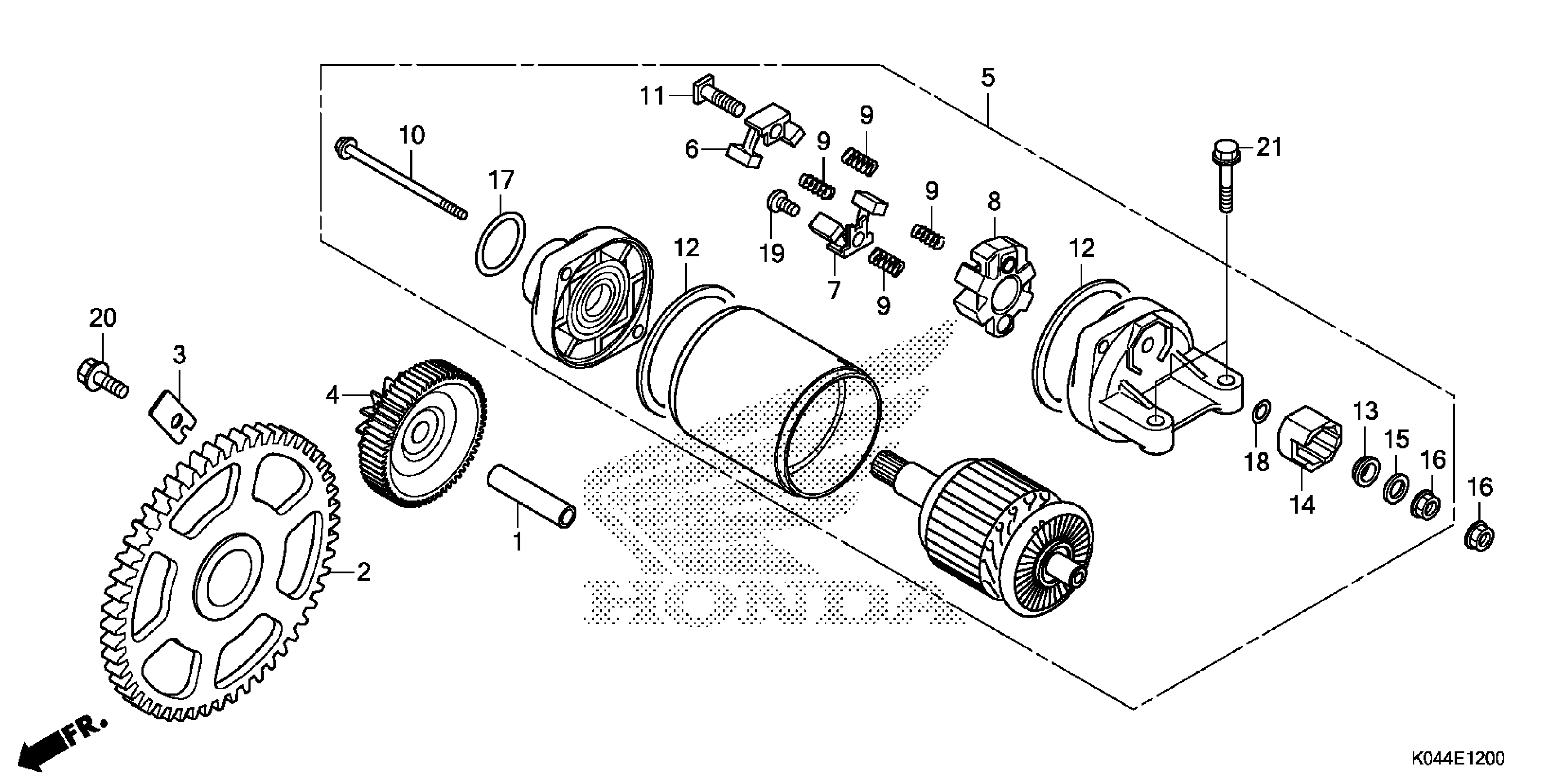

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 STARTER MOTOR Diagram
