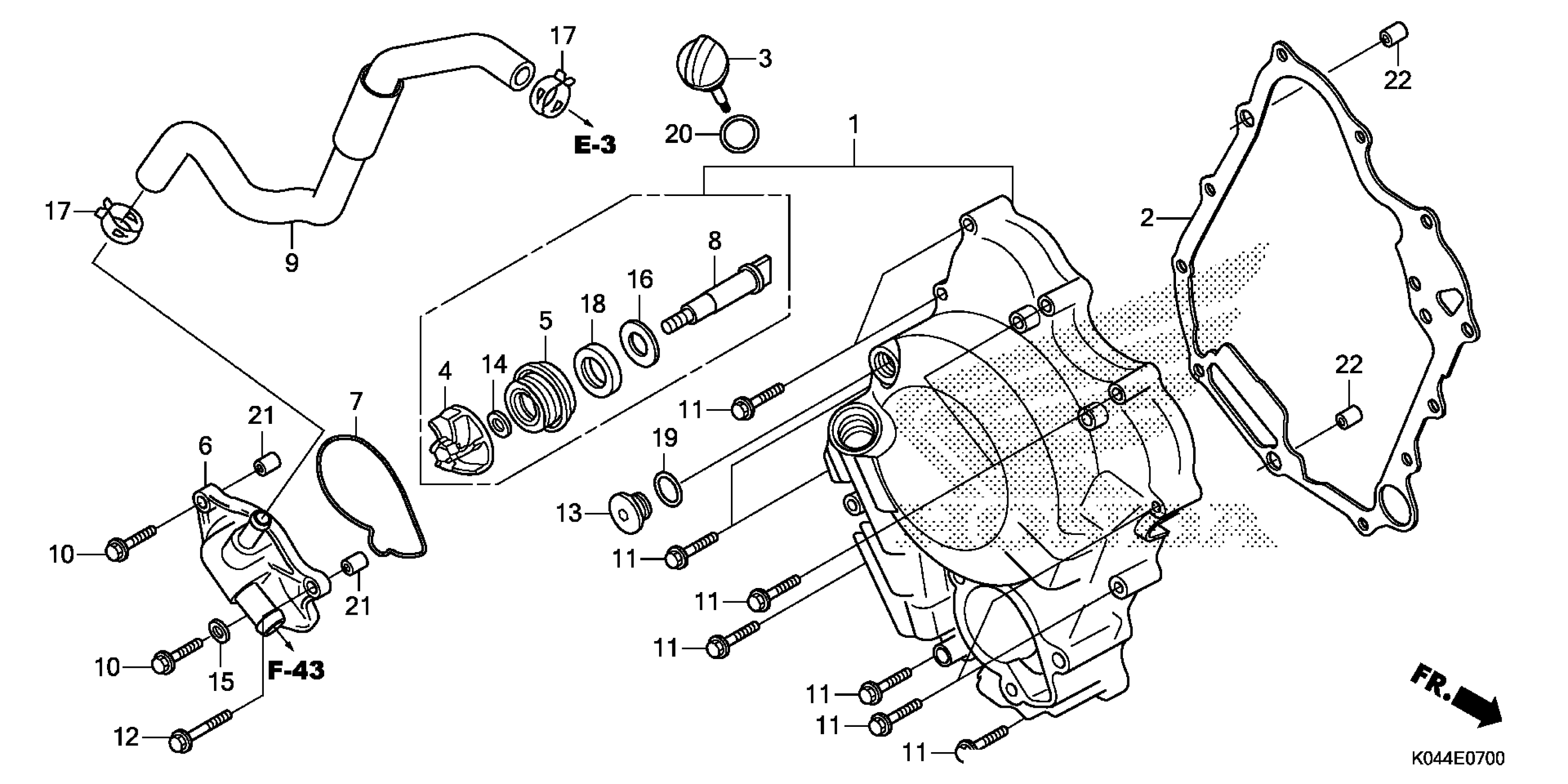

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 RIGHT CRANKCASE COVER @WATER PUMP Diagram

COVER ASSY., R.

11300-K04-931

$221.51

GASKET, R. This part replaces 11394-KTW-901.

11394-KTW-902

$27.44

GASKET, R.

11394-KTW-902

$27.44

DIPSTICK, OIL

15651-K04-930

$5.26

IMPELLER, WATER PUMP

19215-KTW-900

$48.56

SEAL, MECHANICAL

19217-MAL-300

$53.03

COVER, WATER PUMP

19220-K04-930

$83.48

GASKET, WATER PUMP COVER

19226-KTW-900

$6.49

SHAFT, WATER PUMP

19241-K04-930

$19.38

HOSE, WATER BYPASS

19527-KTW-900

$40.62

BOLT, FLANGE (6X32) (NSHF)

90010-K04-930

$1.49

BOLT, FLANGE (6X40) (NSHF)

90011-K04-930

$1.49

BOLT, FLANGE (6X75) (NSHF)

90013-K04-930

$1.49

CAP (14MM)

90084-KWA-930

$10.39

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, THRUST (12X23X2)

90599-767-C10

$2.76

CLIP, HOSE

90678-MR1-690

$2.25

OIL SEAL (12X26X5)

91202-KTW-901

$10.46

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
