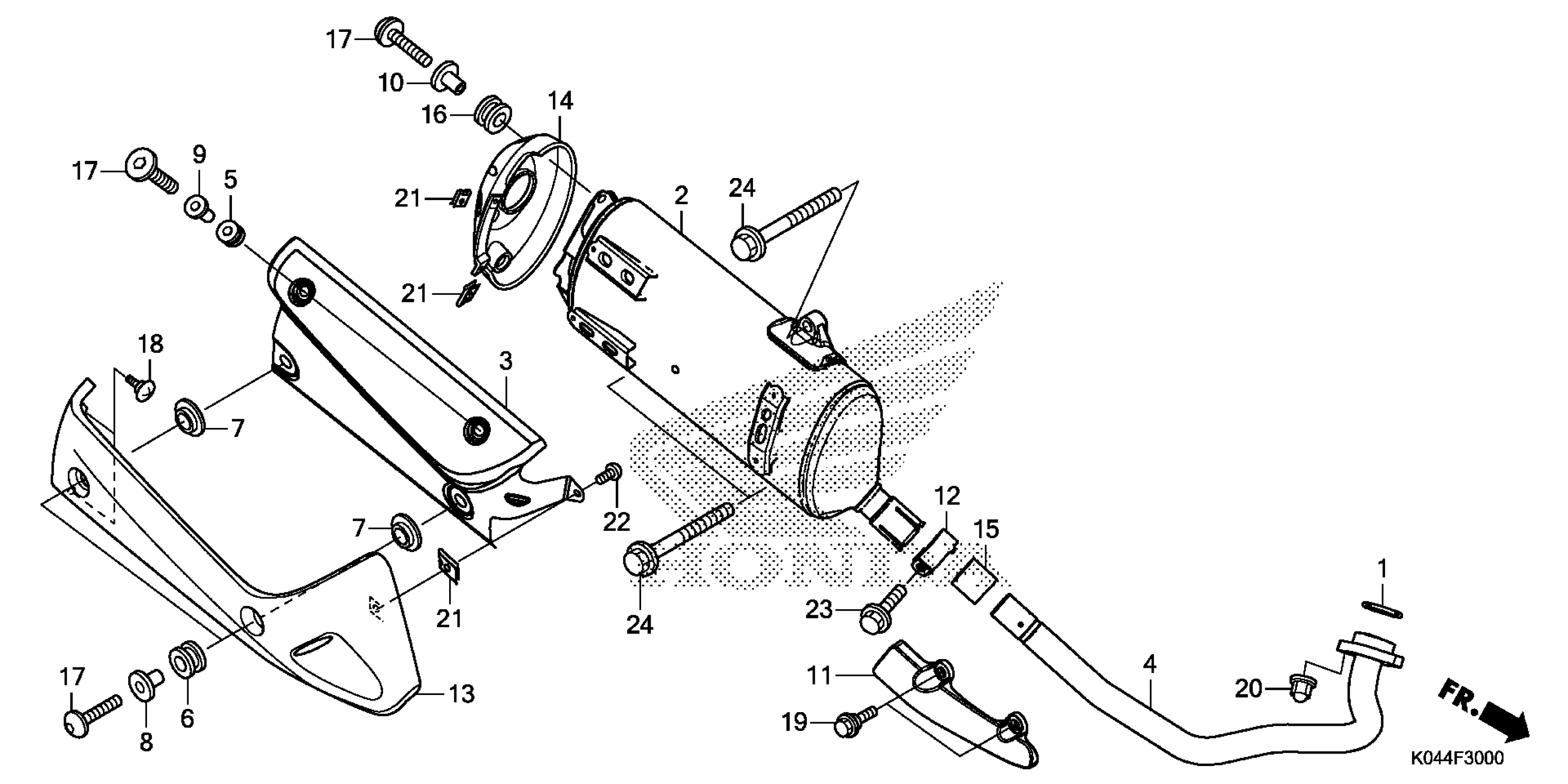

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

MUFFLER, EX. (COO)

18300-K04-305

$567.83

3

PROTECTOR A, MUFFLER

18318-K04-930

$79.90

4

PIPE, EX.

18320-K04-930

$104.97

5

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

6

RUBBER, PROTECTOR MOUNTING

18346-KTW-900

$2.52

7

COLLAR, PROTECTOR MOUNTING

18347-K04-930

$4.90

8

COLLAR, MUFFLER PROTECTOR

18348-K04-930

$3.19

9

COLLAR, PROTECTOR SETTING

18352-K04-930

$2.28

10

COLLAR, TAIL CAP MOUNTING

18353-K04-930

$0.80

11

PROTECTOR, EX. PIPE

18360-K04-930

$11.94

12

BAND, EX. PIPE

18373-K04-930

$21.22

13

PROTECTOR SUB-ASSY., MUFFLER

18380-KTW-900

$25.25

14

COVER SUB-ASSY., TAIL CAP (COO)

18381-K04-305

$27.12

15

GASKET, MUFFLER

18391-MN1-670

$19.76

16

RUBBER, RR. FENDER SETTING

80107-GE0-710

$2.88

17

SCREW, PAN (5X20)

90103-K04-930

$0.36

18

SCREW, SPECIAL (5MM)

90104-K04-930

$1.03

19

BOLT, SPECIAL (M6)

90107-KTW-900

$3.62

20

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.55

21

NUT, CLIP (5MM)

90677-KAN-961

$3.79

22

SCREW, PAN (5X12)

93500-05012-0A

$0.83

23

BOLT, FLANGE (8X35)

95701-08035-02

$1.88

24

BOLT, FLANGE (10X50)

95701-10050-07

$1.68
