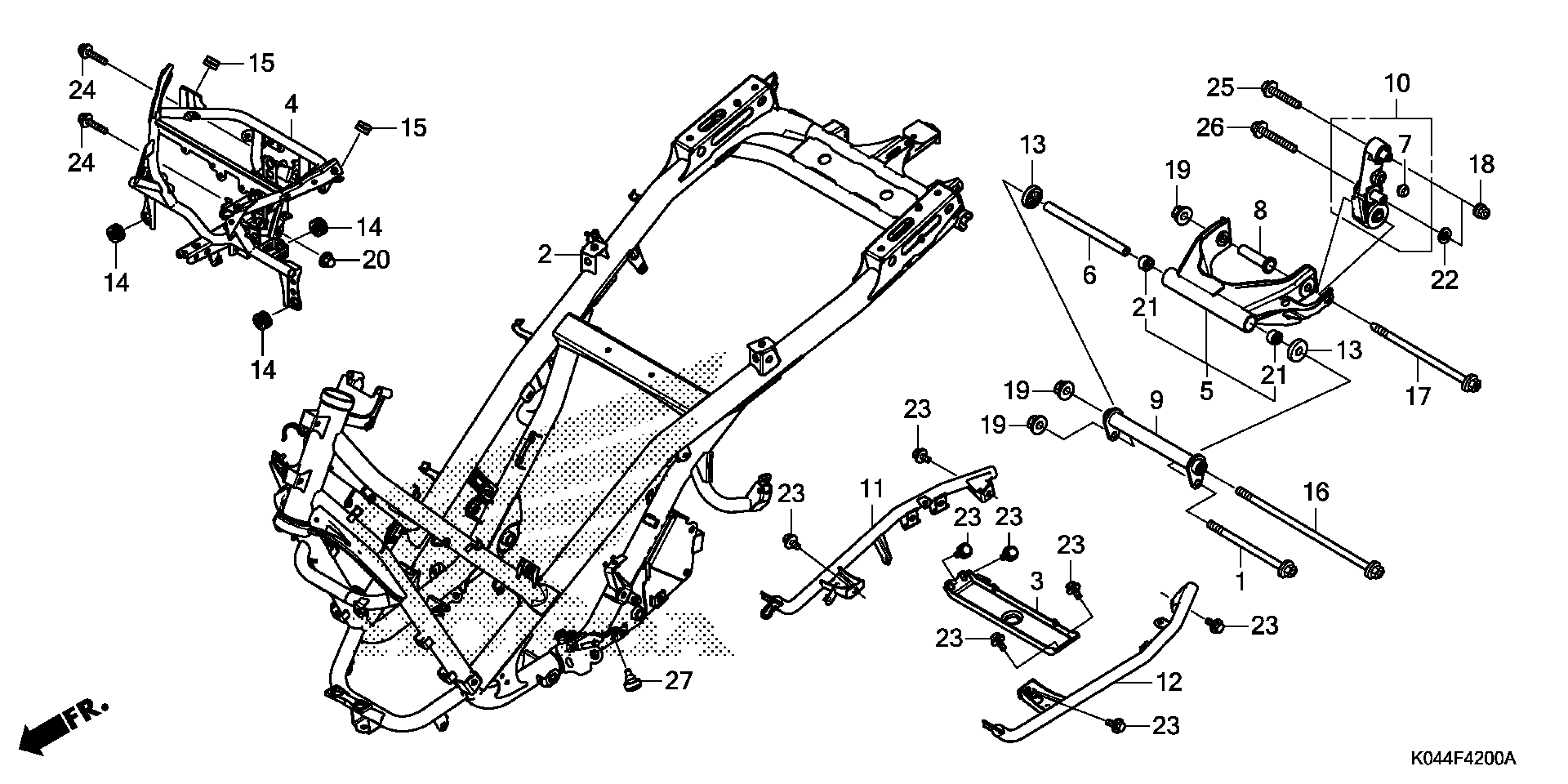

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 FRAME Diagram

AXLE, RR. WHEEL

42301-K04-930

$5.89

FRAME

50100-K04-930

$533.58

BRACKET, CENTER CROSS

50250-K04-930

$11.46

STAY, FR. COVER (ABS)

50310-K04-970

$126.61

BRACKET SUB-ASSY. B, ENGINE HANGER

50349-K04-930

$211.15

COLLAR B, ENG HGR This part replaces 50352-KTW-900.

50352-KTW-901

$23.29

RUBBER B, STOPPER

50354-428-000

$2.75

COLLAR, ENGINE PIVOT DISTANCE

50354-K04-930

$7.16

BRACKET ASSY. A, ENGINE HANGER

50360-K04-930

$137.72

ROD, SWING

50380-K04-930

$134.95

STAY, R. FLOOR

50610-K04-900

$44.93

STAY, L. FLOOR

50620-K04-930

$35.08

DUST SEAL (31X38.5X7) (NOK)

52144-GF5-003

$10.43

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.48

BOLT, FLANGE (12X360)

90101-K04-930

$20.25

BOLT, FLANGE (12X280)

90103-KTW-900

$32.30

NUT, U (10MM)

90304-KGH-901

$3.25

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

NUT, CAP (8MM)

90443-KTM-970

$1.49

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-KS6-004

$21.15

WASHER, PLAIN (10MM)

94102-10000

$1.49

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

BOLT, FLANGE (8X40)

95801-08040-00

$1.49

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99

BOLT, FLANGE (10X75)

95801-10075-00

$2.11

RUBBER, STAND STOPPER

50505-K04-930

$4.77
