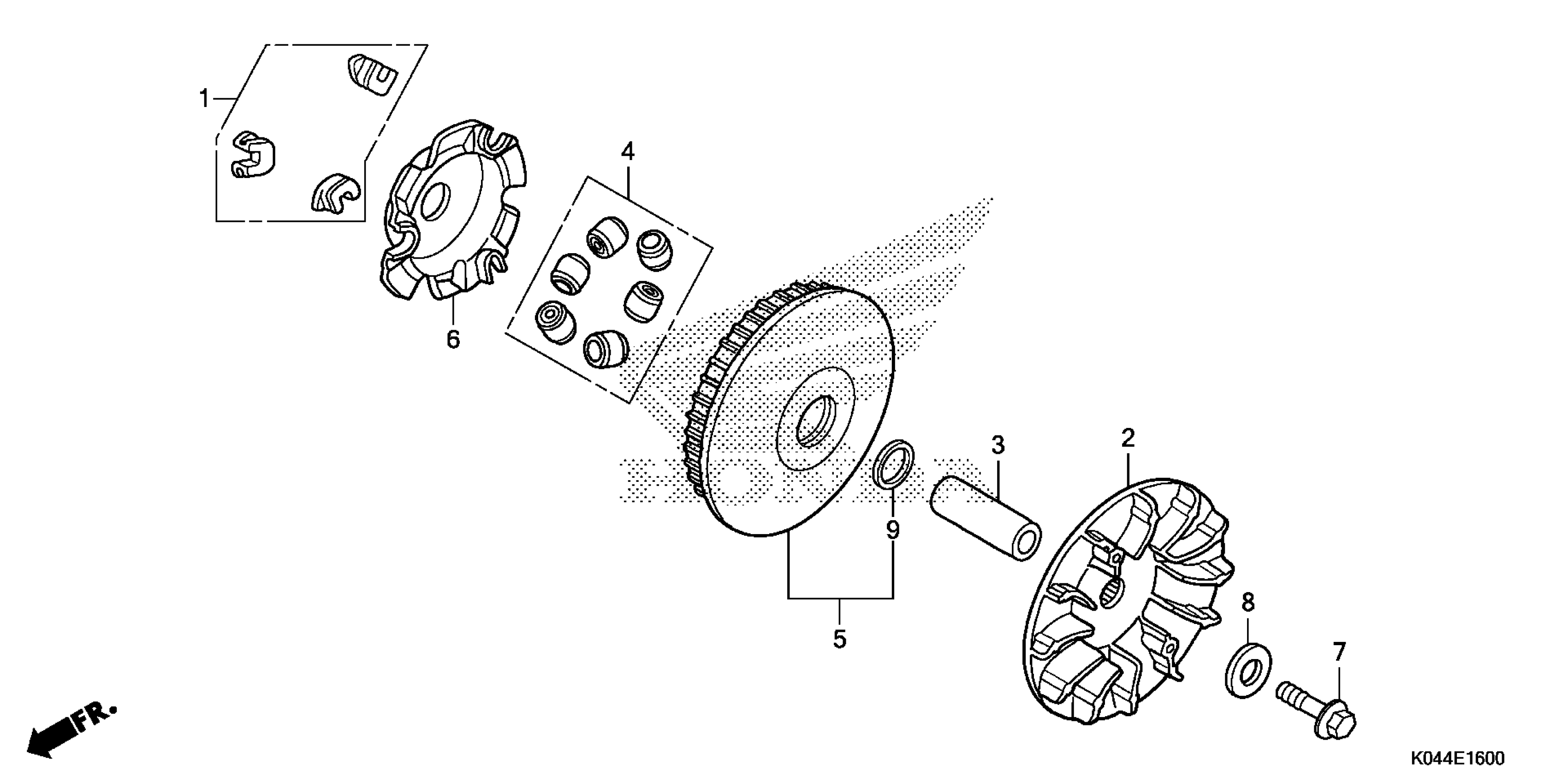

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 DRIVE FACE Diagram

#

Description
Price

1

PIECE SET, SLIDE

22011-KAB-000

$11.36

2

FACE, DRIVE

22102-KTW-900

$83.35

3

BOSS B, DRIVE FACE

22104-KSV-J20

$37.68

4

ROLLER SET, WEIGHT

22123-KVZ-640

$16.61

5

FACE B, MOVABLE DRIVE

22130-KTW-901

$152.41

6

PLATE, RAMP

22131-KTW-900

$62.42

7

BOLT, FLANGE (10MM)

90023-MV9-670

$10.05

8

WASHER (10.5X29X4)

90401-KTW-900

$4.65

9

OIL SEAL (30X37X3.5)

91203-KSV-J21

$13.48
