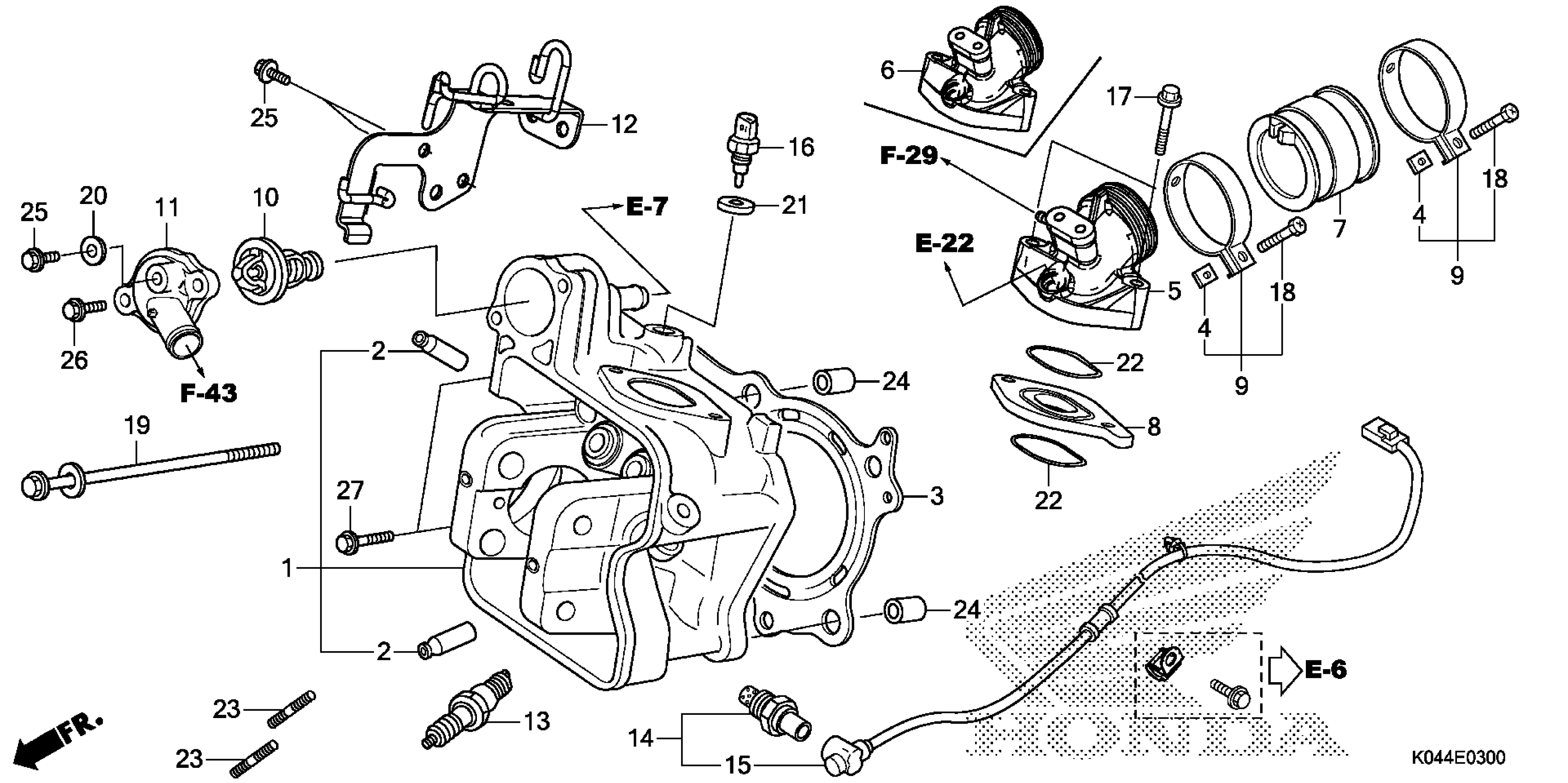

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-K04-931

$272.30

GUIDE, VALVE (OVER SIZE)

12204-KTW-P00

$23.00

GASKET, CYLINDER HEAD

12251-KTW-901

$42.18

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

PIPE, INLET

17110-K04-700

$88.62

INSULATOR, THROTTLE BODY

17112-KTW-900

$19.77

INSULATOR, IN. PIPE

17119-KTW-900

$17.13

BAND, INSULATOR

17256-KTW-900

$11.74

THERMOSTAT

19300-KGF-911

$56.38

COVER, THERMOSTAT

19315-K04-930

$13.52

STAY, WIRE HARNESS

31331-K04-930

$20.56

SPARK PLUG (LMAR8A-9) (NGK)

31908-KTW-901

$19.38

SENSOR, OXYGEN

36531-K04-931

$111.07

WIRE, OXYGEN SENSOR

36533-K04-931

$54.49

SENSOR ASSY., WATER TEMPERATURE

37870-MBG-003

$83.34

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, RECESSED (5X22)

90005-MEJ-000

$1.49

BOLT-WASHER (9X155)

90007-MCT-000

$5.41

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

O-RING, IN. PIPE

91302-KVZ-631

$15.69

BOLT, STUD (8X22)

92900-08022-0E

$1.49

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
