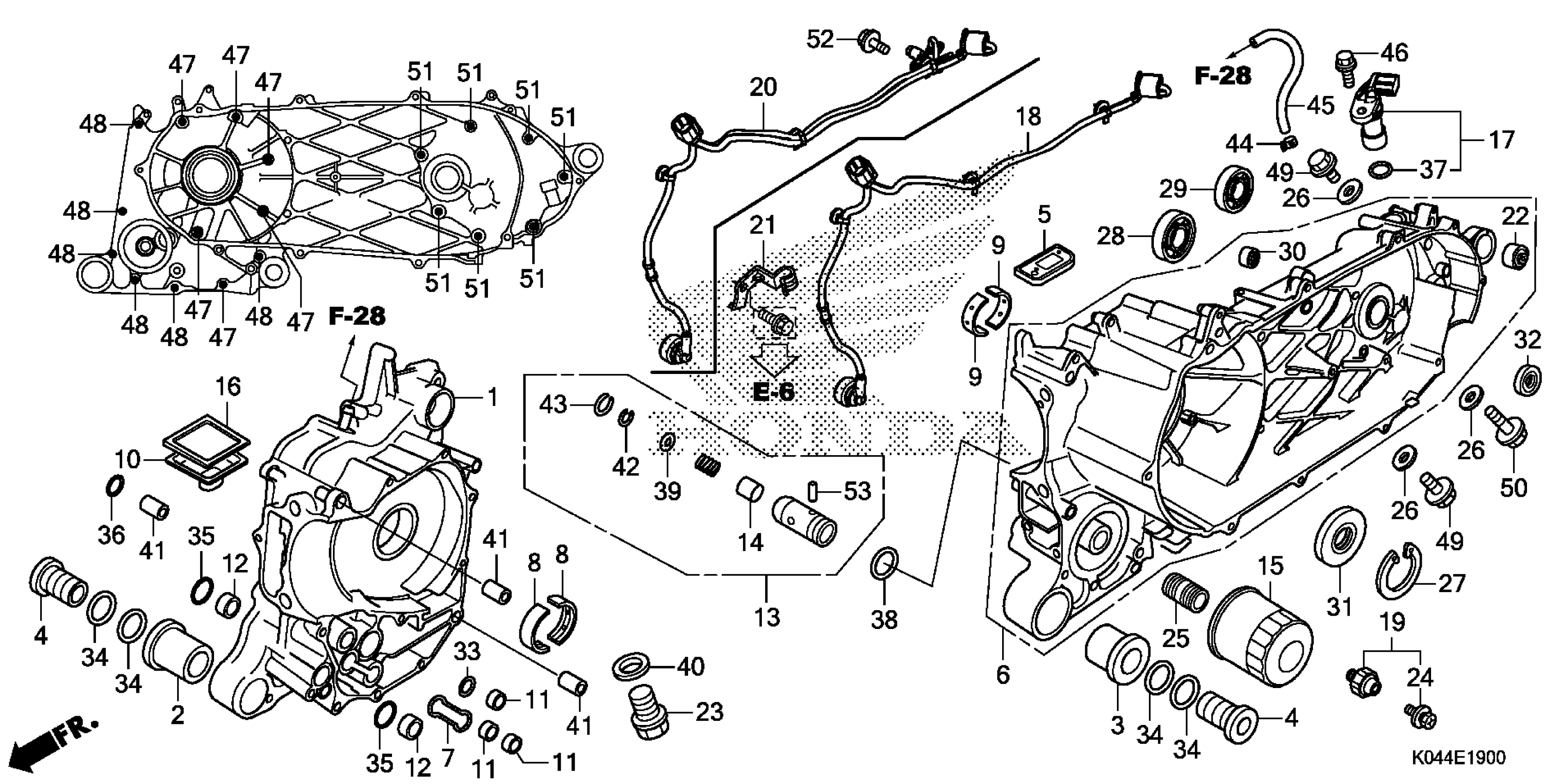

Honda NSS300AAC (16) MOTOR SCOOTER, THA, VIN# MLHNF041-G5200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-K04-932

$236.97

2

BUSH, R. ENGINE HANGER (OUTER)

11103-K04-930

$27.65

3

BUSH, L. ENGINE HANGER (OUTER)

11104-K04-930

$29.94

4

BUSH, ENGINE HANGER (INNER)

11105-KTW-900

$30.84

5

VALVE, REED

11110-KTW-901

$34.24

6

CRANKCASE, L.

11200-K04-931

$415.90

7

GASKET, OIL PASSAGE

11205-KTW-900

$5.54

8

BEARING A, R. CRANKSHAFT SIDE (BLUE)

13312-KTW-901

$18.12

8

BEARING B, R. CRANKSHAFT SIDE (BLACK)

13313-KTW-901

$18.12

8

BEARING C, R. CRANKSHAFT SIDE (BROWN)

13314-KTW-901

$18.12

8

BEARING D, R. CRANKSHAFT SIDE (GREEN)

13315-KTW-901

$18.12

8

BEARING E, R. CRANKSHAFT SIDE (OVER SIZE) (BLUE/BLUE) | (Optional).

13316-KTW-901

$18.12

8

BEARING F, R. CRANKSHAFT SIDE (OVER SIZE) (BLACK/BLACK) | (Optional).

13317-KTW-901

$18.12

8

BEARING G, R. CRANKSHAFT SIDE (OVER SIZE) (BROWN/BROWN) | (Optional).

13318-KTW-901

$18.12

8

BEARING H, R. CRANKSHAFT SIDE (OVER SIZE) (GREEN/GREEN) | (Optional).

13319-KTW-901

$18.12

9

BEARING A, L. CRANKSHAFT SIDE (BLUE)

13322-KTW-901

$18.12

9

BEARING B, L. CRANKSHAFT SIDE (BLACK)

13323-KTW-901

$18.12

9

BEARING C, L. CRANKSHAFT SIDE (BROWN)

13324-KTW-901

$18.12

9

BEARING D, L. CRANKSHAFT SIDE (GREEN)

13325-KTW-901

$18.12

9

BEARING E, L. CRANKSHAFT SIDE (OVER SIZE) (BLUE/BLUE) | (Optional).

13326-KTW-901

$18.12

9

BEARING F, L. CRANKSHAFT SIDE (OVER SIZE) (BLACK/BLACK) | (Optional).

13327-KTW-901

$18.12

9

BEARING G, L. CRANKSHAFT SIDE (OVER SIZE) (BROWN/BROWN) | (Optional).

13328-KTW-901

$18.12

9

BEARING H, L. CRANKSHAFT SIDE (OVER SIZE) (GREEN/GREEN) | (Optional).

13329-KTW-901

$18.12

10

STRAINER, OIL

15153-HN7-000

$5.53

11

COLLAR, O-RING

15155-300-000

$3.31

12

COLLAR, O-RING

15155-HP0-A00

$2.48

13

VALVE ASSY., RELIEF

15220-KTW-900

$44.06

14

VALVE, RELIEF

15231-413-020

$20.68

15

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.16

15

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$14.16

16

SCREEN, OIL FILTER

15421-K04-930

$2.75

17

PICK-UP ASSY. (TOYO)

28810-R90-013

$33.87

19

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MEH-661

$42.44

20

SENSOR, RR. WHEEL SPEED

38510-K04-971

$97.65

21

GUIDE, OIL PRESSURE SWITCH WIRE

38515-KTW-900

$7.41

22

BUSH, DAMPER

52108-KTW-B00

$19.12

23

BOLT, DRAIN PLUG (12MM)

90002-KTW-900

$5.81

24

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.74

25

BOSS, OIL FILTER

90019-MGZ-J00

$2.09

26

WASHER, SEALING (8MM)

90474-333-000

$4.15

27

CIRCLIP (INNER) (65)

90601-K04-930

$4.74

28

BEARING, RADIAL BALL (6205SPL)

91005-KPB-003

$11.82

29

BEARING, RADIAL BALL (6204) (TOYO)

91102-GE1-711

$18.37

30

BEARING, NEEDLE (14X22X20)

91105-KTW-901

$38.68

31

OIL SEAL (33X64X7)

91201-K04-931

$5.68

32

OIL SEAL (25X35X5)

91251-KPB-003

$6.60

33

O-RING (14.8X2.4) (NOK)

91303-K04-930

$1.34

34

O-RING (15.8X2.4)

91304-K04-930

$0.41

35

O-RING (16.5X2.5)

91305-K04-930

$0.85

36

O-RING (9.8X2.4)

91307-K04-930

$1.26

37

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.80

38

O-RING (14.7X2.2)

91313-K04-930

$1.28

39

WASHER, PLAIN (5MM)

94101-05800

$0.91

40

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

41

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80

42

CIRCLIP (INNER) (12MM)

94520-12000

$0.49

43

CLIP, PISTON PIN (16MM)

94601-16000

$0.56

44

CLAMP, TUBE (D10)

95002-41000-08

$2.16

45

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

46

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

47

BOLT, FLANGE (6X55)

95701-06055-00

$2.75

48

BOLT, FLANGE (6X80)

95701-06080-00

$2.87

49

BOLT, FLANGE (8X12)

95701-08012-00

$1.04

50

BOLT, FLANGE (8X25)

95701-08025-00

$1.65

51

BOLT, FLANGE (8X60)

95701-08060-00

$1.40

52

BOLT, FLANGE (6X16)

96001-06016-07

$0.97

53

ROLLER (3X17.8)

96220-30178

$1.47
