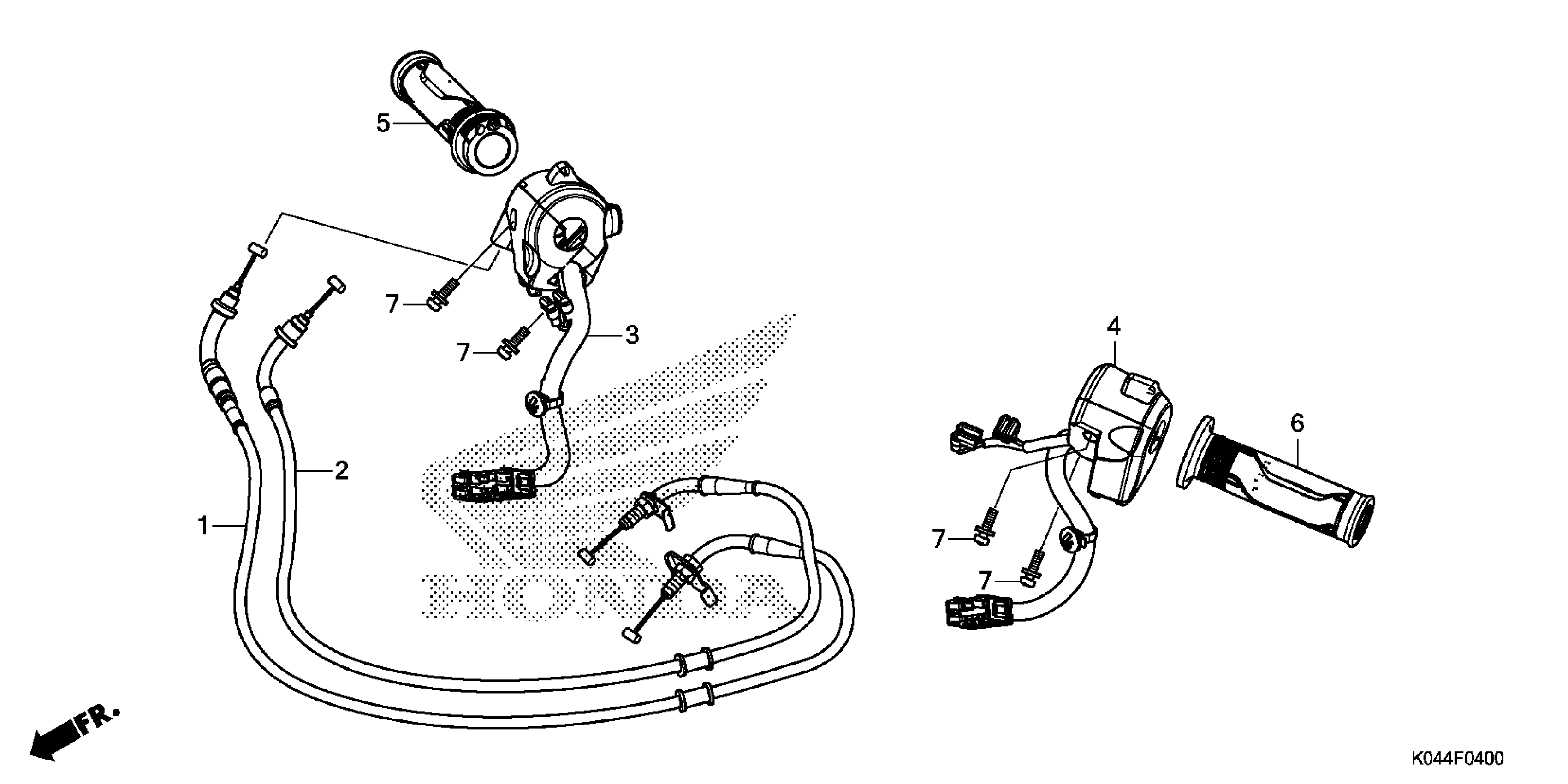

Honda NSS300AAC (15) MOTOR SCOOTER, THA, VIN# MLHNF041-F5100001 TO MLHNF041-F5199999 SWITCH@CABLE Diagram

#

Description

Price

1

CABLE A, THROTTLE

17910-K04-931

$25.35

2

CABLE B, THROTTLE

17920-K04-931

$26.26

3

SWITCH ASSY., ENGINE STOP

35130-K04-901

$131.90

4

SW ASSY,WINKER This part replaces 35200-K04-901.

35200-K04-902

$54.19

4

SW ASSY,WINKER

35200-K04-902

$54.19

5

GRIP, THROTTLE (COO)

53140-KYJ-305

$9.08

6

GRIP, L. HANDLE (COO)

53166-KYJ-305

$5.28

7

SCREW-WASHER (5X20)

93892-05020-07

$0.78
