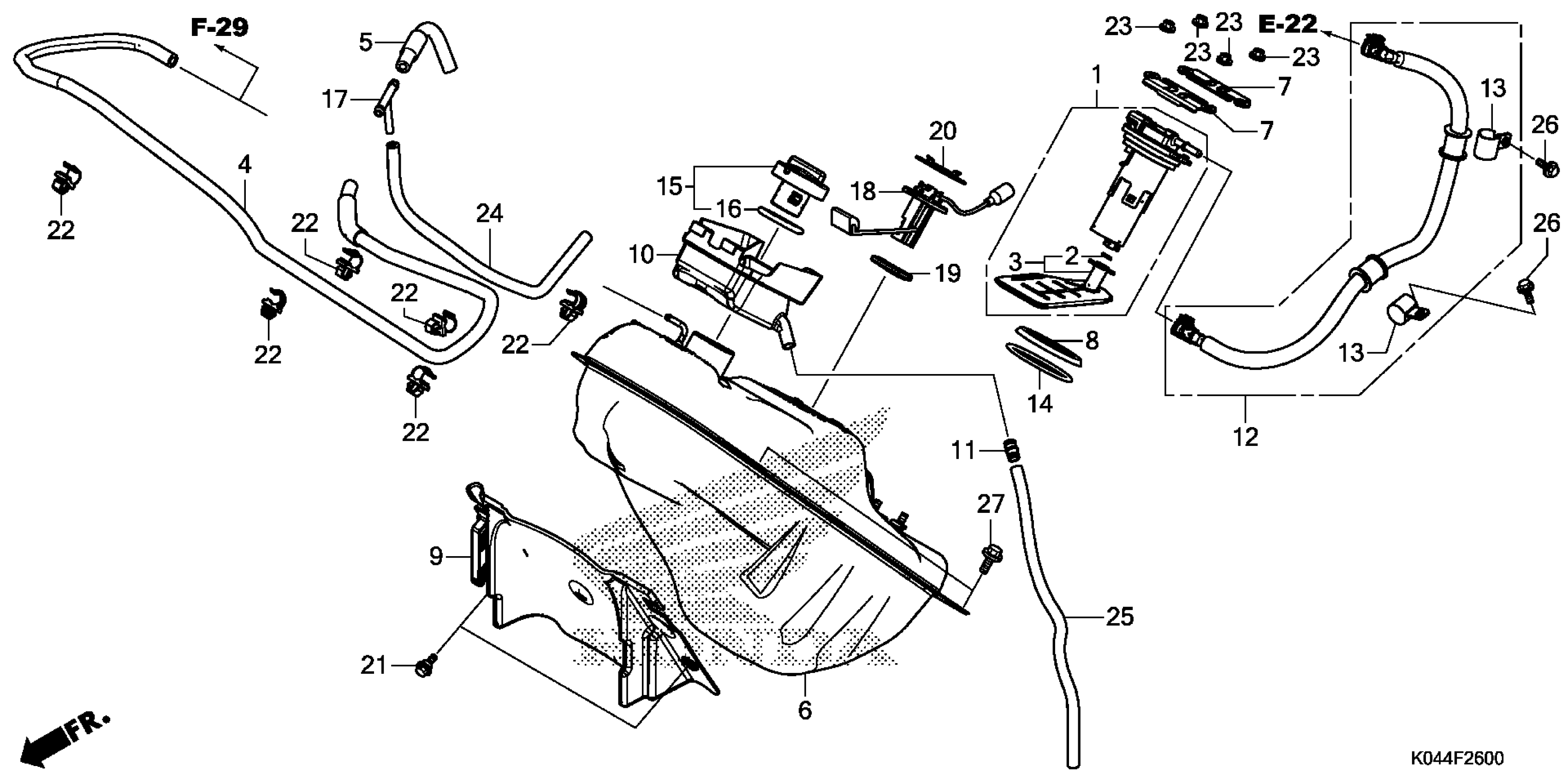

Honda NSS300AAC (14) MOTOR SCOOTER, THA, VIN# MLHNF041-E5000001 TO MLHNF041-E5099999 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS) This part replaces 16700-K04-933.

16700-K04-934

$163.35

O-RING (P7)

16706-KVB-S51

$1.01

FILTER SET

16707-K04-931

$112.61

TANK, FUEL

17510-K04-930

$246.61

RETAINER, FUEL PUMP

17517-K04-930

$12.57

DUST SEAL

17518-GGL-J00

$11.12

COVER, FUEL TANK

17520-K04-930

$11.36

TRAY, FUEL

17525-K04-930

$10.20

JOINT, FUEL TUBE

17525-KBN-900

$3.52

HOSE, FUEL FEED

17528-K04-931

$79.64

CLAMP, FUEL HOSE

17568-KRJ-900

$2.96

O-RING, FUEL PUMP

17572-GGL-J00

$8.10

CAP, FUEL FILLER This part replaces 17620-KWN-981.

17620-KWN-982

$37.96

CAP, FUEL FILLER

17620-KWN-982

$37.96

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

GASKET, FUEL FILLER CAP

17632-383-832

Unavailable

FUEL UNIT (NIPPON SEIKI)

37800-K04-931

$40.38

GASKET, BASE

37801-GA7-700

$4.81

RETAINER, FUEL UNIT

37802-KTL-740

$1.46

BOLT, FLANGE (6MM)

90116-KVB-900

$0.90

NUT, FLANGE (6MM)

94050-06000

$0.59

BULK HOSE, VINYL (9X11X3000) (9X11X400)

95003-25003-60M

Unavailable

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

BOLT, FLANGE (8X14)

95701-08014-00

$1.19
