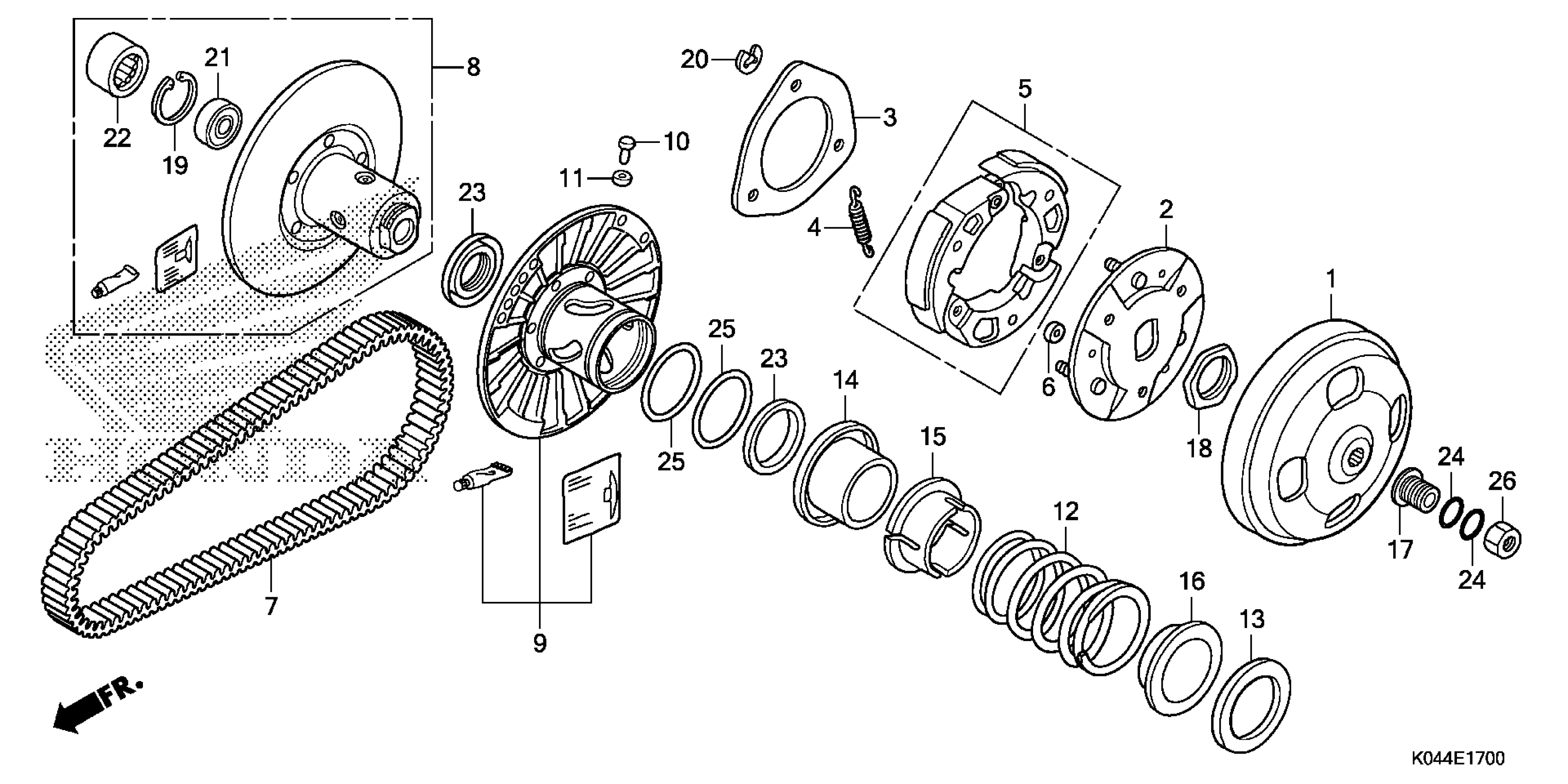

Honda NSS300AAC (14) MOTOR SCOOTER, THA, VIN# MLHNF041-E5000001 TO MLHNF041-E5099999 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-KFG-000

$63.11

2

PLATE, DRIVE

22350-KFG-000

$33.95

3

PLATE, CLUTCH SIDE

22361-KFG-000

$15.79

4

SPRING, CLUTCH

22401-KEY-900

$4.49

5

WEIGHT SET, CLUTCH

22535-KVZ-630

$138.28

6

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

7

BELT, DRIVE (BANDO) This part replaces 23100-K04-931.

23100-KTW-901

$242.10

7

BELT, DRIVE (BANDO)

23100-KTW-901

$242.10

8

FACE SET, DRIVEN

23205-KTW-900

$481.69

9

FACE SET, MOVABLE DRIVEN

23224-KTW-900

$342.77

10

PIN, ROLLER GUIDE

23225-KM1-010

$2.92

11

ROLLER, GUIDE

23226-KM1-010

$4.15

12

SPRING, DRIVEN FACE

23233-KTW-900

$26.25

13

SEAT, DRIVEN FACE SPRING

23236-KSV-J10

$7.30

14

COLLAR, SEAL

23237-KSV-J10

$12.15

15

COLLAR A, SPRING GUIDE

23238-KSV-J10

$15.51

16

COLLAR B, SPRING GUIDE

23239-KSV-J10

$6.36

17

COLLAR, DRIVESHAFT

23415-KVZ-K10

$58.84

18

NUT, SPECIAL (30MM)

90202-KM1-000

$6.69

19

CIRCLIP (INNER) (28MM)

90603-KSV-J10

$4.05

20

CIRCLIP (7MM)

90605-166-720

$1.80

21

BEARING, RADIAL BALL (6902U) (TOYO)

91002-GA7-701

$24.58

21

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

22

BEARING, NEEDLE (25X33X18)

91002-KPB-003

$17.36

23

SEAL, DRIVEN FACE (40X47X4)

91211-KM1-005

$8.66

24

O-RING (16.5X1.5)

91301-K04-930

$1.49

25

O-RING (47X1.9) (NOK)

91352-KM1-003

$2.92

25

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.92

26

NUT, HEX. (12MM)

94001-12200-0S

$1.49
