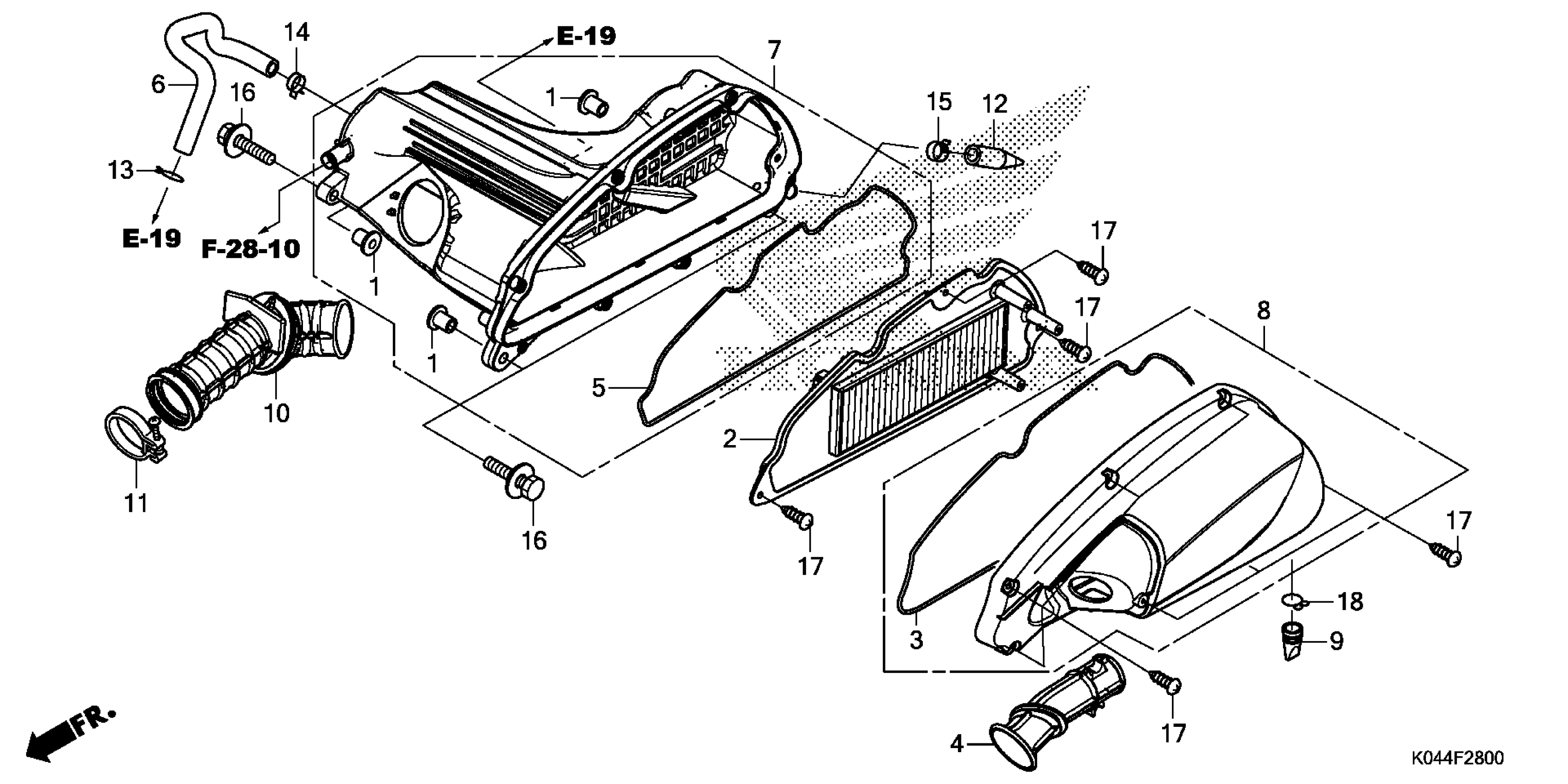

Honda NSS300AAC (14) MOTOR SCOOTER, THA, VIN# MLHNF041-E5000001 TO MLHNF041-E5099999 AIR CLEANER Diagram

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.78

ELEMENT, AIR CLEANER

17210-K04-930

$15.68

SEAL, AIR CLEANER

17213-KTW-900

$6.20

DUCT, AIR CLEANER

17215-K04-930

$9.03

SEAL, AIR CLEANER

17218-KFG-000

$6.81

TUBE, BREATHER

17218-K04-930

$11.65

CASE SUB-ASSY., AIR CLEANER

17225-K04-931

$22.75

COVER SUB-ASSY., AIR CLEANER

17235-K04-930

$17.42

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.00

TUBE, AIR CLEANER CONNECTING

17253-K04-931

$32.70

BAND, AIR CLEANER CONNECTING TUBE (52)

17255-K04-930

$3.77

TUBE, DRAIN

17261-KSV-J00

$3.18

CLAMP, TUBE (14.5MM) (B)

90661-GHB-630

$1.68

CLAMP, CANISTER HOSE

90682-SA0-671

$7.13

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.62

BOLT-WASHER (6X30)

93404-06030-00

$1.19

SCREW, TAPPING (5X20)

93903-25480

$0.61

CLIP, TUBE (C12)

95002-80000

$0.42
