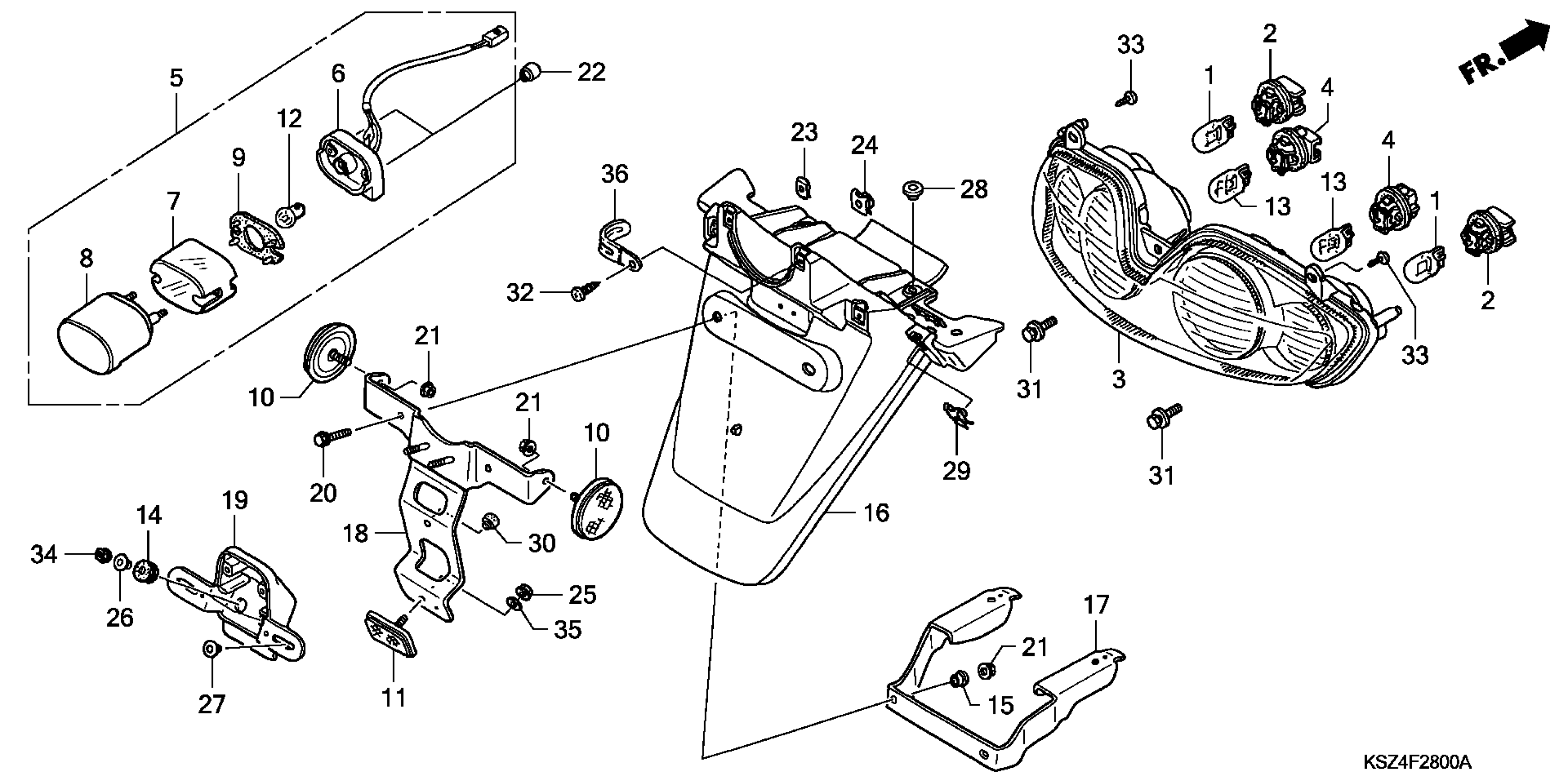

Honda NSS250ASSAC (07) MOTOR SCOOTER, JPN, VIN# JH2MF06H-7K300001 REAR COMBINATION LIGHT + REAR FENDER Diagram

BULB, WEDGE (12V 21W) (STANLEY)

33303-SL4-003

$4.52

SOCKET

33304-SL4-003

$15.96

COMBINATION UNIT, RR.

33710-KPB-003

Unavailable

SOCKET

33720-GZ9-003

$11.64

LIGHT ASSY., LICENSE

33720-KPB-671

Unavailable

BASE, LICENSE

33721-KPB-671

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$17.67

COVER, LICENSE (STANLEY)

33727-ME4-671

$24.83

GASKET, LENS

33729-MB1-003

$5.86

REFLECTOR, RR. REFLEX

33741-HB9-641

$11.90

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.80

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.80

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.80

BULB (12V8W)

34909-505-003

$2.80

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.80

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$3.73

RUBBER, FR. FENDER MOUNTING

61103-357-000

Unavailable

COLLAR, SIDE SHELTER

64123-KV0-000

$4.96

FENDER, RR.

80100-KPB-000

Unavailable

STAY, RR. FENDER

80110-KPB-670

$22.91

BRACKET, NUMBER PLATE

84701-KPB-671

$27.58

BRACKET, NUMBER PLATE

84701-ML7-670

$37.62

BOLT, SPECIAL (6MM)

90021-MF5-000

$3.68

NUT, U (6MM) (FUSERASHI)

90301-473-003

$3.79

NUT, SPECIAL (4MM)

90302-MB2-000

$4.48

NUT, SPRING (4MM)

90302-SA4-003

$4.91

NUT, CLIP (6MM)

90305-GEE-710

$1.48

NUT, SELF-LOCK (5MM)

90343-751-800

$2.03

COLLAR (6.2X11)

90501-GR2-000

$5.80

WASHER (6X20)

90502-VA4-640

$3.09

WASHER (6X20)

90512-300-000

$2.87

NUT, CLIP (5MM)

90677-KAN-961

$3.79

RUBBER, NUMBER BRACKET CUSHION

90899-MB2-000

$3.46

BOLT-WASHER (6X16)

93404-06016-00

$1.48

SCREW, TAPPING (4X12)

93903-34310

$0.75

SCREW, TAPPING (4X12)

93903-34380

$1.93

NUT, FLANGE (6MM)

94050-06070

$1.32

WASHER, PLAIN (5MM)

94101-05800

$0.90

CLIP (2X50)

94591-25000

$2.10
