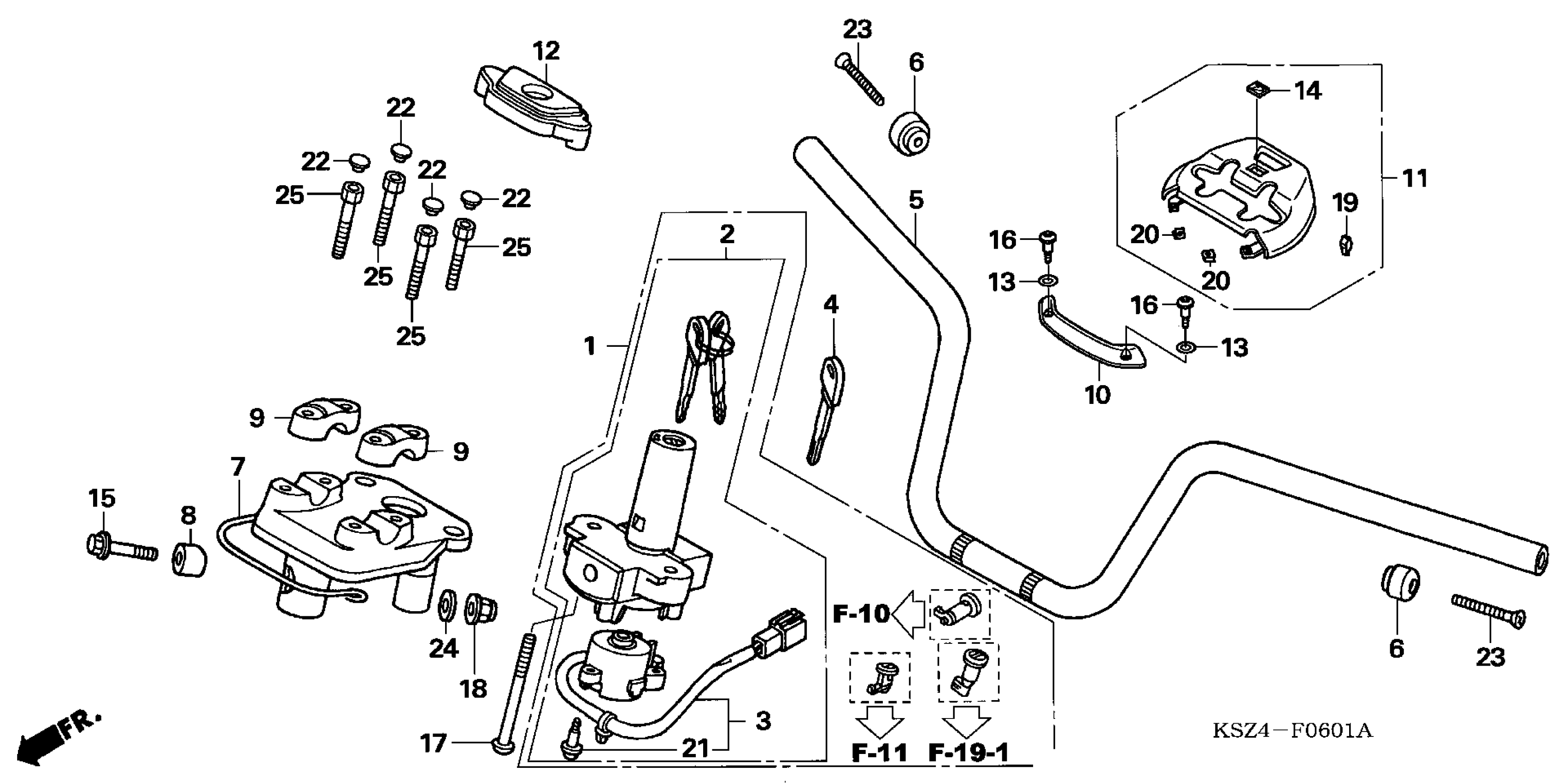

Honda NSS250ASSAC (07) MOTOR SCOOTER, JPN, VIN# JH2MF06H-7K300001 HANDLEBAR + HANDLE COVER (NSS250S/NSS250AS) Diagram

LOCK SET

35010-KSZ-770

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-KSZ-770

Unavailable

BASE, CONTACT

35101-KPB-J40

Unavailable

KEY, BLANK | (Optional).

35121-KPB-007

Unavailable

HANDLEBAR

53100-KPB-H00

$92.07

WEIGHT, HANDLE

53104-KPB-H00

$17.87

POST, HANDLE

53110-KPB-H01

$105.95

COLLAR, HANDLE SETTING

53125-GN5-900

$9.46

HOLDER, HANDLEBAR (UPPER)

53131-KR8-000

$27.79

COVER, FR. HANDLE

53250-KPB-H00

Unavailable

COVER, RR. HANDLE

53255-KPB-H00

Unavailable

COVER, MAIN SWITCH *NH1* (BLACK)

53281-KPB-640ZB

Unavailable

RETAINER (7MM)

83607-MR4-900

$2.06

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

BOLT, FLANGE (10X50)

90106-GN5-900

$3.21

SCREW, PAN (5X15.5)

90109-MBL-610

$2.85

BOLT, ONE-WAY (8X58)

90164-KPB-000

$5.34

NUT, U (10MM)

90304-GE8-003

$3.67

CLIP, SNAP FITTING

90666-S84-A01

$1.49

NUT, CLIP (5MM)

90677-GR1-003

$4.27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

CAP, SOCKET BOLT (8MM)

91455-KL8-710

$5.23

SCREW, OVAL (6X35)

90107-KSZ-770

$1.49

WASHER, PLAIN (10MM)

94101-10800

$1.89

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$2.07

BOLT, SOCKET (8X32)

96600-08032-10

$2.07
