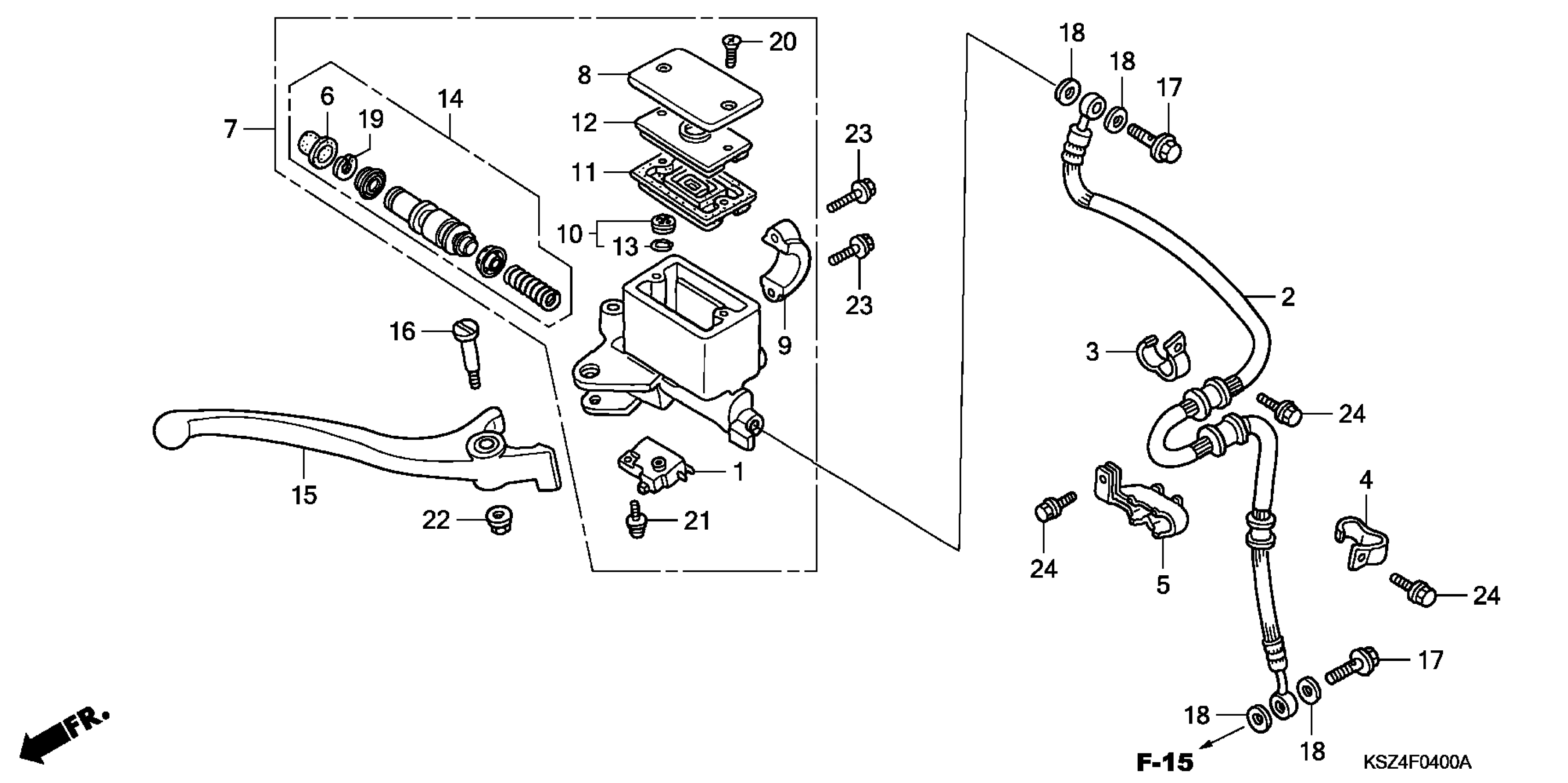

Honda NSS250AC (05) REFLEX, JPN, VIN# JH2MF061-5K300001 TO JH2MF061-5K399999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE, R. FR. BRAKE

45125-KPB-004

Unavailable

CLIP A, BRAKE HOSE

45127-KFG-000

$3.23

CLIP B, BRAKE HOSE

45128-KFG-640

Unavailable

CLAMP A, BRAKE HOSE

45135-KPB-000

$5.98

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR.

45510-KPB-641

$253.23

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

SEPARATOR

45518-KY1-701

$6.93

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CLIP

45523-KY1-701

$1.87

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLE

53175-MK7-671

$17.88

BOLT, HANDLE LEVER

90114-KT7-006

$8.92

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
