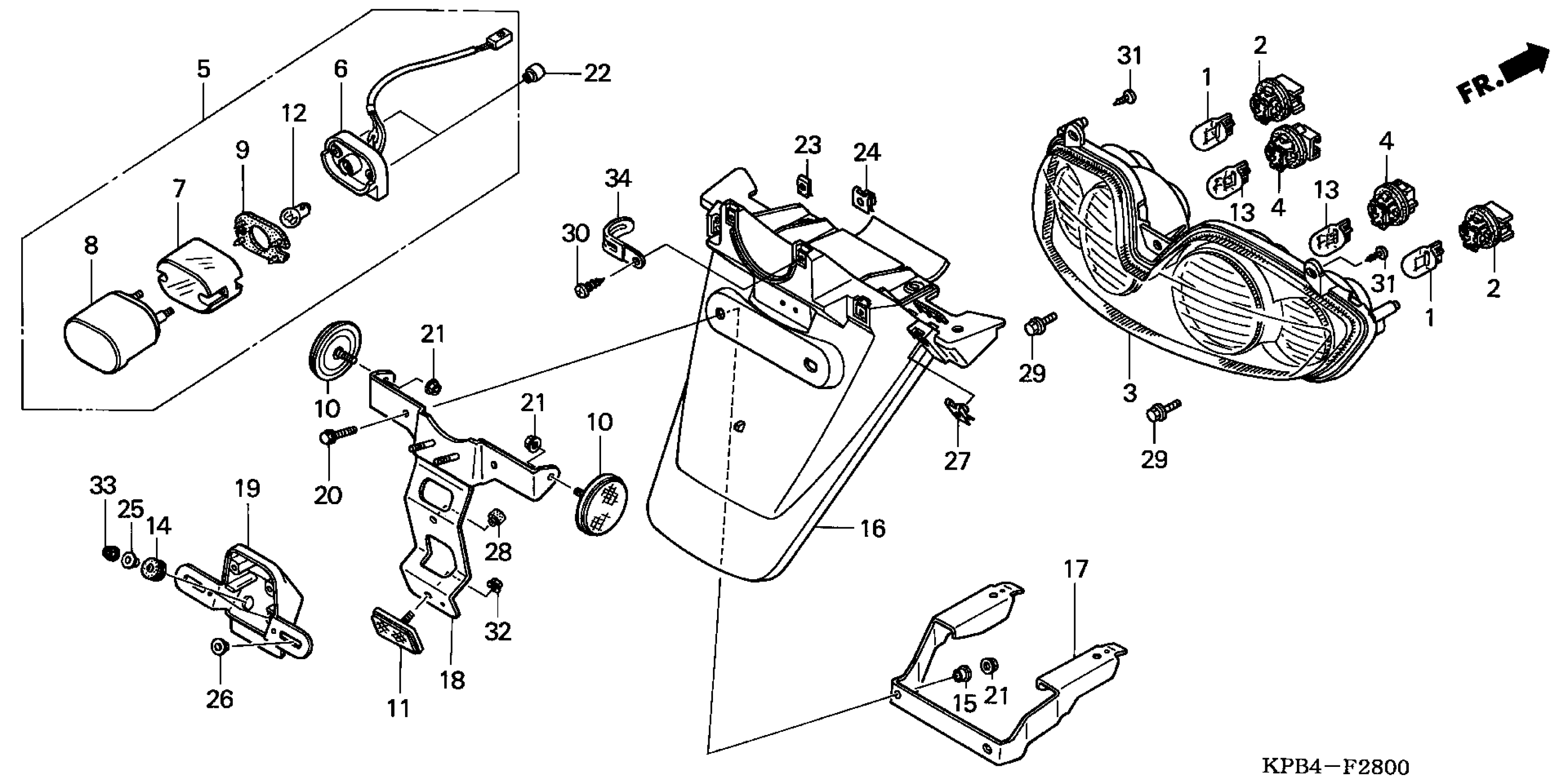

Honda NSS250AC (03) MOTOR SCOOTER, JPN, VIN# JH2MF061-3K100001 TAILLIGHT@REAR FENDER Diagram

BULB, WEDGE (12V 21W) (STANLEY)

33303-SL4-003

$5.00

SOCKET

33304-SL4-003

$18.05

COMBINATION UNIT, RR.

33710-KPB-003

Unavailable

SOCKET

33720-GZ9-003

$12.97

LIGHT ASSY., LICENSE

33720-KPB-671

Unavailable

BASE, LICENSE

33721-KPB-671

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

COVER, LICENSE (STANLEY)

33727-ME4-671

$27.26

GASKET, LENS

33729-MB1-003

$6.30

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$4.01

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

$3.37

COLLAR, SIDE SHELTER

64123-KV0-000

$5.44

FENDER, RR.

80100-KPB-000

Unavailable

STAY, RR. FENDER

80110-KPB-670

$25.16

BRACKET, NUMBER PLATE

84701-KPB-671

$30.30

BRACKET, NUMBER PLATE

84701-ML7-670

$41.31

BOLT, SPECIAL (6MM)

90021-MF5-000

$4.05

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

NUT, SPRING (4MM)

90302-SA4-003

$5.44

NUT, CLIP (6MM)

90305-GEE-710

$1.62

COLLAR (6.2X11)

90501-GR2-000

$6.36

WASHER (6X20) COLLAR, HEADLIGHT SETTING

90512-300-000

$3.08

NUT, CLIP (5MM)

90677-KAN-961

$4.07

RUBBER, NUMBER BRACKET CUSHION

90899-MB2-000

$3.80

BOLT-WASHER (6X16)

93404-06016-00

$1.55

SCREW, TAPPING (4X12)

93903-34310

$1.49

SCREW, TAPPING (4X12)

93903-34380

$2.18

NUT, FLANGE (5MM)

94050-05080

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

CLIP (2X50)

94591-25000

$2.31
