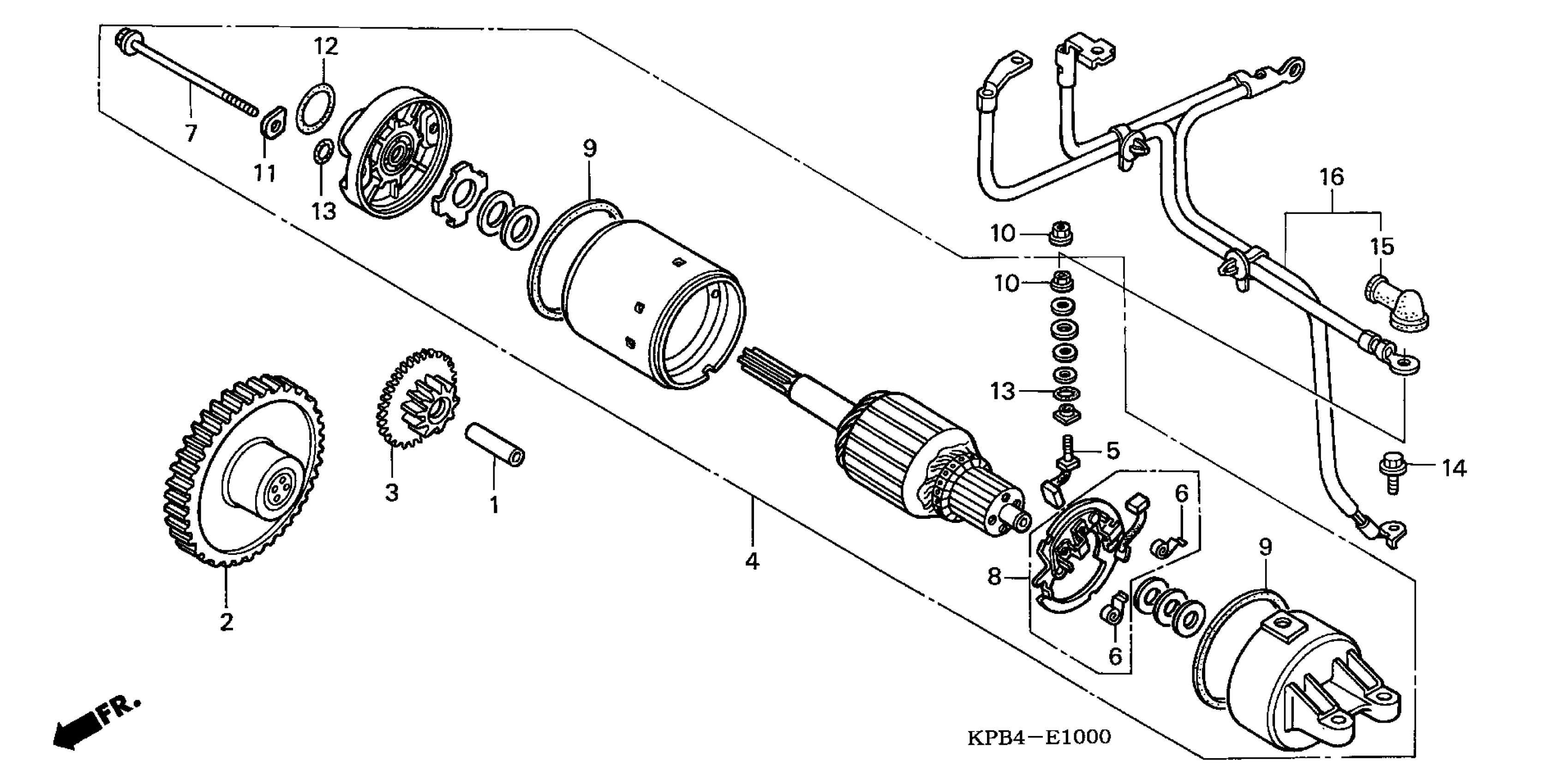

Honda NSS250AC (03) MOTOR SCOOTER, JPN, VIN# JH2MF061-3K100001 STARTING MOTOR Diagram

SHAFT, STARTOR REDUCTION GEAR

28102-KFG-000

Unavailable

GEAR, STARTING DRIVEN (53T)

28110-KFG-000

$106.05

GEAR, STARTER REDUCTION (11T/54T)

28130-KFG-000

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-KAB-018.

31200-KTB-003

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

BOLT, SETTING

31205-KL8-711

$4.51

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$26.42

RING (Honda Code 2541985)

31207-KS5-901

$3.12

NUT-WASHER (6MM)

90071-MB0-000

$1.97

WASHER, STEEL PLATE

90122-MN4-008

$2.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

CABLE, BATTERY GROUND

32610-KPB-000

Unavailable
