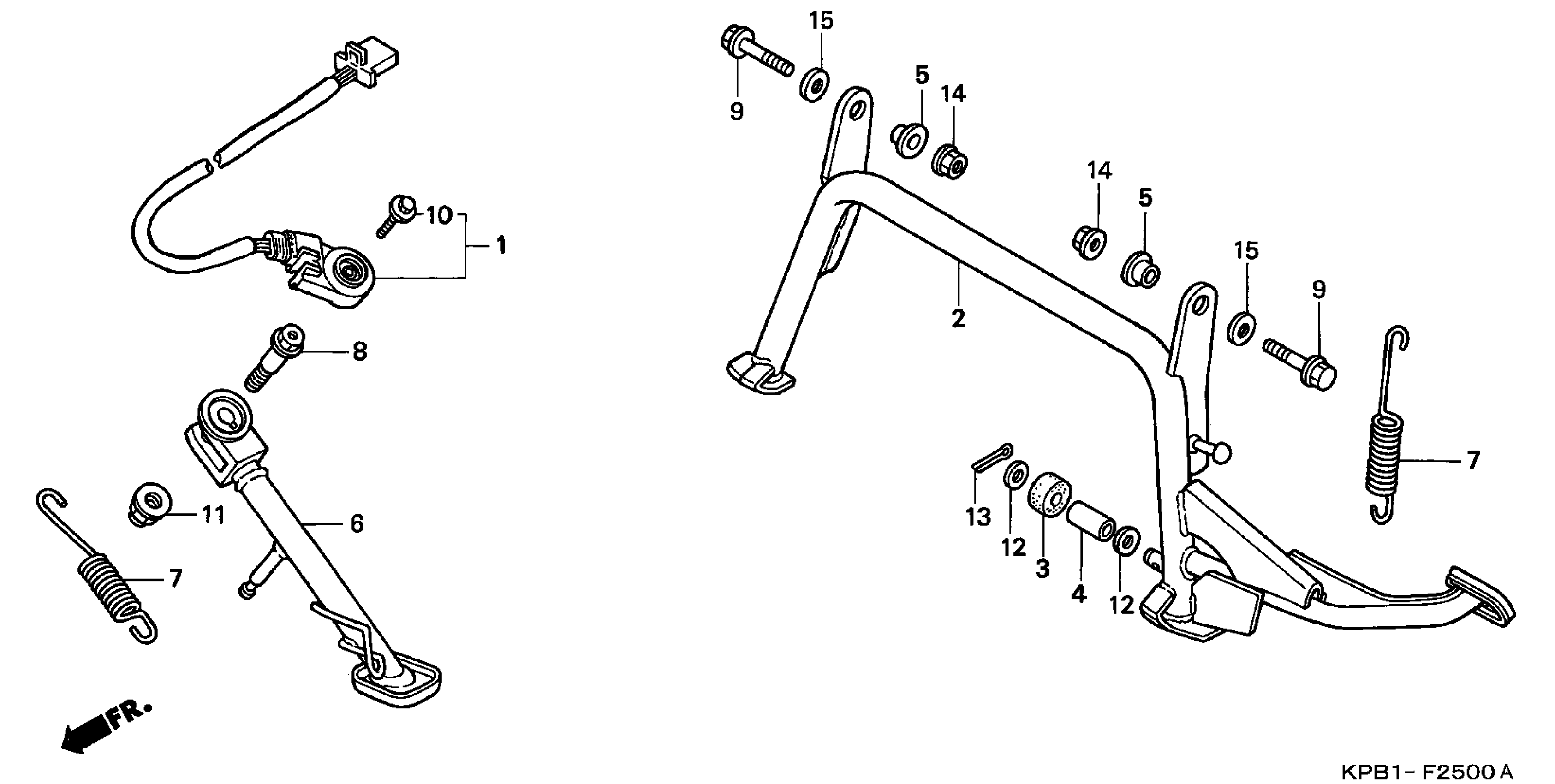

Honda NSS250AC (03) MOTOR SCOOTER, JPN, VIN# JH2MF061-3K100001 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35700-KFG-306

Unavailable

2

STAND, MAIN

50500-KPB-000

$115.77

3

RUBBER, MAIN STAND STOPPER

50502-KAB-000

$2.43

4

COLLAR, MAIN STAND STOPPER

50503-KAB-000

$2.44

5

COLLAR, MAIN STAND

50504-KAB-010

Unavailable

6

BAR, SIDE STAND

50530-KPB-000

Unavailable

7

SPRING ASSY., SIDE STAND This part replaces 50541-MM4-000.

50542-MZ2-000

$16.18

7

SPRING ASSY., SIDE STAND

50542-MZ2-000

$16.18

8

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

9

BOLT, FLANGE (10X35)

95701-10035-07

$2.07

10

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

11

NUT, SIDE STAND

90203-MF9-710

$3.67

12

WASHER, PLAIN (8MM)

94102-08800

$1.49

13

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

13

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

13

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

13

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

13

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

13

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

13

PIN, COTTER (2.0X22)

94201-29220

$1.49

14

NUT, FLANGE (10MM)

90303-428-900

$3.35

14

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

15

WASHER, PLAIN (10MM)

94101-10700

$1.49
