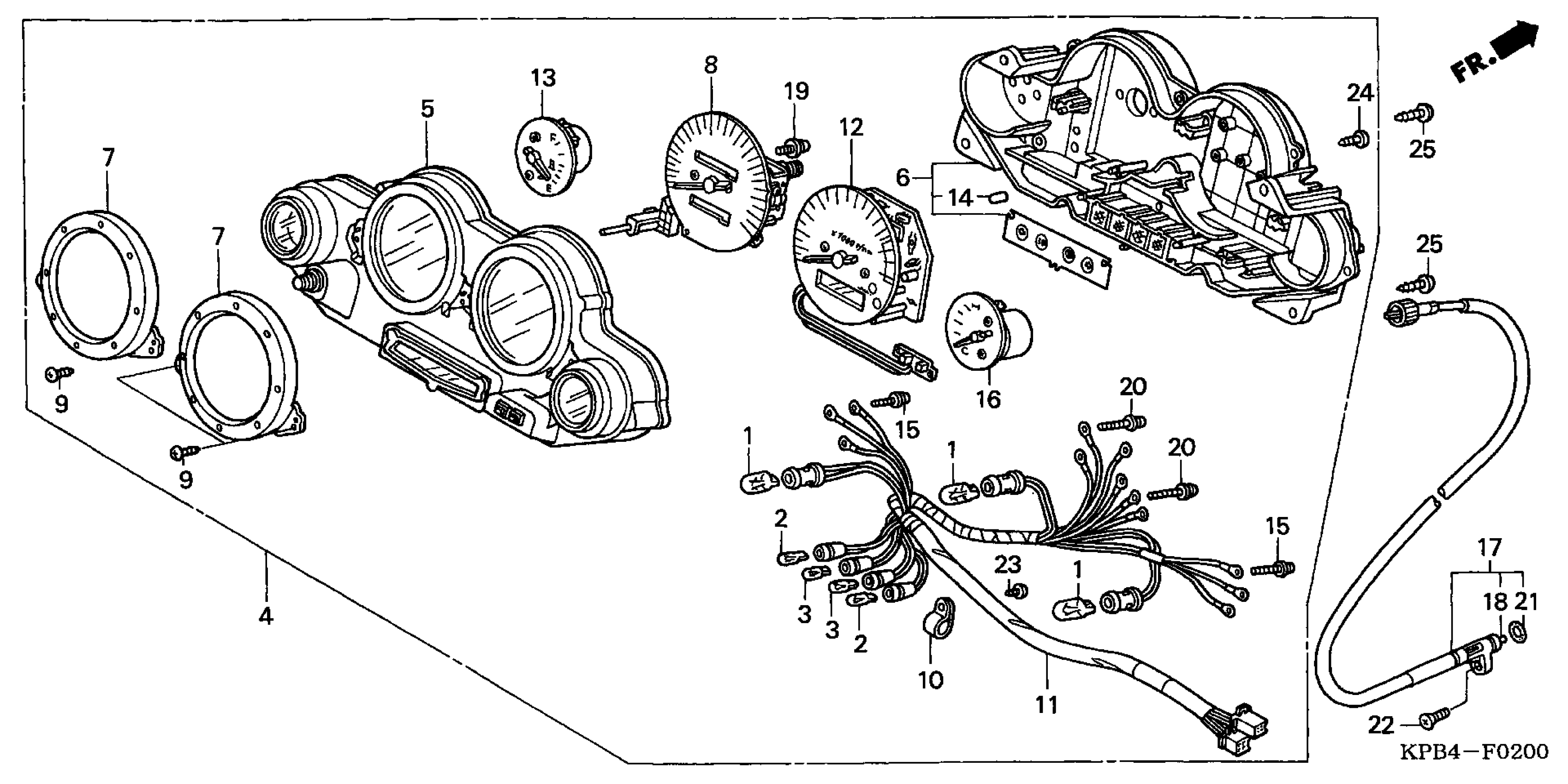

Honda NSS250AC (03) MOTOR SCOOTER, JPN, VIN# JH2MF061-3K100001 SPEEDOMETER Diagram

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

BULB, WEDGE BASE (12V3W) (TOSHIBA)

34908-KM1-671

$7.08

BULB, WEDGE BASE (12V 1.7W) BULB, WEDGE BASE (12V1.4W)

34908-MG9-951

$2.33

METER ASSY., COMBINATION

37100-KPB-671

$779.30

CASE ASSY. (UPPER)

37102-KPB-008

Unavailable

CASE ASSY. (LOWER)

37103-KPB-008

$80.44

RING, METER

37105-KPB-008

$19.67

SPEEDOMETER (MPH/KPH)

37200-KPB-601

Unavailable

SCREW, TAPPING (3X14)

37214-KV7-671

$1.49

CLAMP

37215-MB6-831

$2.65

SOCKET

37223-KPB-008

$113.11

TACHOMETER (RPM)

37250-KPB-008

Unavailable

FUEL METER

37300-KPB-008

$84.82

RUBBER, CUSHION

37304-198-901

$3.89

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

METER, TEMPERATURE

37400-KPB-008

$64.21

CABLE ASSY., SPEEDOMETER

44830-KS4-010

$26.10

CABLE (INNER)

44831-KS4-000

$8.08

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

SCREW-WASHER (3X18)

90133-SL9-003

$8.67

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9) O-RING B (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

SCREW, OVAL (5X16)

93700-05016-0G

$1.49

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (4X16)

93903-24420

$1.49

SCREW, TAPPING (5X16)

93903-25310

$1.49
