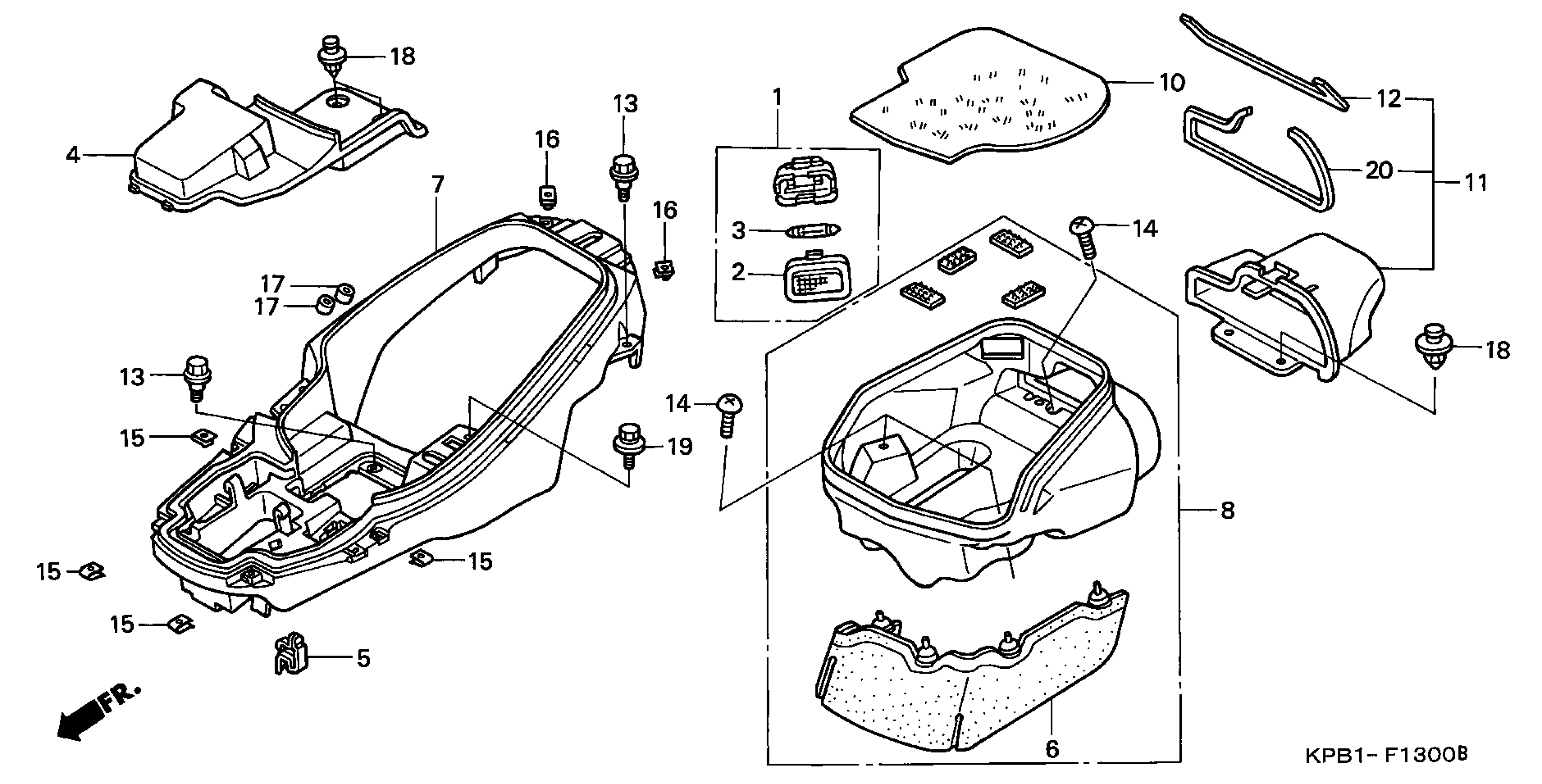

Honda NSS250AC (03) MOTOR SCOOTER, JPN, VIN# JH2MF061-3K100001 LUGGAGE BOX Diagram

Description

Price

LIGHT ASSY., TRUNK ROOM

34260-SZ3-003

$45.10

LENS

34262-SM4-003

$13.41

BULB (12V 3.4W) (DAIICHI)

34295-SA5-003

$3.95

COVER, BATTERY

50326-KPB-000

Unavailable

HOOK, HELMET

77106-KFG-000

$3.70

SPLASH GUARD

80104-KPB-000

$12.75

BOX, LUGGAGE (UPPER)

81251-KPB-010

Unavailable

BOX, LUGGAGE (LOWER)

81260-KPB-000

Unavailable

MAT, LUGGAGE BOX

81271-KPB-000

Unavailable

LID, MAINTENANCE

81290-KPB-000

$28.97

RUBBER, SEAL

81297-KPB-300

$2.04

BOLT, FLANGE (6MM)

90111-187-000

$5.21

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.17

NUT, SPRING (4MM)

90302-SA4-003

$4.91

NUT, CLIP (6MM)

90305-GEE-710

$1.48

COLLAR, BODY COVER

90312-GF0-000

$2.88

CLIP, AIR IN. DUCT PUSH

90601-PV3-003

$3.80

BOLT-WASHER (6X12)

93404-06012-07

$1.48

RUBBER A, SEAL

81298-KPB-300

Unavailable
