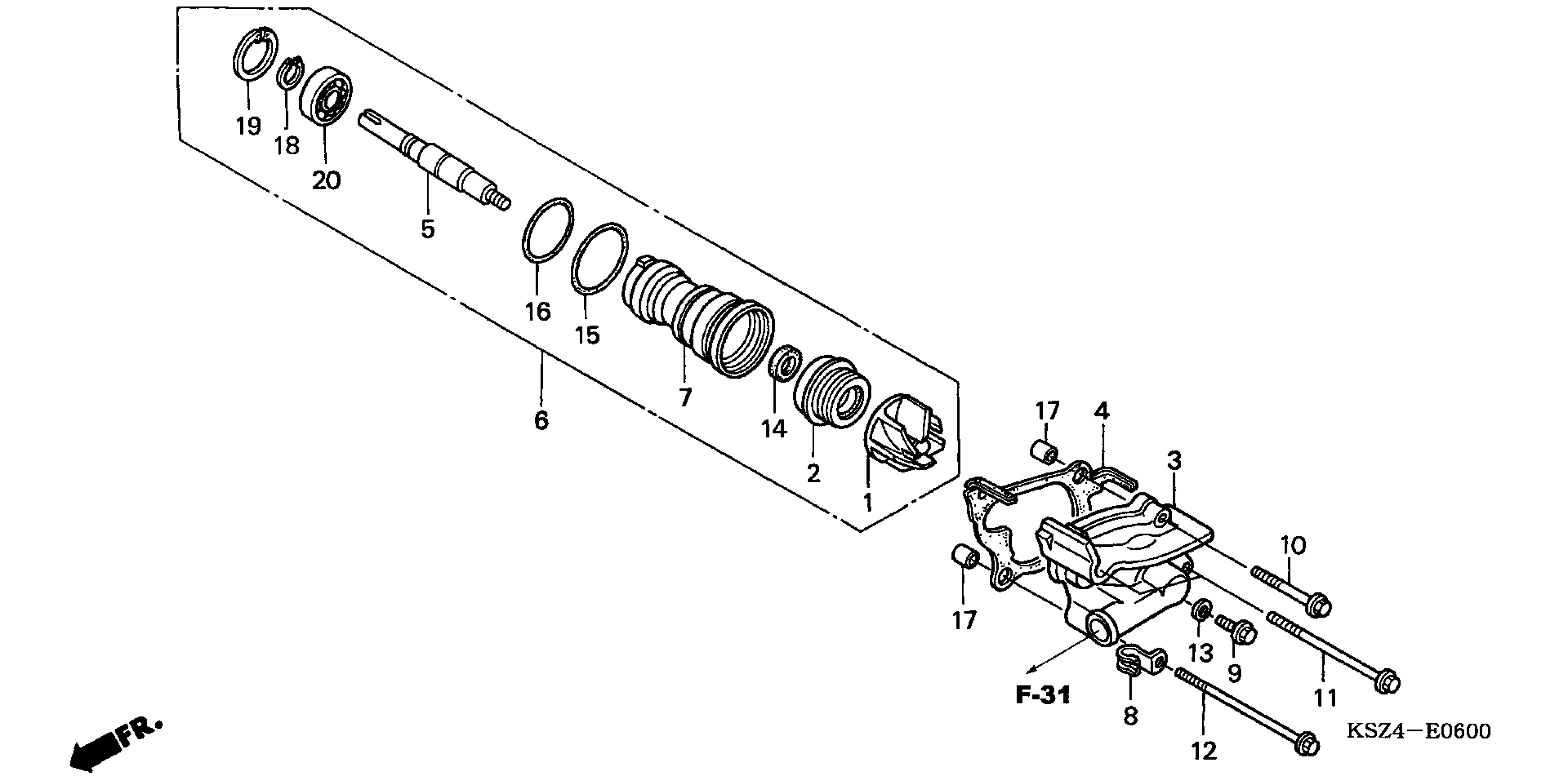

Honda NSS250AAC (07) MOTOR SCOOTER, JPN, VIN# JH2MF064-7K500001 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KAB-000

$48.31

2

SEAL, MECHANICAL

19217-MAL-300

$48.70

3

COVER, WATER PUMP

19221-KAB-000

$116.46

4

GASKET This part replaces 19229-KAB-010.

19229-KAB-020

Unavailable

5

SHAFT, WATER PUMP

19241-KAB-000

Unavailable

6

SHAFT, WATER PUMP

19250-KAB-010

$224.50

7

HOLDER, WATER PUMP SHAFT

19251-KAB-000

Unavailable

8

CLIP, IGNITION WIRE

32906-061-000

$4.44

9

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.83

10

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.89

11

BOLT, FLANGE (6X95) (NSHF)

90004-GHB-820

$2.96

12

BOLT, FLANGE (6X118)

90084-KCY-670

$9.31

13

WASHER A (6MM)

90478-700-000

$0.71

14

OIL SEAL (15X24X5) This part replaces 91201-GG0-003.

91204-GK8-003

$4.65

14

OIL SEAL (15X24X5) This part replaces 91201-812-013.

91204-GK8-003

$4.65

14

OIL SEAL (15X24X5) This part replaces 91201-812-015.

91204-GK8-003

$4.65

14

OIL SEAL (15X24X5)

91204-GK8-003

$4.65

15

O-RING (35.2X2.6) This part replaces 91301-KE1-003.

91301-KE1-004

$4.09

15

O-RING (35.2X2.6)

91301-KE1-004

$4.09

16

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.71

17

PIN, DOWEL (10X16)

94301-10160

$2.80

18

CIRCLIP (OUTER) (12MM)

94510-12000

$1.87

19

CIRCLIP (INNER) (28MM)

94520-28000

$1.51

20

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.32
