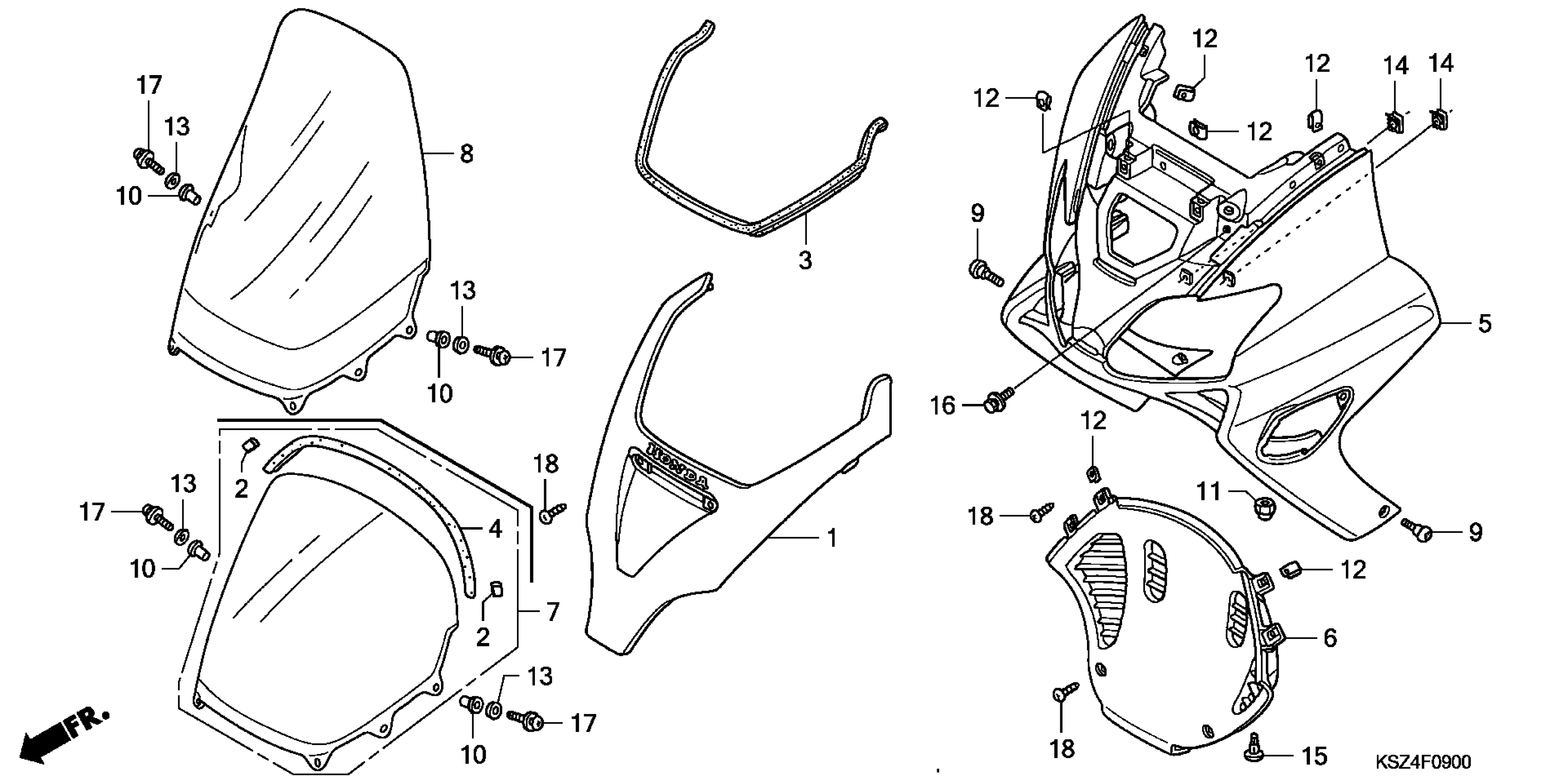

Honda NSS250AAC (07) MOTOR SCOOTER, JPN, VIN# JH2MF064-7K500001 FRONT COVER + WINDSCREEN Diagram

Description

Price

GARNISH SET, SCREEN NHA30M (WL) (DIGITAL SILVER METALLIC)

64100-KPB-J10ZL

$186.70

MOLDING, WINDSCREEN

64105-KPB-J10

$12.49

COVER, FR. NHA30M (DIGITAL SILVER METALLIC)

64305-KPB-000ZT

Unavailable

COVER, FR. (LOWER) NH1 (BLACK)

64351-KPB-000ZG

$44.36

WINDSCREEN

67101-KPB-670

Unavailable

SCREW, SPECIAL (5X17)

90109-KW3-000

$3.01

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

NUT, OPEN STAY (6MM)

90301-KPB-000

$3.21

NUT, SPRING (4MM)

90302-SA4-003

$5.44

WASHER, THRUST (5MM)

90504-964-000

$1.90

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP, TRIM

90683-GAZ-003

$3.80

BOLT-WASHER (6X16)

93404-06016-08

$1.55

BOLT-WASHER (6X16) This part replaces 93414-06016-08.
