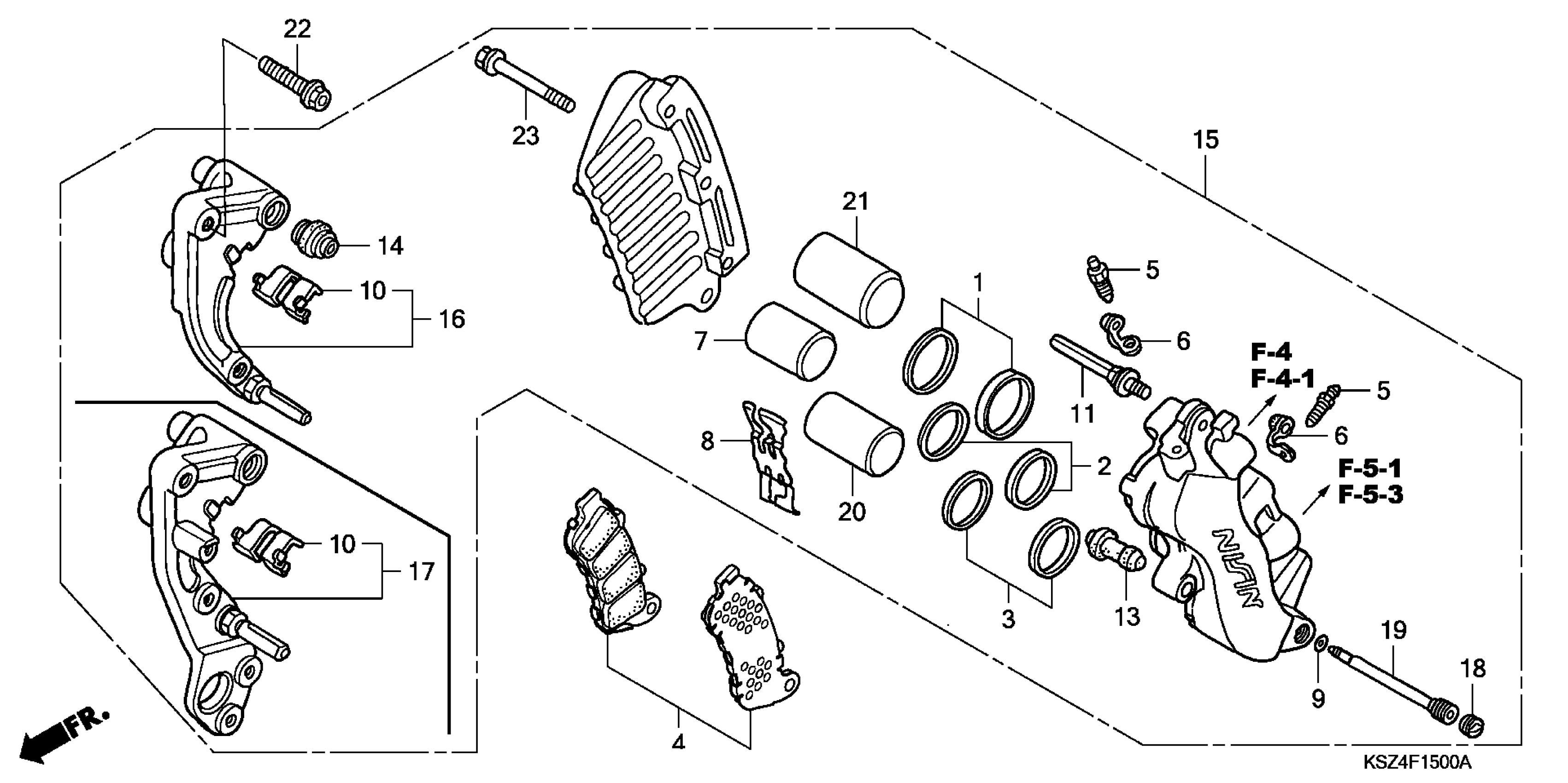

Honda NSS250AAC (07) MOTOR SCOOTER, JPN, VIN# JH2MF064-7K500001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

SEAL SET, PISTON

06451-GE2-405

$11.41

SEAL SET, PISTON

06451-MZ2-405

$12.55

SEAL SET, PISTON

06451-GE2-405

$11.41

SEAL SET, PISTON

06451-MZ2-405

$12.55

PAD SET This part replaces 06455-KPB-406.

06455-KPB-416

$61.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON A (22X27)

45107-MAJ-G41

$39.18

SPRING, PAD

45108-MZ2-016

$8.55

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

BOLT A, PIN

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR.

45150-KPB-752

$599.16

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KPB-752

$190.49

PLUG, PIN

45203-MCC-006

$2.89

PIN, HANGER

45215-MAJ-G41

$6.45

PISTON B (25X35)

45217-MAJ-G41

$36.94

PISTON B (27X35)

45218-MAJ-G41

$39.18

BOLT, FLANGE (8X32)

90131-KBV-003

$4.75

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.46
