Description

Price

1

CRANKCASE, R.

11100-KFG-J00

$270.03

2

BUSH, R. ENGINE HANGER (OUTER)

11103-KJ9-750

$15.67

3

BUSH, L. ENGINE HANGER (OUTER)

11104-KJ9-751

$15.50

4

BUSH, ENGINE HANGER (INNER)

11105-KAB-000

Unavailable

5

TUBE ASSY., BREATHER

11150-KFG-000

$15.51

6

CRANKCASE, L.

11200-KPB-000

Unavailable

7

BUSH, DAMPER

11203-KAB-000

$9.59

8

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.97

9

BOLT, FLANGE (6X147)

90001-KFG-000

$4.25

10

BOLT A, STUD (8MM)

90031-KM1-010

$7.70

11

WASHER, SEALING (8MM)

90474-333-000

$3.30

12

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

13

PIN, DOWEL (10X28)

90701-399-000

$2.94

14

BEARING, RADIAL BALL (6205-2NSG)

91006-KAB-004

$40.85

15

OIL SEAL (34X52X5) (NOK)

91253-KM1-003

$9.18

16

OIL SEAL (27.9X40X8) (ARAI)

91261-KM1-003

$9.55

17

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

18

O-RING (18X2.6) (ARAI)

91306-KK4-003

$2.92

19

CLAMP, TUBE (D10)

95002-41000-08

$2.41

20

BULK HOSE, VACUUM (5.5X3000) (5.3X170)

95005-55003-20M

$34.09

21

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

22

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

23

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

24

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

25

BEARING, RADIAL BALL (6302)

96100-63020-00

$8.91

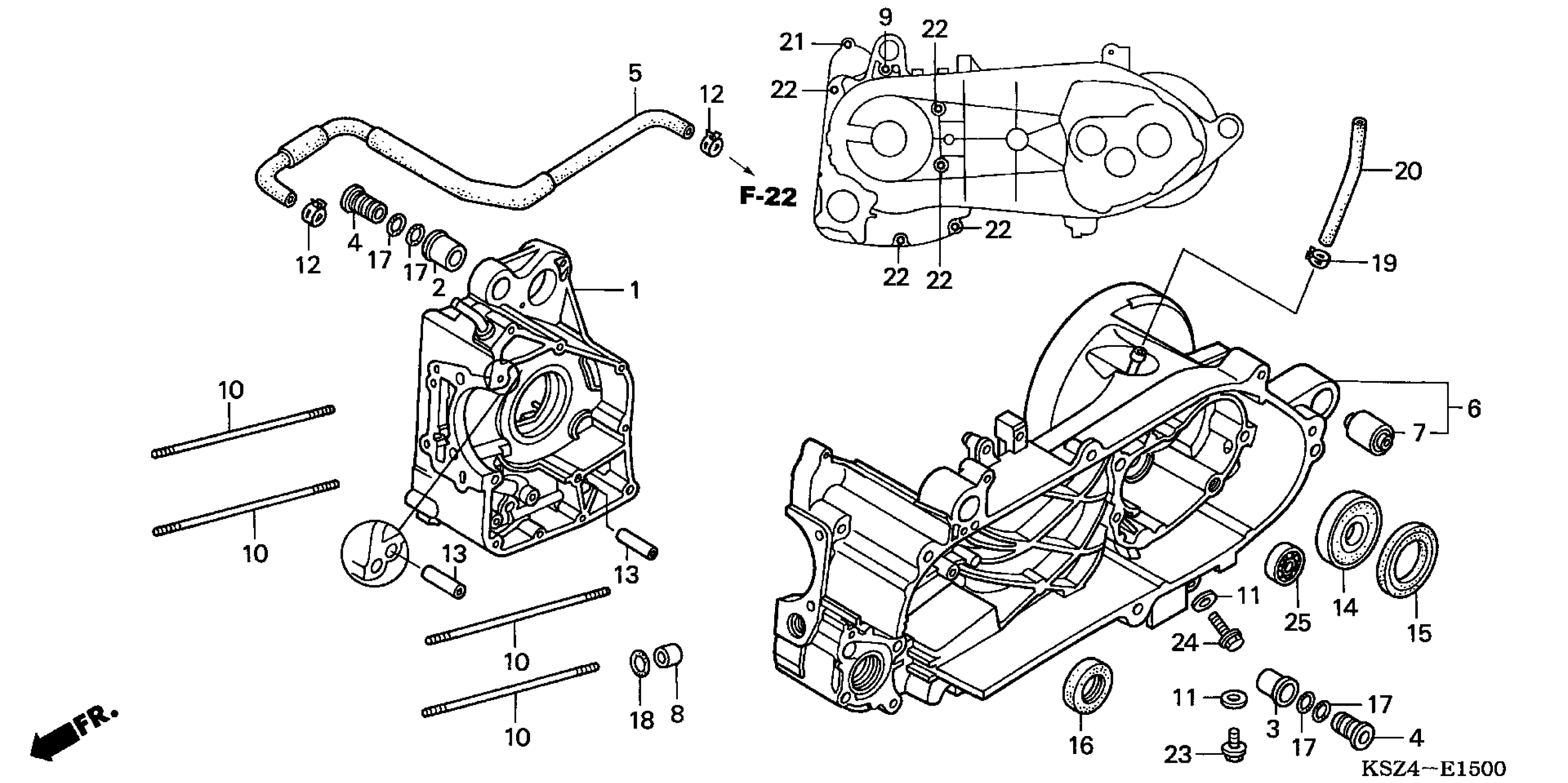

Honda NSS250AAC (07) MOTOR SCOOTER, JPN, VIN# JH2MF064-7K500001 CRANKCASE Diagram
