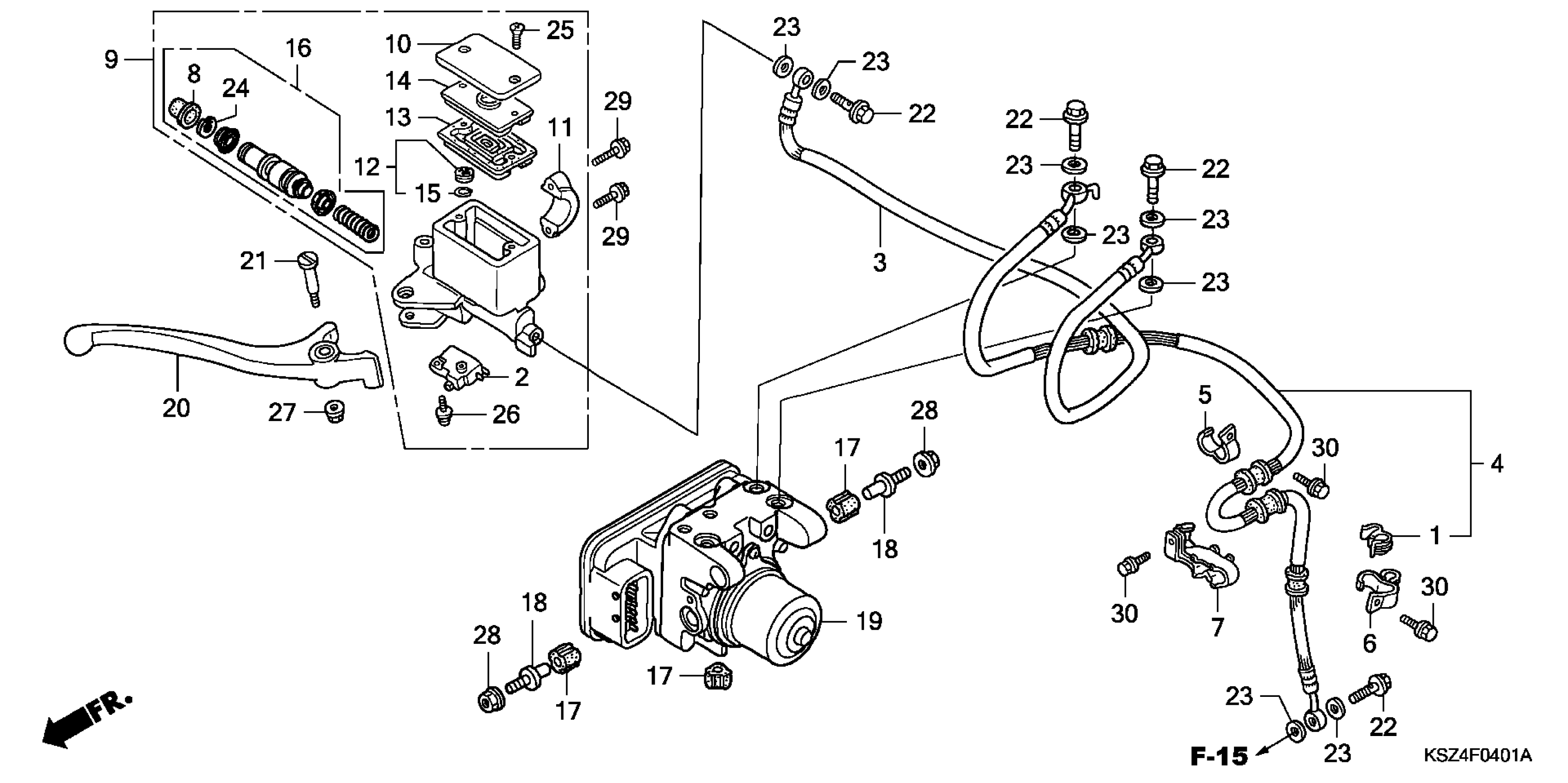

Honda NSS250AAC (05) REFLEX, JPN, VIN# JH2MF064-5K300001 TO JH2MF064-5K399999 FRONT BRAKE MASTER CYLINDER (ABS) Diagram

#

Description
Price

1

CLAMP, PIPE

17368-KV7-671

$2.12

2

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

3

HOSE A, FR. BRAKE

45125-KPB-751

Unavailable

4

HOSE B, FR. BRAKE

45126-KPB-752

Unavailable

5

CLIP A, BRAKE HOSE

45127-KFG-000

$2.94

6

CLIP, BRAKE HOSE

45130-KPB-750

Unavailable

7

CLAMP, BRAKE HOSE

45135-KPB-750

$6.42

8

BOOT

45504-410-003

$10.93

9

MASTER CYLINDER SUB-ASSY., FR.

45510-KPB-641

$230.62

10

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

10

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

11

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

12

SEPARATOR

45518-KY1-701

$6.32

13

DIAPHRAGM

45520-MG7-006

$9.52

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

15

CLIP

45523-KY1-701

$1.70

16

MASTER CYLINDER SET

45530-471-831

Unavailable

17

RUBBER, ABS MOUNTING

57101-S2A-003

$5.30

18

BOLT, ABS MOUNTING

57102-S2A-003

$11.99

19

MODULATOR ASSY., ABS

57110-KPB-754

Unavailable

20

LEVER, R. HANDLE

53175-MK7-671

$16.06

21

BOLT, HANDLE LEVER

90114-KT7-006

$8.12

22

BOLT, OIL (10X22)

90145-MS9-612

$6.82

23

WASHER, OIL BOLT

90545-300-000

$3.72

24

CIRCLIP

90651-MA5-671

$2.38

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

26

SCREW-WASHER (4X12)

93893-04012-07

$1.22

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

27

NUT, FLANGE (6MM)

94050-06000

$0.59

28

NUT-WASHER (6MM)

94071-06080

$1.33

29

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

30

BOLT, FLANGE (6X12)

96300-06012-00

$0.86
