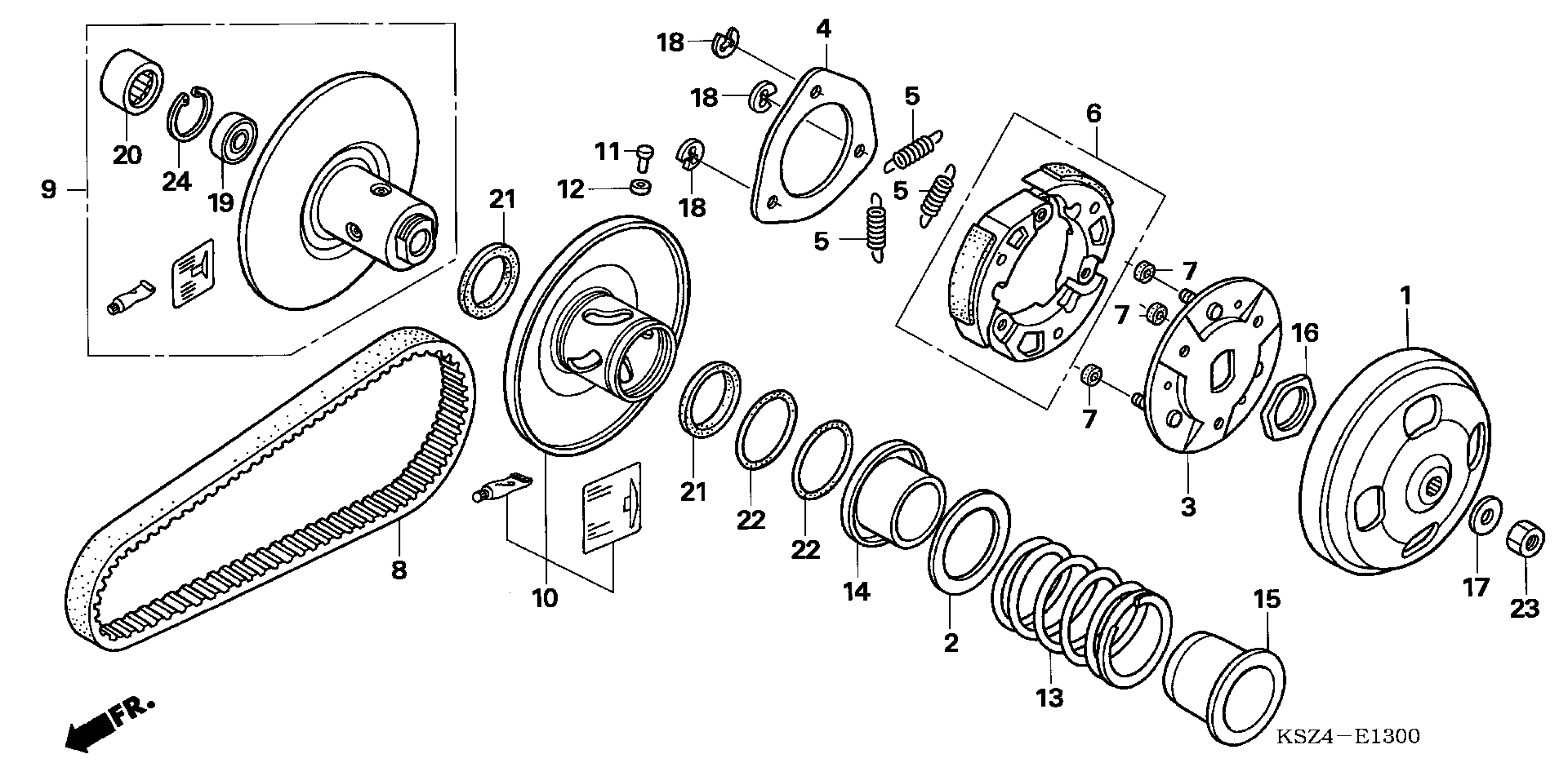

Honda NSS250AAC (05) REFLEX, JPN, VIN# JH2MF064-5K300001 TO JH2MF064-5K399999 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-KFG-000

$63.11

2

SEAT, DRIVEN SPRING

22109-KFG-000

Unavailable

3

PLATE, DRIVE

22350-KFG-000

$33.95

4

PLATE, CLUTCH SIDE

22361-KFG-000

$15.79

5

SPRING, CLUTCH

22401-KFG-000

$3.08

6

WEIGHT SET, CLUTCH

22535-KFG-000

$59.02

7

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

8

BELT, DRIVE This part replaces 23100-KFG-003.

23100-KFG-641

$117.87

9

FACE SET, DRIVEN

23205-KPB-000

Unavailable

10

FACE SET, MOVABLE DRIVEN

23224-KPB-000

$78.15

11

PIN, ROLLER GUIDE

23225-KM1-010

$2.92

12

ROLLER, GUIDE

23226-KM1-010

$4.15

13

SPRING, DRIVEN FACE

23233-KPB-000

$16.03

14

COLLAR, SEAL

23237-KFG-000

$8.16

15

COLLAR, SPRING

23238-KFG-010

Unavailable

16

NUT, SPECIAL (30MM)

90202-KM1-000

$6.69

17

WASHER, PLAIN (12MM)

90473-KG8-000

Unavailable

18

CIRCLIP (7MM)

90605-166-720

$1.80

19

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$24.58

19

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

20

BEARING, NEEDLE (25X33X18)

91002-KPB-003

$17.36

21

SEAL, DRIVEN FACE 4

91211-KM1-005

$8.66

22

O-RING (47X1.9) (NOK)

91352-KM1-003

$2.92

22

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.92

23

NUT, HEX. (12MM)

94030-12200

$1.66

24

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
