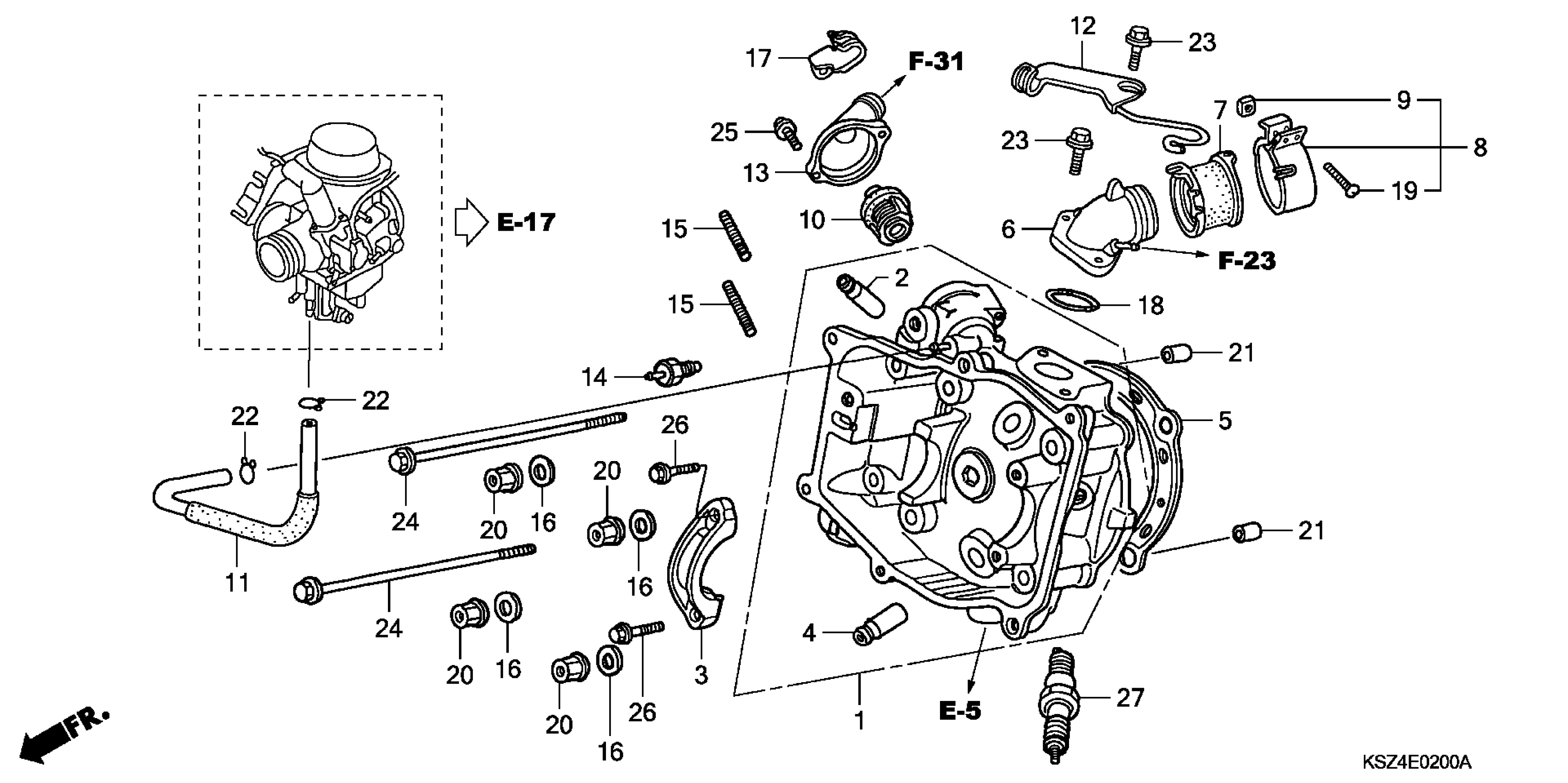

Honda NSS250AAC (05) REFLEX, JPN, VIN# JH2MF064-5K300001 TO JH2MF064-5K399999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-KPB-000

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-KE7-305

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

3

HOLDER, CAM

12211-KAB-000

$22.36

4

GUIDE, EX. VALVE (OVER SIZE)

12245-KS4-305

Unavailable

5

GASKET, CYLINDER HEAD

12251-KAB-013

$19.71

6

PIPE, INLET

16210-KAB-770

Unavailable

7

INSULATOR, CARBURETOR

16211-KFG-000

$16.80

8

BAND, INSULATOR

16219-KAB-770

Unavailable

9

NUT, SQUARE (5MM)

16222-MR5-670

$1.81

10

THERMOSTAT ASSY.

19300-KM1-003

$58.00

11

TUBE, WATER (3.5X260)

19313-KFG-000

Unavailable

12

CLAMP, THERMOSTAT TUBE

19315-KFG-000

$5.96

13

COVER, THERMOSTAT

19315-KM1-000

Unavailable

14

THERMO UNIT (DENSO)

37750-PC1-004

$73.04

15

BOLT, SPECIAL STUD (39MM)

90033-KAB-770

$4.03

16

WASHER, SEALING (8MM)

90441-469-000

$4.92

17

CLIP, FUEL TUBE

90651-ZA8-900

$2.83

18

O-RING (34X2.5) (ARAI)

91306-KAB-003

$2.91

19

SCREW, PAN (5X22)

93500-05022-0G

$0.84

20

NUT, FLANGE (8MM)

94050-08000

$0.86

21

PIN, DOWEL (10X16)

94301-10160

$2.24

22

CLIP, TUBE (B7)

95002-02070

$1.59

23

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

24

BOLT, FLANGE (6X130)

95701-06130-00

$2.85

25

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

26

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

27

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.00

27

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.25

27

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

27

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.25

27

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.00

27

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.25
