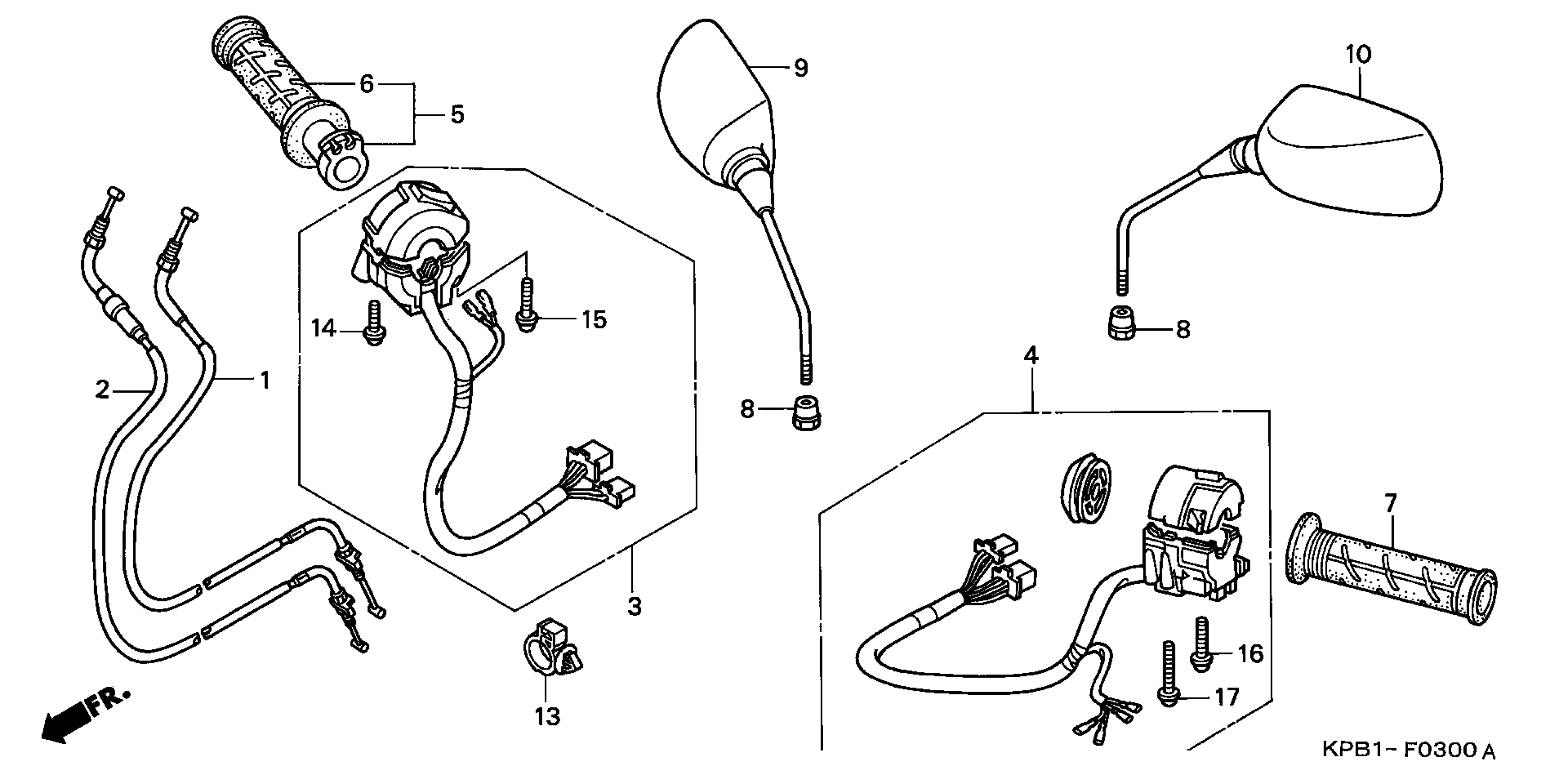

Honda NSS250AAC (03) MOTOR SCOOTER, JPN, VIN# JH2MF064-3K100001 SWITCH@CABLE Diagram

CABLE B, THROTTLE

17920-KPB-010

$41.05

CABLE A, THROTTLE

17910-KPB-010

$41.05

SW, STARTER & STOP This part replaces 35013-KPB-670.

35013-KPB-674

Unavailable

SWITCH SET, TURN SIGNAL

35020-KPB-670

Unavailable

GRIP, THROTTLE

53140-KPB-000

$34.38

GRIP, R. HANDLE (NA USE ALT:53140-MCF-305)

53165-MY9-890

Unavailable

GRIP, L. HANDLE

53166-MY9-890

$18.20

NUT, LOCK

90314-443-761

$7.11

MIRROR, R.

88210-KPB-003

Unavailable

MIRROR, L.

88220-KPB-003

Unavailable

CLAMP, HARNESS

90652-HC4-003

$5.95

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X25)

93892-05025-07

$1.49

SCREW-WASHER (5X35)

93892-05035-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49
