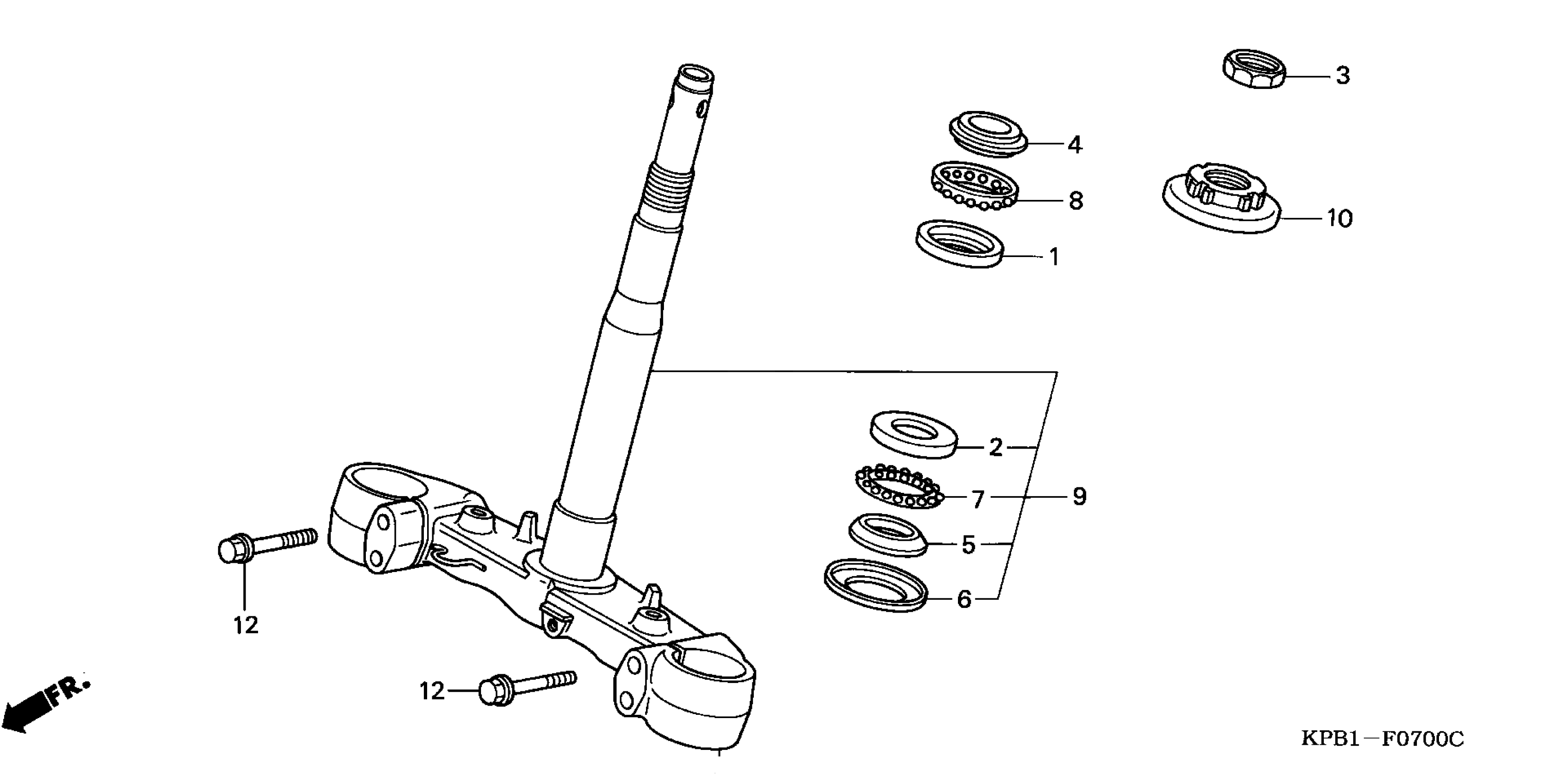

Honda NSS250AAC (03) MOTOR SCOOTER, JPN, VIN# JH2MF064-3K100001 STEERING STEM Diagram

#

Description

Price

1

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING BALL (LOWER)

50302-GN5-900

$10.40

3

NUT, STEERING STEM LOCK

50306-GN5-900

$8.15

4

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

5

RACE, STEERING CONE (LOWER)

53212-GN5-900

$11.25

6

DUST SEAL, STEERING HEAD

53214-GN5-900

$4.72

7

BALL ASSY., STEERING STEEL

53215-GZ4-671

$41.31

8

BALL ASSY., STEERING STEEL

53215-KL8-901

$33.59

9

STEM SET, STEERING

53219-KPB-010

Unavailable

10

THREAD, STEERING HEAD TOP

53220-KE8-010

$31.86

12

BOLT, FLANGE (10X55)

95801-10055-07

$1.89
