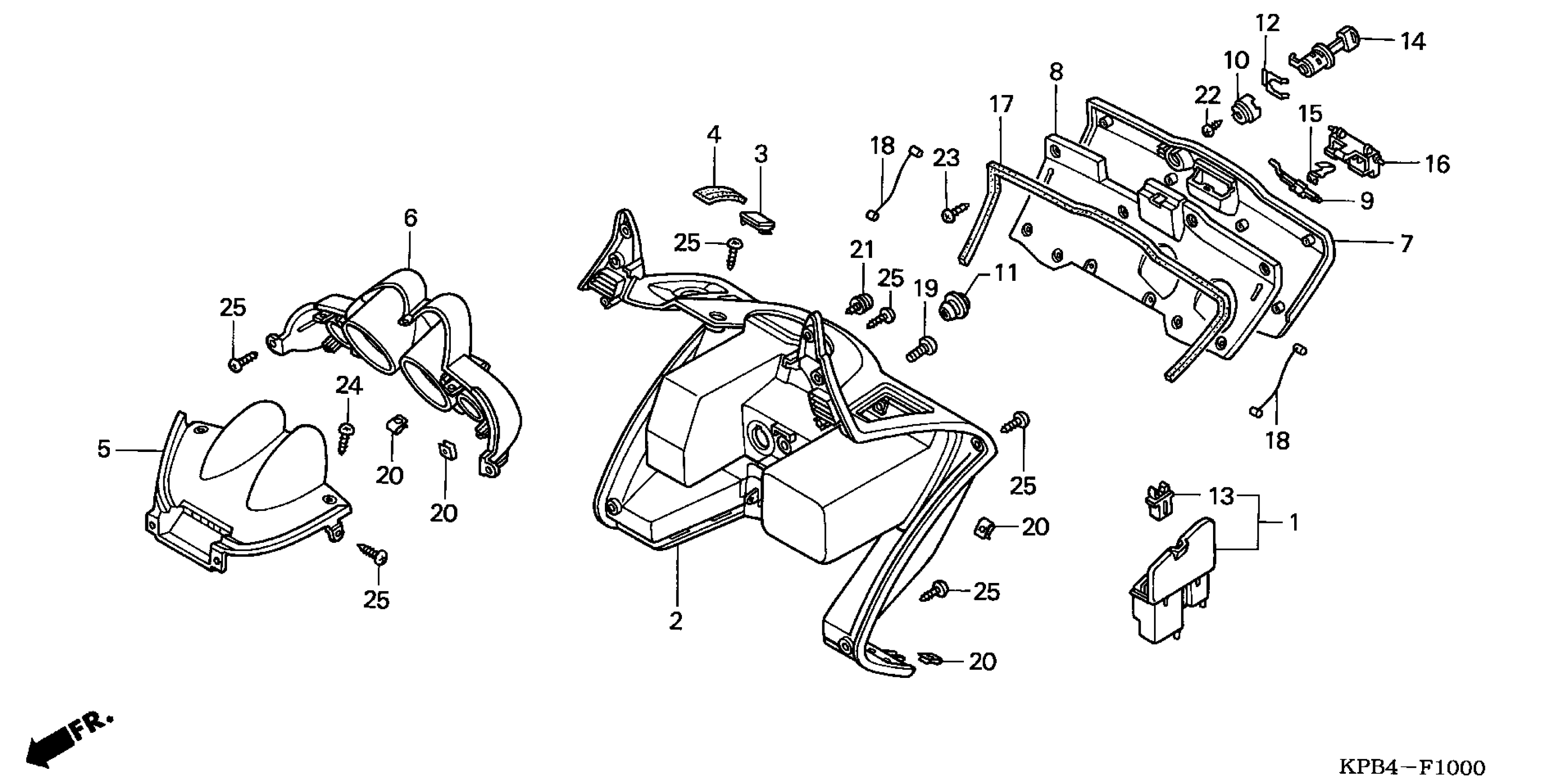

Honda NSS250AAC (03) MOTOR SCOOTER, JPN, VIN# JH2MF064-3K100001 INNER BOX Diagram

#

Description
Price

1

BOX ASSY., TICKET *NH1* (BLACK)

64250-KPB-000ZB

Unavailable

2

COVER (INNER) *NH1* (BLACK)

64310-KPB-000ZB

$133.59

3

CAP, SWITCH HOLE *NH1* (BLACK)

64311-KPB-000ZB

Unavailable

4

COVER, BRAKE LOCK

64315-KPB-000

Unavailable

5

VISOR, FR. METER *NH1* (BLACK)

64336-KPB-000ZB

Unavailable

6

VISOR, RR. METER *NH1* (BLACK)

64337-KPB-000ZB

Unavailable

7

LID (OUTER) *NH1* (INNER LID) (BLACK)

64405-KPB-000ZB

$81.16

8

LID (INNER) *NH1* (INNER LID) (BLACK)

64415-KPB-000ZB

$21.88

9

ARM, LID LOCK

64416-KPB-000

$5.34

10

CAM, LID LOCK

64417-KPB-000

Unavailable

11

GROMMET B, SIDE PANEL

70529-657-670

$14.43

12

SPRING, LOCK KEY SETTING

75581-673-000

$6.43

13

LATCH, TICKET BOX

77235-KPB-000

$3.22

14

LOCK ASSY., BOX LID (INNER)

77260-KPB-000

$19.49

15

SPRING, GLOVE BOX

77504-SJ6-013

$4.28

16

LOCK, DOCUMENT *NH1* (BLACK)

77507-S70-013ZD

$7.10

17

SEAL, BOX (INNER)

81146-KPB-010

$14.81

18

STOPPER, LID

81219-KPB-000

$5.06

19

SCREW, SPECIAL (6X8)

90112-KFG-000

$2.91

20

NUT, SPRING (4MM)

90302-SA4-003

$5.32

21

SCREW-WASHER (5X10)

93891-05010-07

$1.06

22

SCREW, TAPPING (3X8)

93901-22110

$0.51

23

SCREW, TAPPING (4X10)

93903-342G0

$2.16

24

SCREW, TAPPING (4X12)

93903-34380

$2.12

25

SCREW, TAPPING (4X16)

93903-34480

$0.90
