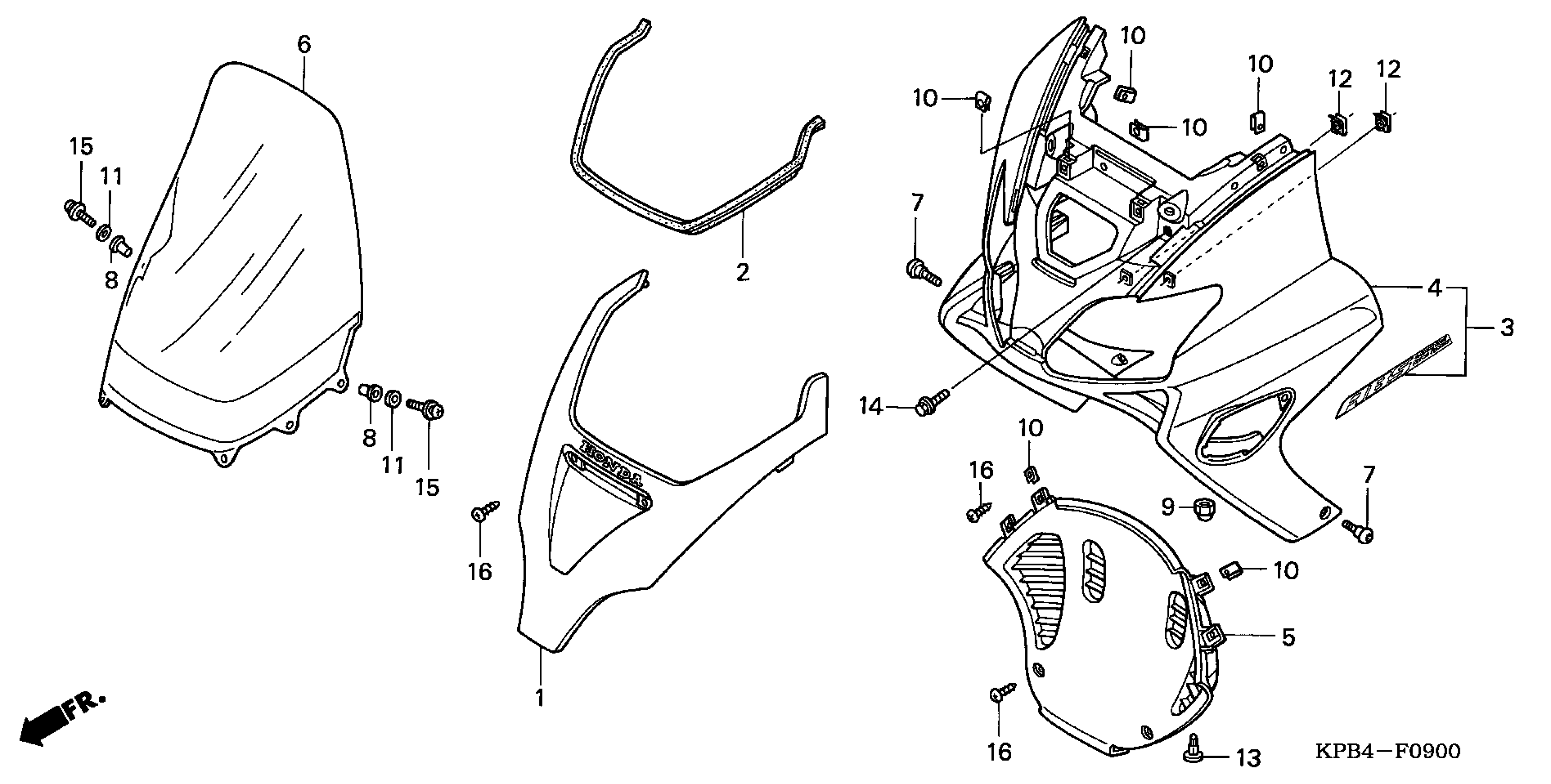

Honda NSS250AAC (03) MOTOR SCOOTER, JPN, VIN# JH2MF064-3K100001 FRONT COVER Diagram

GARNISH SET, SCREEN *Y106* (WL) (CLIPPER YELLOW)

64100-KPB-J10ZG

Unavailable

MOLDING, WINDSCREEN

64105-KPB-J10

$12.49

COVER SET, FR. (TYPE1) (WL)

64300-KPB-A10ZA

Unavailable

COVER, FR. (LOWER) *NH1* (BLACK)

64351-KPB-000ZG

$44.36

WINDSCREEN

67101-KPB-670

Unavailable

SCREW, SPECIAL (5X17)

90109-KW3-000

$3.01

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

NUT, OPEN STAY (6MM)

90301-KPB-000

$3.21

NUT, SPRING (4MM)

90302-SA4-003

$5.44

WASHER, THRUST (5MM)

90504-964-000

$1.90

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.80

BOLT-WASHER (6X16)

93404-06016-08

$1.55

BOLT-WASHER (6X16) This part replaces 93414-06016-08.

93404-06016-08

$1.55

SCREW-WASHER (5X20)

93891-05020-08

$1.49

SCREW, TAPPING (4X16)

93903-34480

$1.49
