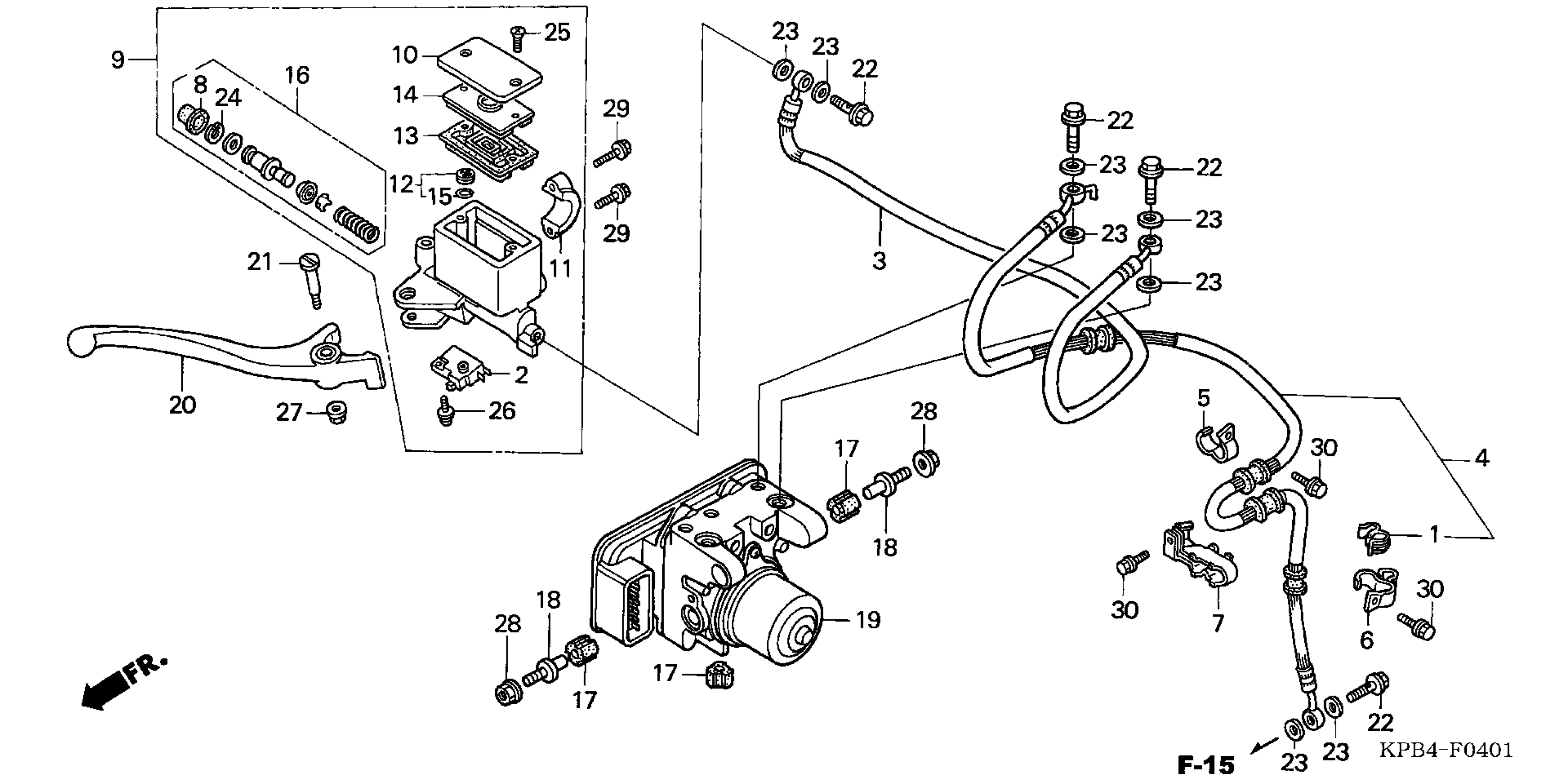

Honda NSS250AAC (03) MOTOR SCOOTER, JPN, VIN# JH2MF064-3K100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

CLAMP, PIPE

17368-KV7-671

$2.15

2

SWITCH ASSY., FR. STOP

35340-MA5-671

$22.48

3

HOSE A, FR. BRAKE

45125-KPB-751

Unavailable

4

HOSE B, FR. BRAKE

45126-KPB-752

Unavailable

5

CLIP A, BRAKE HOSE

45127-KFG-000

$2.99

6

CLIP, BRAKE HOSE

45130-KPB-750

Unavailable

7

CLAMP, BRAKE HOSE

45135-KPB-750

$6.51

8

BOOT

45504-410-003

$11.17

9

MASTER CYLINDER SUB-ASSY., FR.

45510-KPB-641

$234.01

10

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.97

10

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.97

11

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

12

SEPARATOR

45518-KY1-701

$6.41

13

DIAPHRAGM

45520-MG7-006

$9.73

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

15

CLIP

45523-KY1-701

$1.72

16

MASTER CYLINDER SET

45530-471-831

$36.42

17

RUBBER, ABS MOUNTING

57101-S2A-003

$6.69

18

BOLT, ABS MOUNTING

57102-S2A-003

$15.53

19

MODULATOR ASSY., ABS This part replaces 57110-KPB-753.

57110-KPB-754

Unavailable

20

LEVER, R. HANDLE

53175-MK7-671

$16.42

21

BOLT, HANDLE LEVER

90114-KT7-006

$8.24

22

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

23

WASHER, OIL BOLT

90545-300-000

$5.79

24

CIRCLIP

90651-MA5-671

$2.38

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

26

SCREW-WASHER (4X12)

93893-04012-07

$1.32

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

27

NUT, FLANGE (6MM)

94050-06000

$0.60

28

NUT-WASHER (6MM)

94071-06080

$1.46

29

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

30

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable
