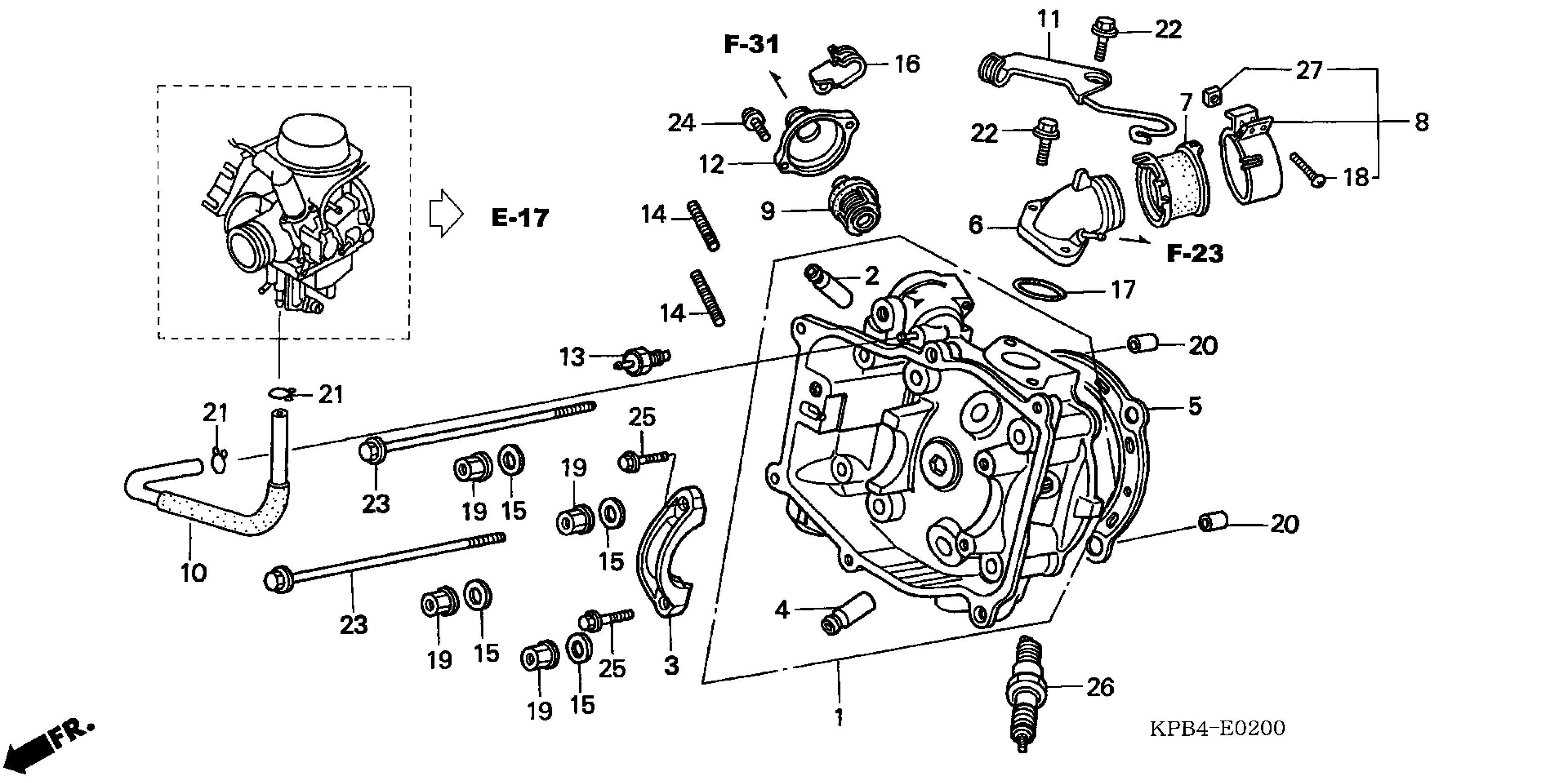

Honda NSS250AAC (03) MOTOR SCOOTER, JPN, VIN# JH2MF064-3K100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-KPB-000

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

3

HOLDER, CAM

12211-KAB-000

$24.56

4

GUIDE, EX. VALVE (OVER SIZE)

12245-KS4-305

Unavailable

5

GASKET, CYLINDER HEAD

12251-KAB-013

$21.64

6

PIPE, INLET

16210-KAB-770

Unavailable

7

INSULATOR, CARBURETOR

16211-KFG-000

$18.44

8

BAND, INSULATOR

16219-KAB-770

Unavailable

9

THERMOSTAT ASSY.

19300-KM1-003

$64.58

10

TUBE, WATER (3.5X260)

19313-KFG-000

$11.84

11

CLAMP, THERMOSTAT TUBE

19315-KFG-000

$6.54

12

COVER, THERMOSTAT

19315-KM1-000

Unavailable

13

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

14

BOLT, SPECIAL STUD (39MM)

90033-KAB-770

$4.43

15

WASHER, SEALING (8MM)

90441-469-000

$5.28

16

CLIP, FUEL TUBE

90651-ZA8-900

$3.10

17

O-RING (34X2.5) (ARAI) GASKET KIT A

91306-KAB-003

$3.20

18

SCREW, PAN (5X22)

93500-05022-0G

$1.49

19

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

20

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

21

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

23

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

24

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

25

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

26

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

26

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

26

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

26

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

26

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

26

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54

27

NUT, SQUARE (5MM)

16222-MR5-670

$1.98
