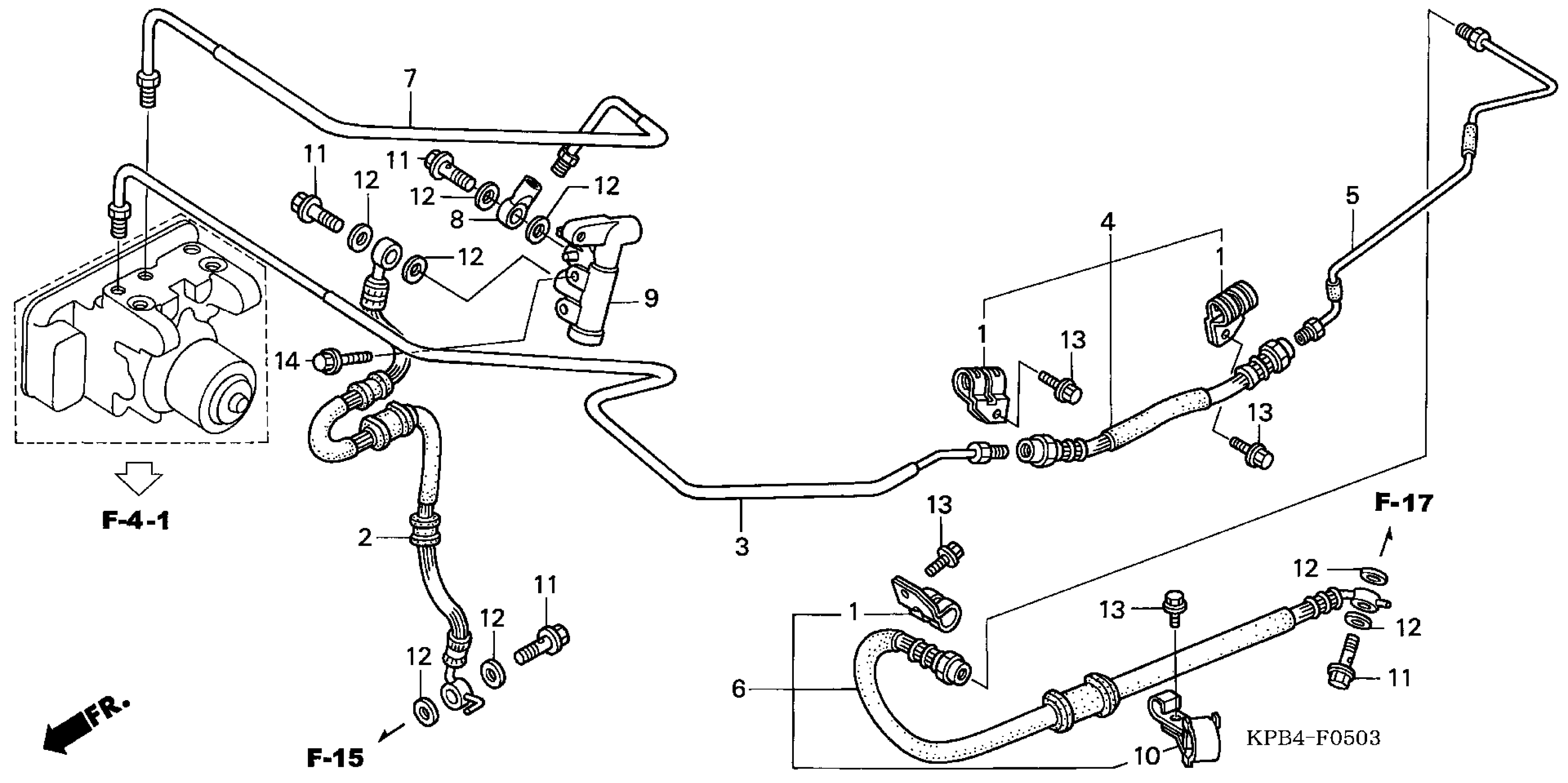

Honda NSS250AAC (02) MOTOR SCOOTER, JPN, VIN# JH2MF064-2K010001 TO JH2MF064-2K099999 REAR BRAKE PIPE (2) Diagram

#

Description
Price

1

CLAMP, RR. BRAKE HOSE

43159-KFG-000

$3.80

2

HOSE B, RR. BRAKE

43312-KPB-751

Unavailable

3

PIPE A, RR. BRAKE

43313-KPB-750

Unavailable

4

HOSE C, RR. BRAKE

43314-KPB-004

Unavailable

5

PIPE B, RR. BRAKE

43315-KFG-000

Unavailable

6

HOSE D, RR. BRAKE

43316-KPB-751

Unavailable

7

PIPE E, RR. BRAKE

43317-KPB-750

Unavailable

8

JOINT, MASTER CYLINDER PIPE (A)

43321-MY4-003

$39.13

9

VALVE ASSY., DELAY This part replaces 46300-KPB-752.

46300-KPB-753

$153.77

9

VALVE ASSY., DELAY

46300-KPB-753

$153.77

10

CLAMP, BRAKE HOSE

52115-KPB-750

Unavailable

11

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

12

WASHER, OIL BOLT

90545-300-000

$3.99

13

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

14

BOLT, FLANGE (6X28)

95701-06028-08

$2.08
