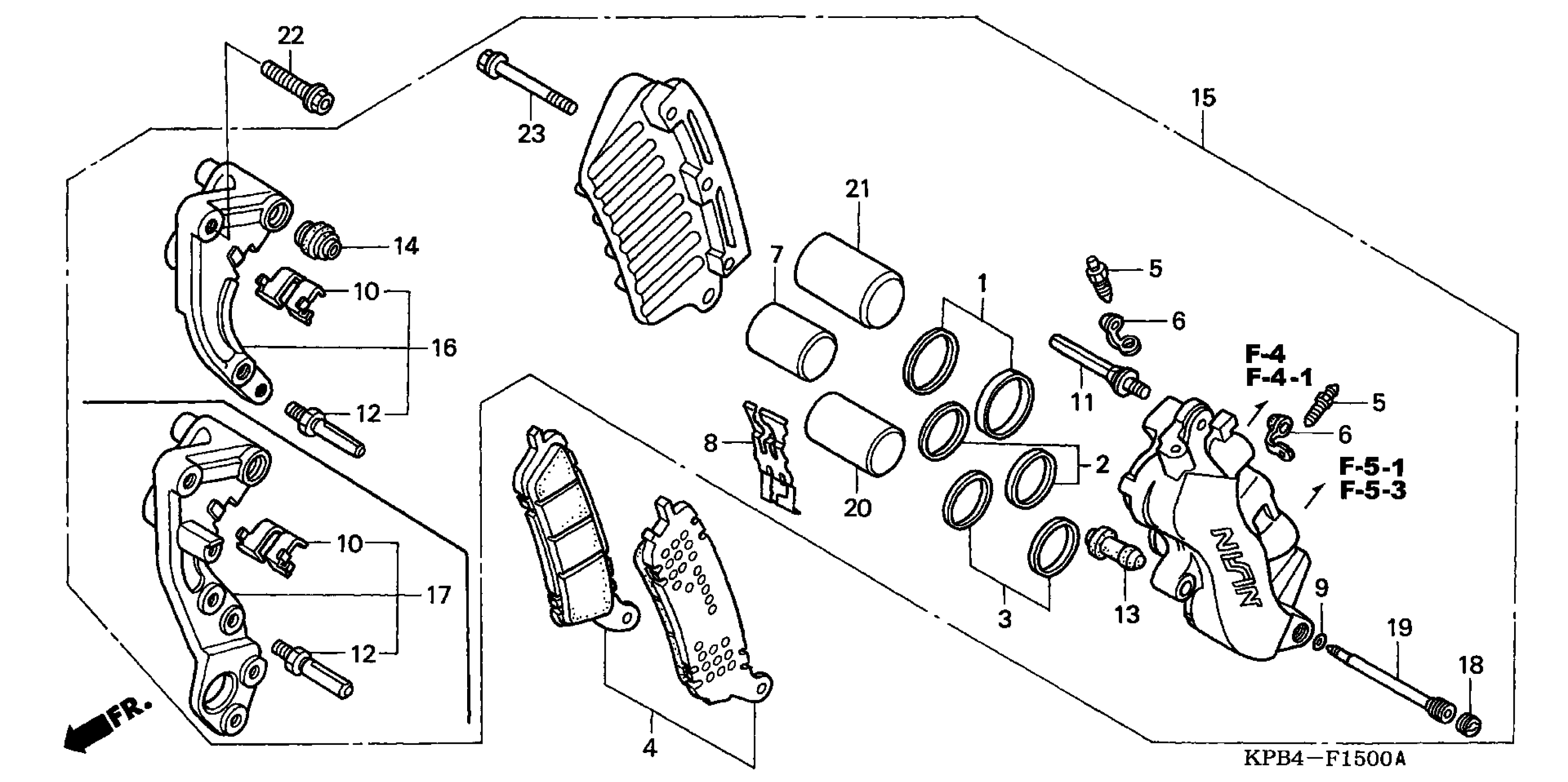

Honda NSS250AAC (01) MOTOR SCOOTER, JPN, VIN# JH2MF064-1K000001 TO JH2MF064-1K099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

PAD SET This part replaces 06455-KPB-406.

06455-KPB-416

$54.94

PAD SET

06455-KPB-416

$54.94

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MZ2-016

$7.88

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOLT, PIN

45131-166-016

$7.28

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR.

45150-KPB-752

$553.60

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KPB-752

$176.00

PLUG, PIN

45203-MCC-006

$2.66

PIN, HANGER

45215-MAJ-G41

$6.15

PISTON B (25X35)

45217-MAJ-G41

$33.92

PISTON B (27X35)

45218-MAJ-G41

$36.21

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.17
