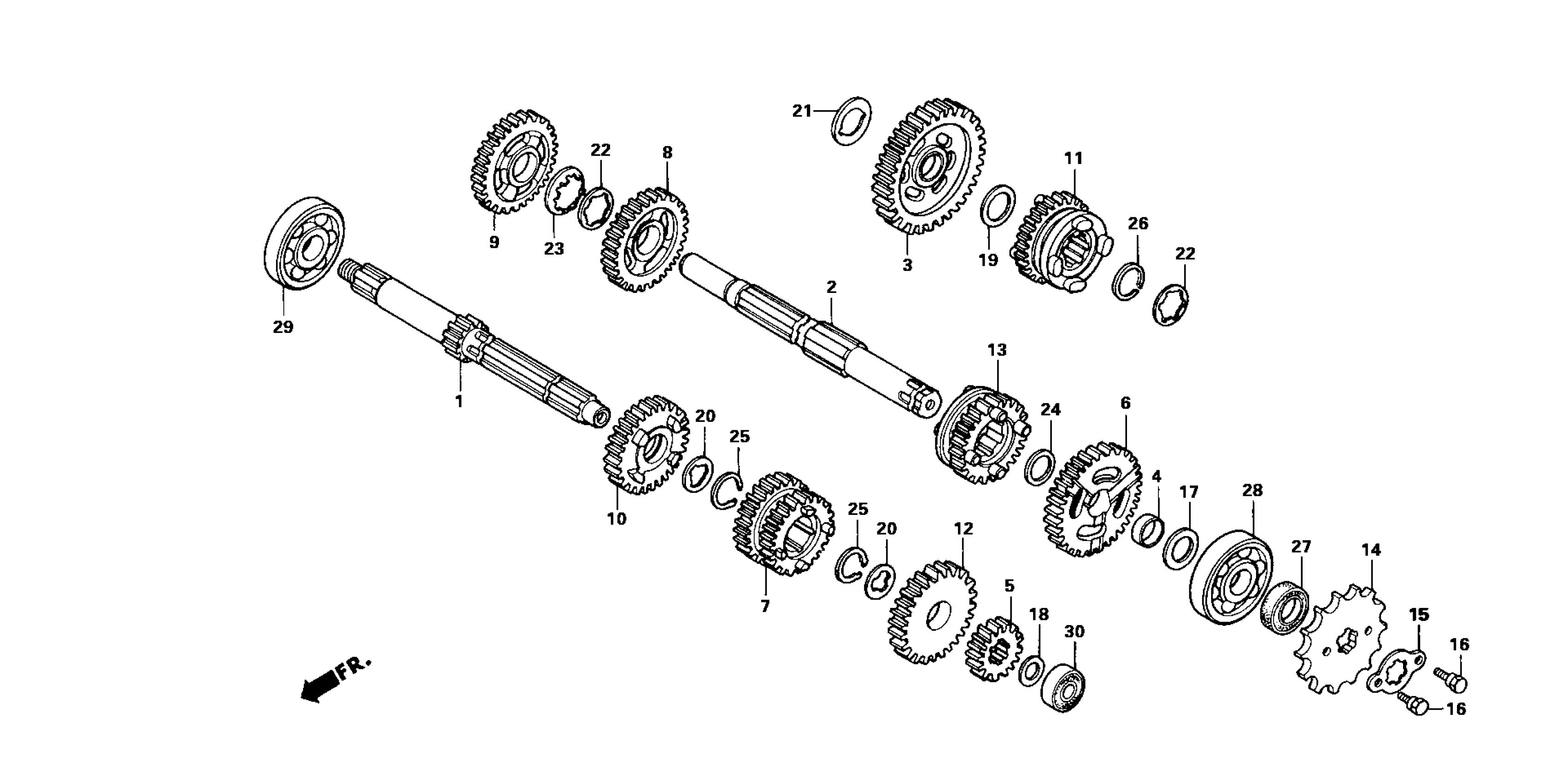

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, MAIN

23211-GT4-970

$70.90

2

COUNTERSHAFT, TRANSMISSION

23221-166-601

Unavailable

3

GEAR (C1ST)

23420-166-600

Unavailable

4

BUSH (17MM)

23431-166-600

Unavailable

5

GEAR (M2ND)

23441-166-600

$31.77

6

GEAR (C?2ND)

23451-166-600

$49.38

7

GEAR (M?3RD?4TH)

23461-166-600

Unavailable

8

GEAR (C-3RD)

23471-166-600

Unavailable

9

GEAR (C-4TH)

23482-166-600

Unavailable

10

GEAR (M-5TH)

23491-166-600

$46.16

11

GEAR (C-5TH)

23501-166-600

$56.80

12

GEAR (M-6TH)

23511-166-600

$46.16

13

GEAR (C-6TH)

23515-166-600

$54.70

14

SPROCKET, DRIVE (14T)

23800-040-010

$15.30

15

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.41

16

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.29

17

WASHER, THRUST (17.2MM)

90446-357-000

$3.35

18

WASHER, THRUST (12MM)

90452-166-600

$2.17

19

WASHER, THRUST (16.5MM)

90452-437-000

$3.16

20

WASHER, SPLINE (17MM)

90461-115-000

$2.42

21

WASHER, THRUST (15MM)

90463-166-000

Unavailable

22

WASHER A, SPLINE (19MM)

90464-166-000

$3.77

23

WASHER, LOCK (19MM)

90465-166-600

$4.01

24

WASHER, THRUST (17MM)

90466-166-600

$3.17

25

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

26

CIRCLIP (19MM)

90602-166-010

$3.10

27

OIL SEAL (17X28X7) (ARAI)

91201-415-013

$5.14

28

BEARING, RADIAL BALL (6303)

96100-63030-00

$13.61

29

BEARING, RADIAL BALL (6303)

96120-63030-00

Unavailable

30

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.22
