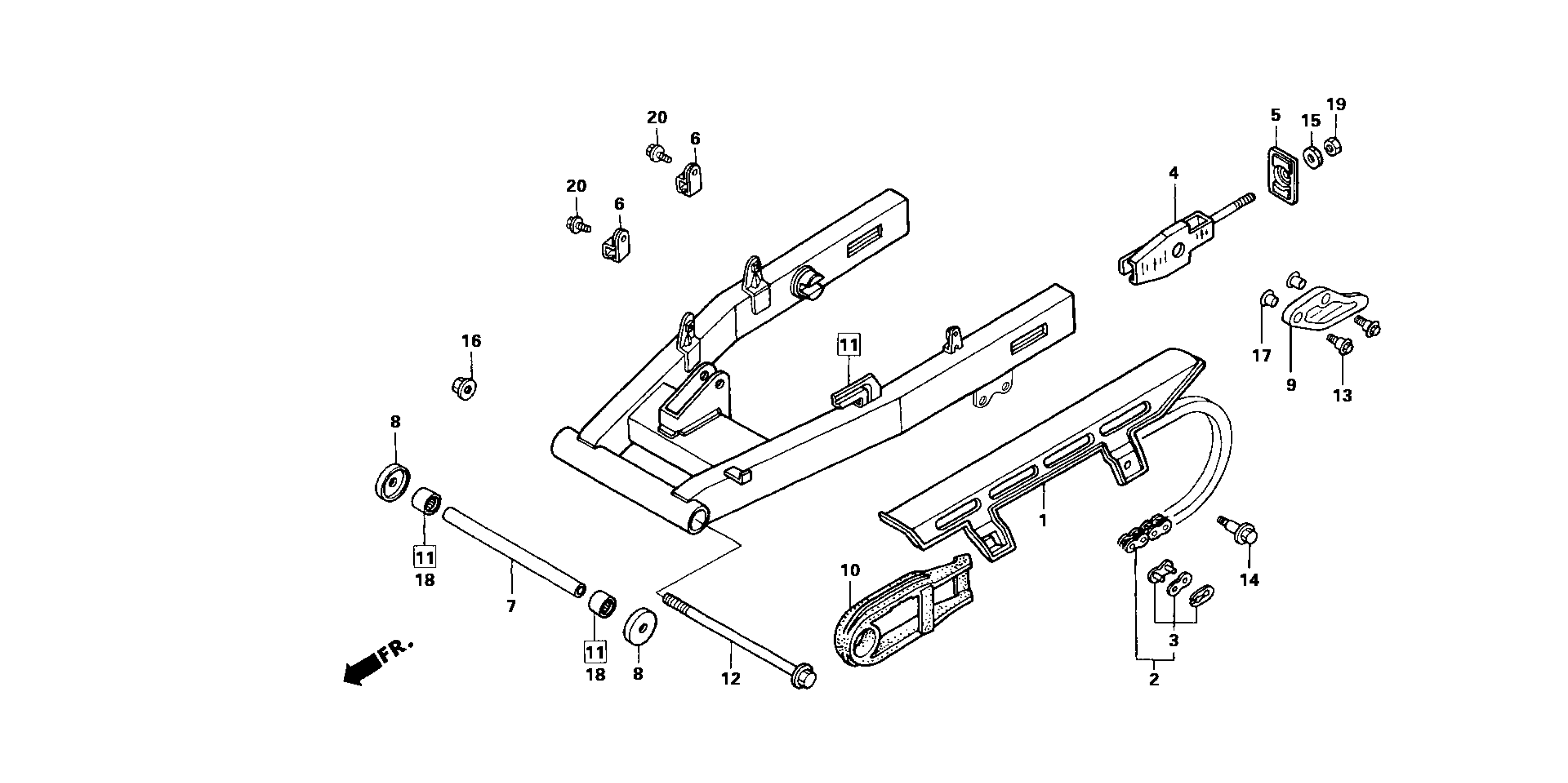

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN This part replaces 40510-GT4-010.

40510-GT4-020

Unavailable

CASE, DRIVE CHAIN

40510-GT4-020

Unavailable

CHAIN, DRIVE (RK420MZ-108RJ) (RK EXCEL)

40530-GT4-972

Unavailable

CHAIN, DRIVE (420M-108) (DAIDO)

40530-166-611

Unavailable

MASTER LINK (DAIDO)

40531-098-003

$3.74

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

ADJUSTER, CHAIN

40543-GEY-910

Unavailable

ADJUSTER, CHAIN This part replaces 40543-GS3-000.

40543-GEY-910

Unavailable

CAP, SWINGARM END

40546-GS3-000

Unavailable

CLAMP, BRAKE HOSE

52115-GT4-970

$2.25

COLLAR, SWINGARM PIVOT

52141-GT4-970

Unavailable

DUST SEAL (31X41)

52144-GT4-971

Unavailable

GUARD, CHAIN

52156-GAN-670

$42.30

SLIDER, CHAIN

52171-GS9-000

Unavailable

SWINGARM SET

52200-NLA-700

Unavailable

BOLT, FLANGE (12X252)

90103-GT4-000

$15.52

BOLT, FLANGE (6MM)

90110-GE0-710

$5.11

BOLT, FLANGE (6MM)

90111-187-000

$5.59

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
