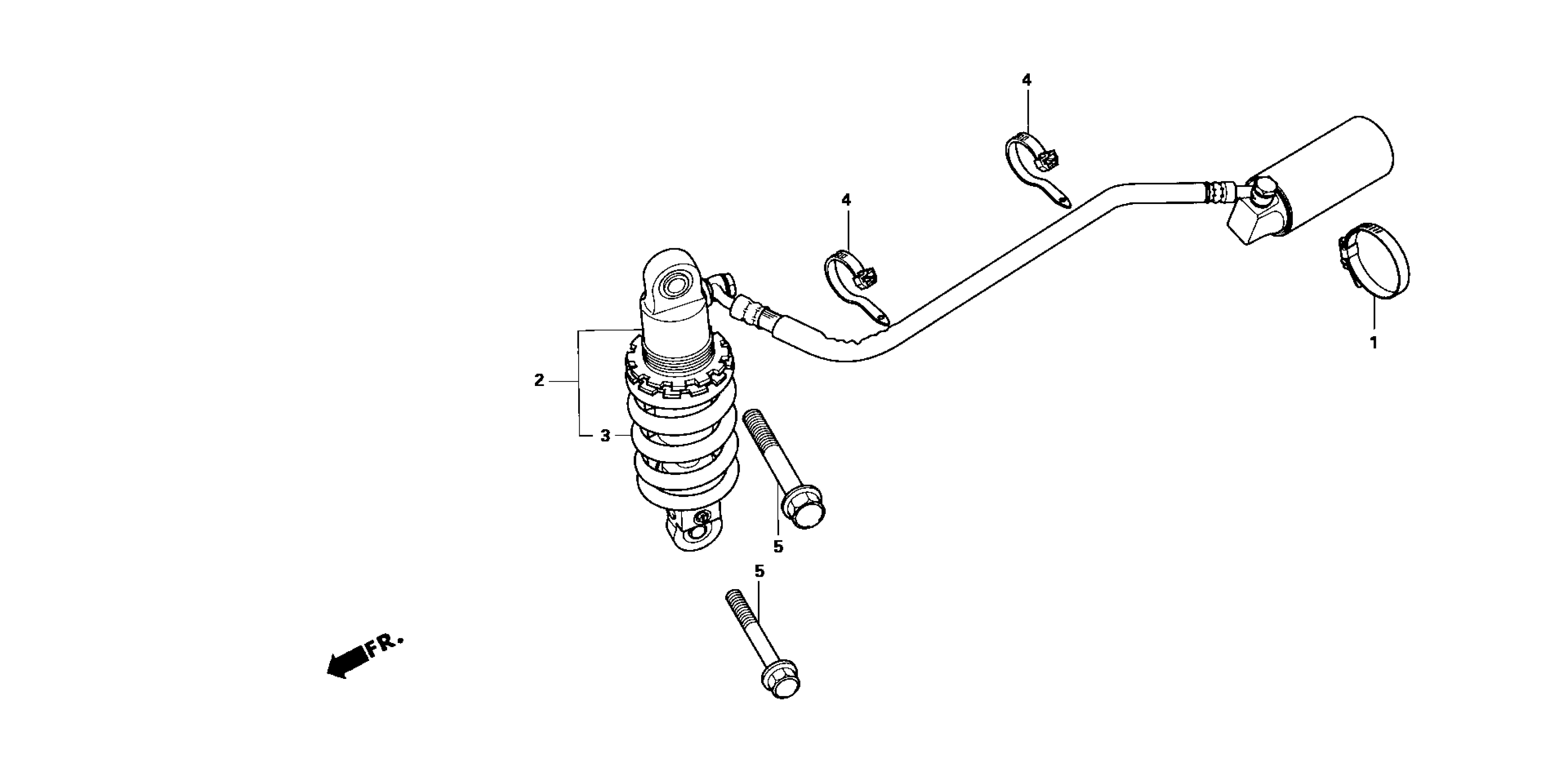

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

BAND, SUB-TANK

50252-MW0-000

$20.96

2

CUSHION ASSY., RR.

52400-NLA-701

Unavailable

3

SPRING, RR. SHOCK ABSORBER (K=18.5KGF)

52401-NLA-003

$133.48

3

SPRING, RR. SHOCK ABSORBER (K=18.0KGF) | (Optional).

52402-NLA-003

Unavailable

3

SPRING, RR. SHOCK ABSORBER (K=19.0KGF) | (Optional).

52403-NLA-003

Unavailable

4

BAND, WIRE HARNESS

90651-MA6-720

$3.47

5

BOLT, FLANGE (10X35)

96400-10035-00

$2.04
