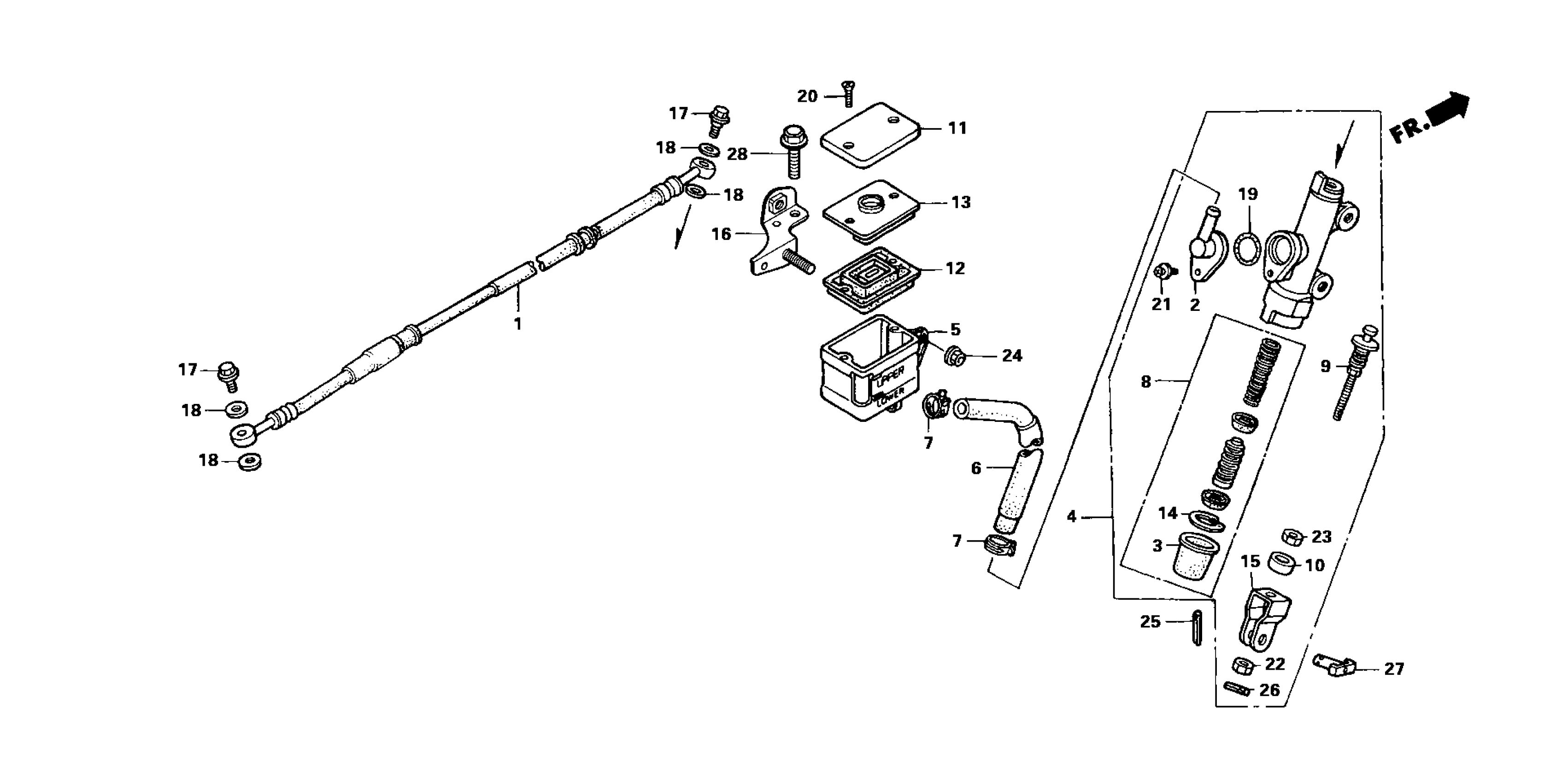

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-NLA-700

Unavailable

2

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

3

BOOT

43504-MB2-006

$9.01

4

M/CYL SUB-ASSY, RR. This part replaces 43510-GT4-971.

43510-GT4-972

$146.01

5

CUP, OIL

43511-KT8-006

$32.58

6

HOSE, MASTER CYLINDER OIL

43512-KT8-006

$18.42

7

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$11.72

8

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

8

PISTON SET, MASTER CYLINDER

43520-MJ6-315

$40.74

9

ROD, PUSH (NISSIN)

43530-KBA-921

$19.12

10

COLLAR, PUSH ROD

43532-GT4-000

$7.43

11

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

12

DIAPHRAGM

45520-MG7-006

$9.52

13

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

14

CIRCLIP

46182-500-013

$4.46

15

JOINT, BRAKE ROD

46504-MB2-006

Unavailable

16

BRACKET, MASTER CYLINDER

50350-GT4-000

$6.10

17

BOLT, OIL (10X22)

90145-MS9-612

$6.82

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

O-RING (14.8X2.4)

91212-422-006

Unavailable

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

21

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

NUT, HEX. (8MM)

94001-08000-0S

$1.19

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

NUT, FLANGE (6MM)

94050-06000

$0.59

25

PIN, SPLIT (2.0X15)

94201-20150

$0.94

26

PIN, SPRING (2X10)

94305-20102

$0.80

27

PIN D, JOINT

95015-54000

$3.95

28

BOLT, FLANGE (6X10)

95701-06010-00

$1.14
