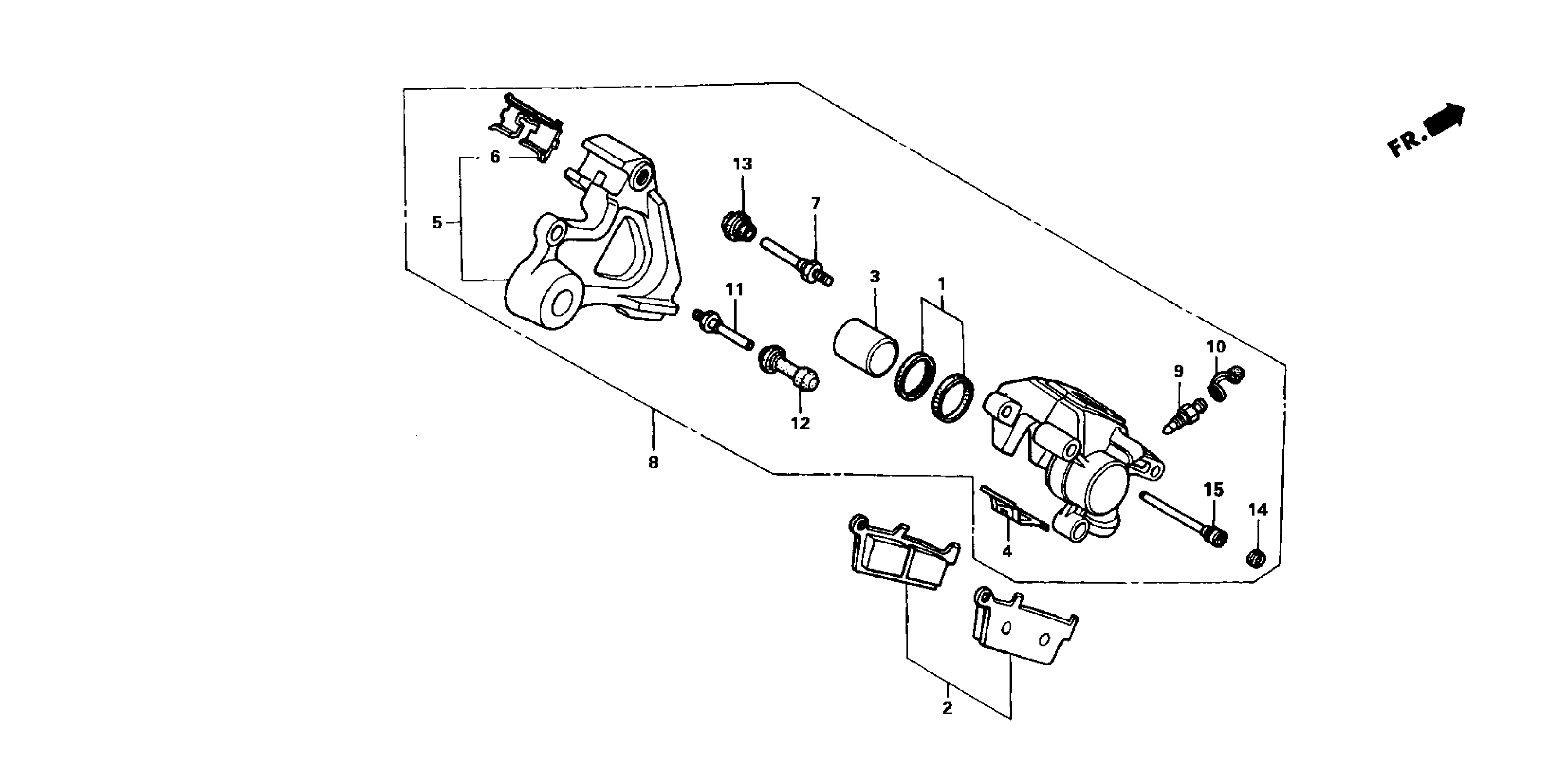

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, BRAKE This part replaces 06435-GT4-405.

06435-GT4-415

$43.01

PAD SET, BRAKE

06435-GT4-415

$43.01

PISTON

43107-MA3-006

$32.99

SPRING, PAD

43108-MY6-671

$5.28

BRACKET, RR.

43110-GT4-711

$90.61

RETAINER

43112-GT4-006

$7.05

BOLT, PIN

43131-KW3-006

$10.29

CALIPER SUB-ASSY., RR.

43150-GT4-305

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

BOLT, PIN

45131-166-016

$7.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-KA3-732

$11.52
