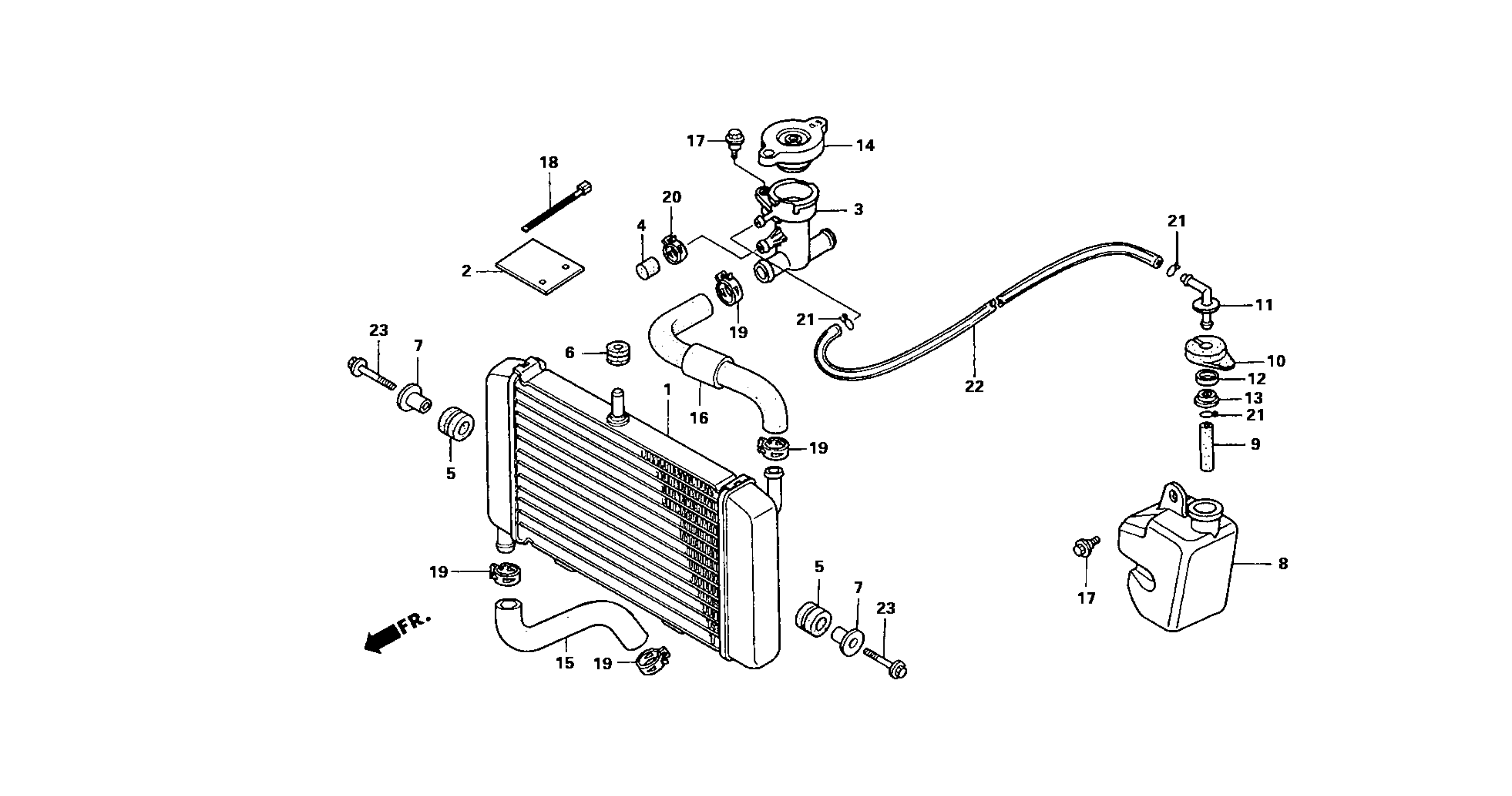

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY.

19010-NLA-003

Unavailable

2

PLATE, RADIATOR

19015-NLA-000

Unavailable

3

NECK, FILLER (TOYO)

19039-KV7-671

Unavailable

4

CAP, FILLER NECK

19042-GT4-000

$1.97

5

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$5.05

6

RUBBER, RADIATOR MOUNTING

19051-MN0-000

$4.87

7

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.91

8

TANK, RESERVE

19101-GJ1-000

Unavailable

9

HOSE, RESERVE TANK

19103-680-000

Unavailable

10

CAP, RESERVE TANK

19104-GT4-000

$3.15

11

ADAPTER, RESERVE CAP

19106-GE2-000

$11.75

12

STOPPER, RADIATOR FLUID

19107-GE2-000

$6.92

13

STOPPER A, RADIATOR FLUID

19108-GJ1-000

$3.08

14

CAP, RADIATOR FILLER This part replaces 19111-KE1-003.

19111-KE1-013

$34.86

14

CAP, RADIATOR FILLER

19111-KE1-013

$34.86

15

HOSE C, WATER

19503-NLA-000

Unavailable

16

HOSE D, WATER

19504-NLA-000

Unavailable

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

TIE-WRAP (2.4X92)

90652-ND5-000

$1.49

19

CLAMP, CANISTER HOSE

90682-SB0-671

$9.93

20

CLAMP, TUBE (D12)

95002-41200-04

$2.34

21

CLIP, TUBE (C11)

95002-70000

$1.56

22

BULK HOSE, VINYL (7X11X8000) (7X11X340)

95003-19008-10M

Unavailable

23

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
