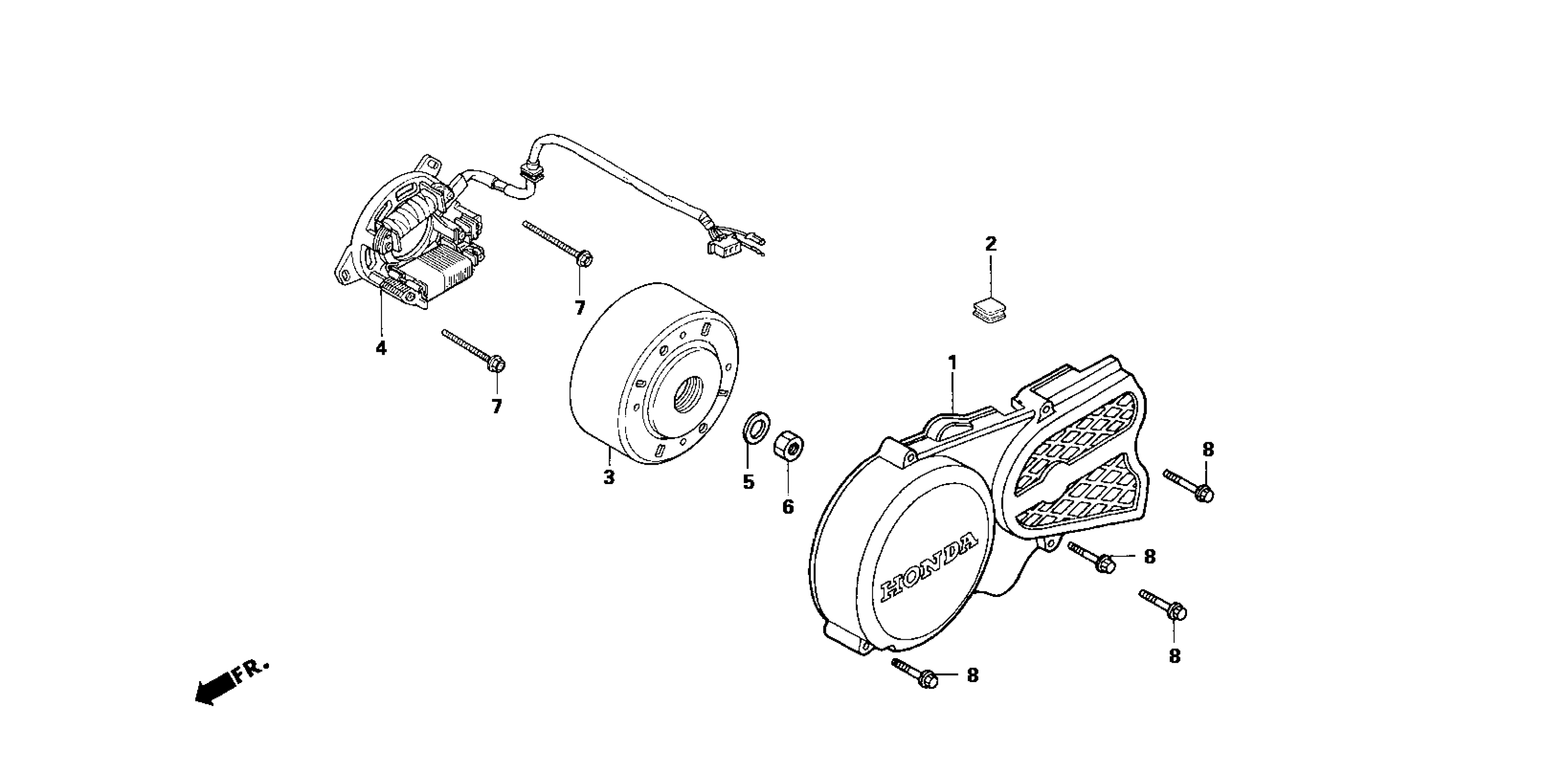

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 LEFT CRANKCASE COVER + AC GENERATOR Diagram

#

Description

Price

1

COVER, L. CRANKCASE

11340-GT4-970

Unavailable

2

RUBBER, SEAL

11345-GT5-000

$1.31

3

FLYWHEEL (MITSUBA)

31110-GJ1-008

$271.88

4

STATOR

31120-GE2-771

Unavailable

5

WASHER, PLAIN (12MM) This part replaces 90441-166-000.

90441-KR3-000

$3.62

6

NUT, HEX. (12MM)

94001-12200-0S

$0.90

7

BOLT, FLANGE (6X55)

95701-06055-00

$2.75

8

BOLT, FLANGE (6X35)

96001-06035-00

$1.29
