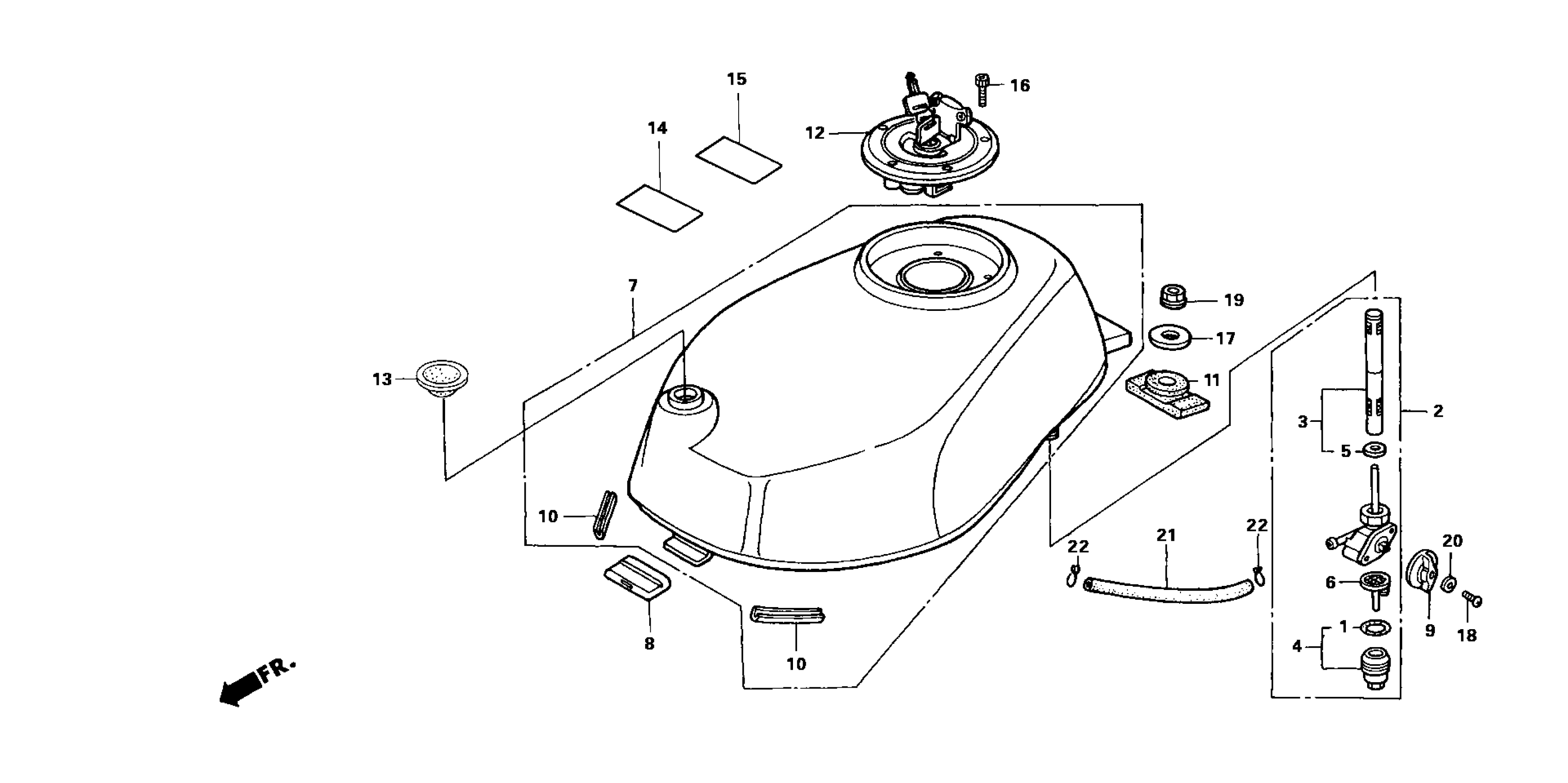

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY.

16950-GT4-710

$65.08

3

SCREEN SET, FUEL STRAINER

16952-GT4-305

Unavailable

4

CUP SET, FUEL STRAINER

16953-GT4-305

$24.18

5

O-RING (9.0X1.3)

16958-397-771

$5.30

6

FILTER, CUP

16959-471-831

$9.35

7

TANK, FUEL

17510-GT4-711

Unavailable

8

RUBBER, FR. TANK STAY

17512-GS9-000

$10.69

9

LEVER, FUEL PETCOCK

17512-GT4-710

Unavailable

10

RUBBER, PROTECTOR

17521-HA7-670

$4.19

11

CUSHION, RR. FUEL TANK

17613-168-000

Unavailable

12

CAP, FUEL FILLER This part replaces 17620-GT4-691.

17620-GT4-692

Unavailable

13

GROMMET A, SIDE COVER

19902-865-780

$4.28

14

MARK, CAUTION (NOT AVAILABLE)

87208-NC2-000

Unavailable

15

LABEL, CAUTION

87560-357-671

$9.21

16

BOLT, SOCKET (4X23)

90074-ML7-920

$1.98

17

WASHER (8MM)

90501-819-000

$1.49

18

SCREW, PAN (4X8)

93500-04008-0G

$1.49

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

WASHER, SPRING (4MM)

94111-04700

Unavailable

21

BULK HOSE, FUEL (4.5X3000) (4.5X1000)

95001-45003-60M

$36.67

22

CLIP, TUBE (B8)

95002-02080

$1.80
