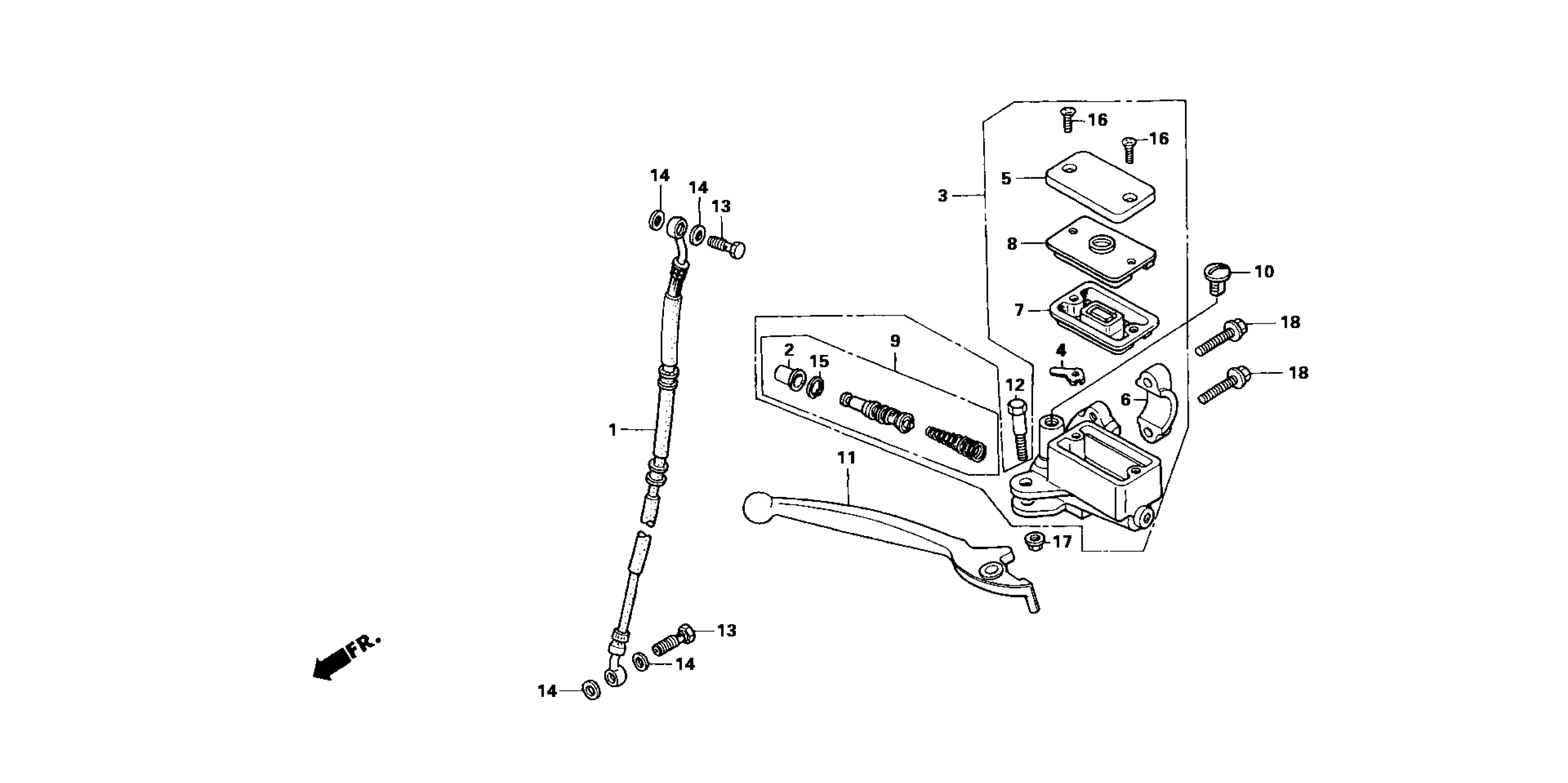

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45126-NLA-003

$73.93

BOOT

45504-410-003

$10.93

SUB-ASSY., FR. MASTER CYLINDER

45510-NLA-710

Unavailable

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

MASTER CYLINDER SET

45530-471-831

Unavailable

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.26

LEVER, R. HANDLEBAR

53175-GW2-013

$20.38

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
