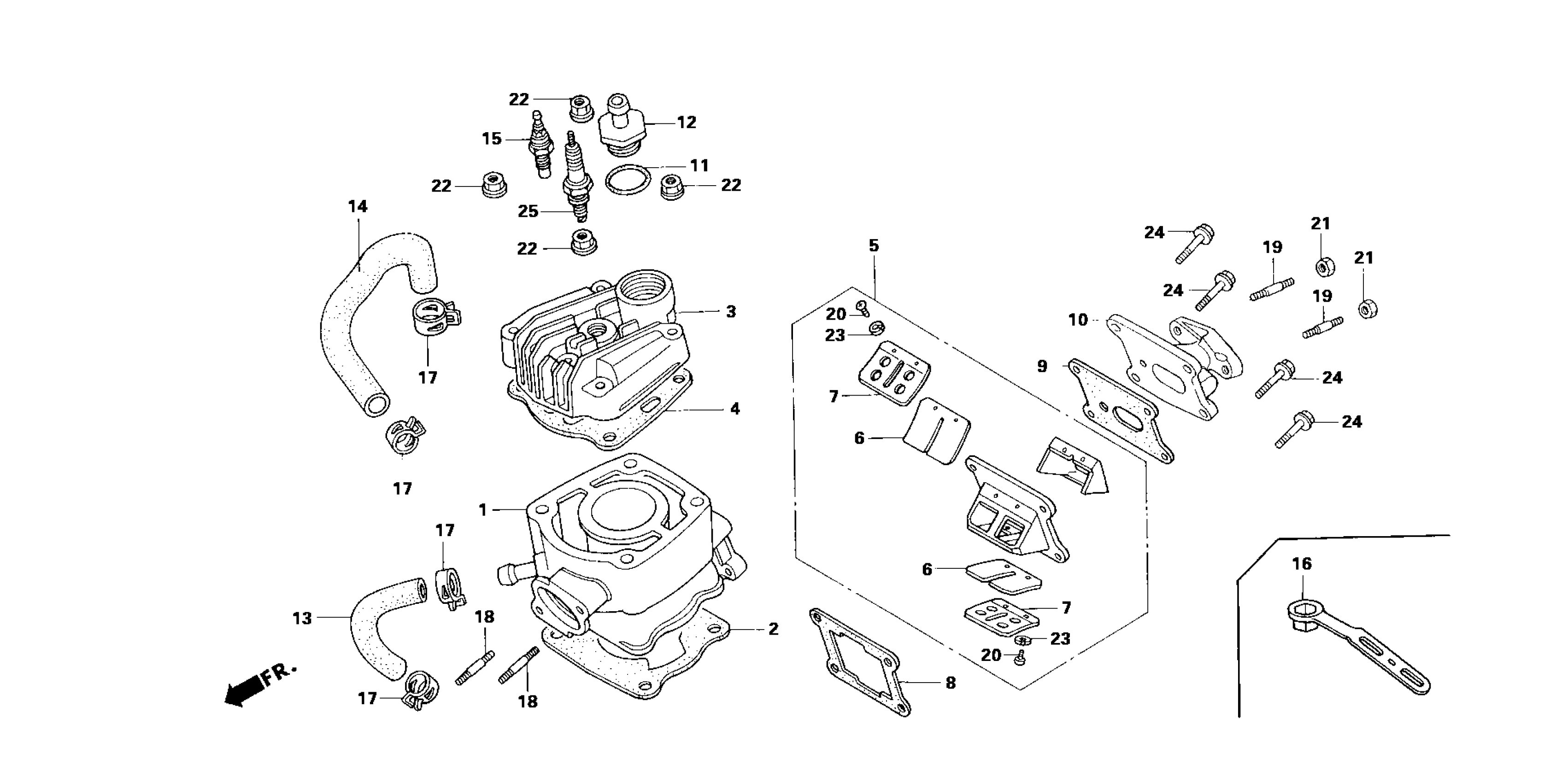

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER A (CODE A)

12110-GT4-970

Unavailable

1

CYLINDER A (CODE A) This part replaces 12120-GT4-970.

12110-GT4-970

Unavailable

1

CYLINDER A (CODE A) This part replaces 12130-GT4-970.

12110-GT4-970

Unavailable

2

GASKET, CYLINDER

12191-NLA-700

Unavailable

3

CYLINDER HEAD

12200-GT4-970

$119.34

4

GASKET, CYLINDER HEAD

12251-GAA-003

$17.85

5

VALVE, REED

14100-GT4-003

Unavailable

6

REED VALVE ONLY

14111-GT4-003

Unavailable

7

STOPPER, REED VALVE

14121-GE2-004

Unavailable

8

GASKET, REED VALVE This part replaces 14132-GAA-000.

14132-GT4-711

Unavailable

9

GASKET B, REED VALVE This part replaces 14133-GAA-000.

14133-GT4-711

Unavailable

10

PIPE, INLET

17101-NLA-700

Unavailable

11

O-RING (27.4X2.4) (ARAI) This part replaces 19310-GE2-000.

91302-567-003

$7.96

12

COVER, THERMOSTAT This part replaces 19315-GT4-000.

19315-GY8-900

$22.10

13

HOSE A, WATER

19501-GT4-000

Unavailable

14

HOSE B, WATER

19502-GT4-000

$10.74

15

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

16

WRENCH, PLUG A

89216-KM9-000

Unavailable

17

CLAMP, CANISTER HOSE

90682-SB0-671

$9.93

18

BOLT, STUD (8X22)

92900-08022-1B

$2.13

19

BOLT, STUD (6X25)

90032-399-000

$2.34

20

SCREW, PAN (3X6)

93500-03006-0H

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49

23

WASHER, SPRING (3MM)

94111-03000

$1.49

24

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

25

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59816.

98079-59847

$2.44

25

SPARK PLUG (BR9ES) (NGK)

98079-59847

$2.44

25

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59847-01.

98079-59847

$2.44
