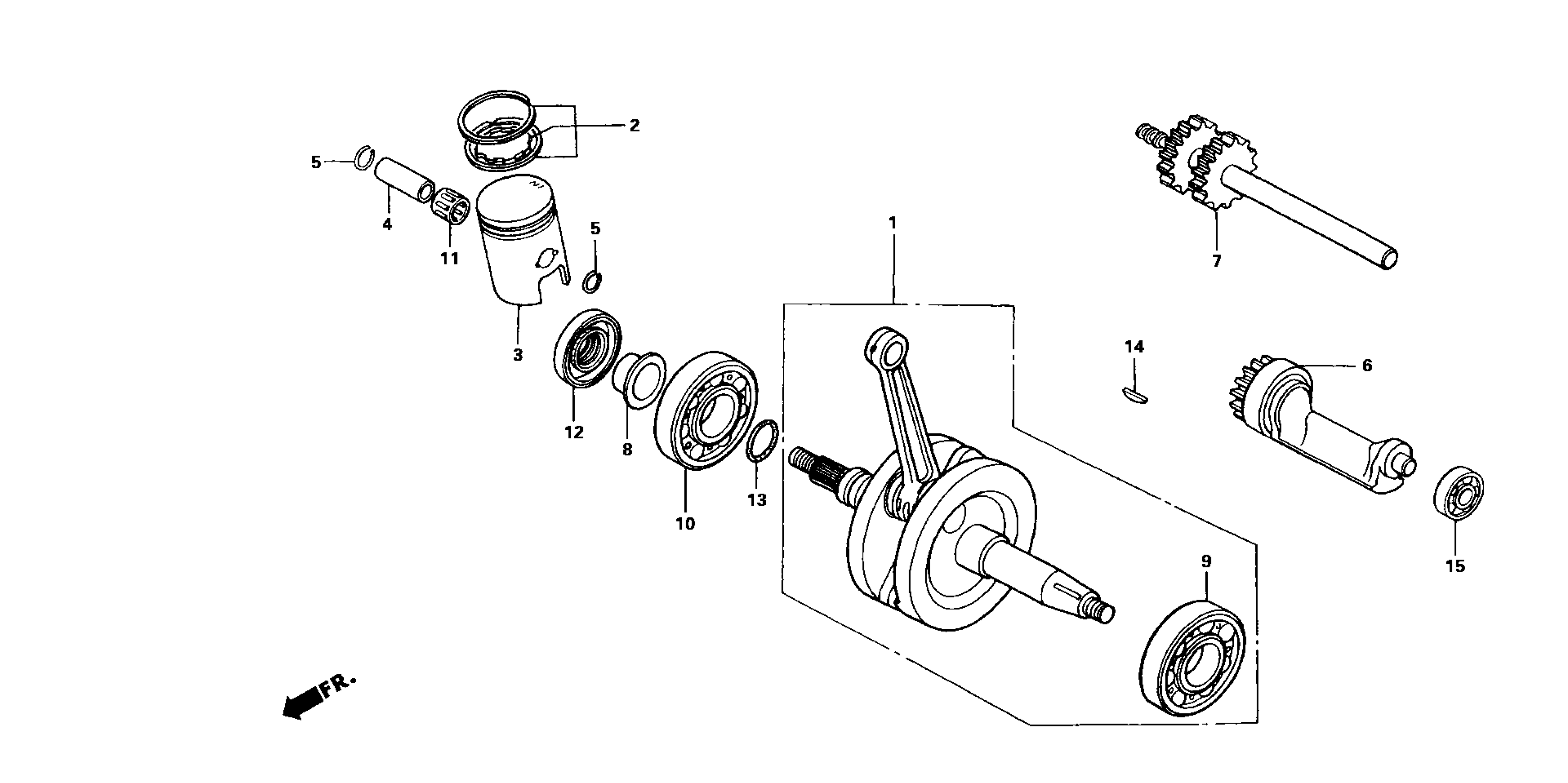

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-GT4-690

Unavailable

RING SET, PISTON (STD) (RIKEN)

13011-GE2-305

Unavailable

PISTON A

13110-GE2-505

Unavailable

PISTON A This part replaces 13110-GE2-890.

13110-GE2-505

Unavailable

PISTON B

13120-GE2-505

$38.72

PISTON B This part replaces 13120-GE2-890.

13120-GE2-505

$38.72

PISTON C

13130-GE2-505

Unavailable

PISTON C This part replaces 13130-GE2-890.

13130-GE2-505

Unavailable

PIN, PISTON

13111-GZ0-000

$13.23

CLIP, PISTON PIN (12MM)

13115-156-000

$2.92

SHAFT, BALANCER

13420-GE2-000

$134.07

SHAFT, BALANCER IDLE

13430-NLA-700

$221.03

COLLAR, DRIVE GEAR

13617-GE3-610

Unavailable

BEARING, RADIAL BALL (6205) (NTN)

91004-GE3-000

$31.84

BEARING, RADIAL BALL (6205)

91004-GT4-711

$12.74

BEARING, CONNECTING ROD SMALL END (THOMPSON)

91102-GC8-004

$14.67

OIL SEAL (28X40X8)

91206-GE3-611

$13.46

O-RING (18.5X1.8)

91354-GAS-901

$3.25

KEY, WOODRUFF (25X14)

94401-25140

$1.75

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
